Session 09 - Javascript, Part 2

Harvard Extension School
Spring 2022

Course Web Site: https://cscie12.dce.harvard.edu/

Topics

Presentation contains 17 slides

Javascript - What can you do?

Programmatic access to all aspects of your web page!

Manipulate classes and style properties
Manipulate content
Validate user input
Communicate with Web Server (XHR, Ajax)

Getting Started with JavaScript

MDN JavaScript
JS Reference (DevDocs)
W3Schools JavaScript
JavaScript for Web Designers, a short book available online through the Harvard Library.
Jennifer Robbins, 2018. Learning Web Design: A Beginner's Guide to HTML, CSS, JavaScript, and Web Graphics, 5th ed. O'Reilly Media. 500 p. ISBN 978-1491960202

JavaScript Review

JS in HTML. Including JavaScript in HTML with script element, with either src attribute or JS code.

<script src="scripts/site.js" ></script>

<script>
/* JS code here */
console.log('hello from JS!');
</script>

Variables. Declare variables with let and sometimes const.
Though you will see the older var, but avoid that.
You may also see const which declares a constant (a variable that won't be changed).
```
let courseName = 'CSCI E-12',
  courseTerm = 'Spring 2022',
  courseInstructor = 'David' ;
```
Console is your friend. Your browser developer tools will be critical to use, and especially the "Console". Log to the console in JS with
```
console.log('hello there!');
```
When is the code executed?script in head or right before the body close tag.
But it is good practice to rely on specific events, especially the DOMContentLoaded event!
The .addEventListener method takes two arguments. The first is the event name as a string, and the second is the function to execute when that event happens.
```
document.addEventListener('DOMContentLoaded', function(){
    /* here's where JS goes for when DOM is loaded */
    console.log('the DOM has been loaded and parsed!');
});
```
Events - many are user-driven such as click, focus, blur, submit, mouseover, mouseout, keypress.
And one important one happens when the browser has processed and loaded the HTML DOM — DOMContentLoaded.
Even listeners are added through JavaScript!
Functions. Functions can be named, and they can also be anonymous (unnamed) when setting event handlers. Functions can have arguements.
Named function that accepts an argument:
```
function square(x) {
  let numberSquared = x*x;
  return numberSquared;
}
```
Anonymous functions — function() {} — are often used in setting event listeners
```
document.addEventListener('DOMContentLoaded', function(){
  /* here's where JS goes for when DOM is loaded */
  console.log('the DOM has been loaded and parsed!');
});
```
JavaScript gives us ways to access the DOM as well as manipulate it! Some common ways of accessing the DOM are getElementById, querySelector, querySelectorAll as well as classList, classList.add, classList.remove, classList.toggle.
We can also construct content with methods like createElement, createTextNode, appendChild, and innerHTML

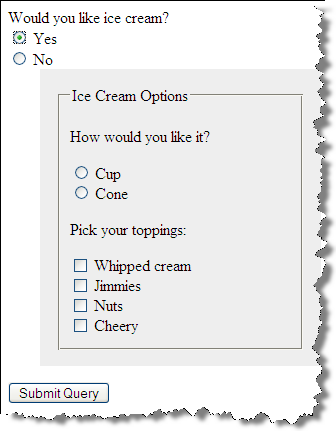

Ice Cream Options

ice cream options

Example 9.1 - Ice Cream Options - Example 9.1

<form method="post" name="ice_cream" id="ice_cream" action="https://cs12.net/form/submit.php" enctype="application/x-www-form-urlencoded"><div> Would you like ice cream?
          <label><input type="radio" name="want" id="ic_yes" value="yes"/>Yes</label><label><input type="radio" name="want" id="ic_no" value="no"/>No</label></div><fieldset id="icecream_options"><legend>Ice Cream Options</legend><p>Cup or a Cone?</p><label><input type="radio" id="container_cup" name="container" value="cup"/>Cup</label><label><input type="radio" id="container_cone" name="container" value="cone"/>Cone</label><p>Pick your toppings:</p><label><input type="checkbox" name="toppings" id="toppings_wc" value="whipcream"/>Whipped cream</label><label><input type="checkbox" name="toppings" id="toppings_jimmies" value="jimmies"/>Jimmies</label><label><input type="checkbox" name="toppings" id="toppings_sprinkles" value="sprinkles"/>Sprinkles</label><label><input type="checkbox" name="toppings" id="toppings_nuts" value="nuts"/>Nuts</label><label><input type="checkbox" name="toppings" id="toppings_cherry" value="cherry"/>Cherry</label></fieldset><button type="submit">Submit Order</button></form>

Markup
Style
Script


 <form method="post" name="ice_cream" id="ice_cream" action="https://cs12.net/form/submit.php">
   <div>Would you like ice cream?
     <label>
       <input type="radio" name="want" id="ic_yes" value="yes"/>
Yes     </label>
     <label>
       <input type="radio" name="want" id="ic_no" value="no"/>
No     </label>
   </div>
   <fieldset id="icecream_options">
     <legend>Ice Cream Options     </legend>
     <p>Cup or a Cone?
     </p>
     <label>
       <input type="radio" id="container_cup" name="container" value="cup"/>
Cup     </label>
     <label>
       <input type="radio" id="container_cone" name="container" value="cone"/>
Cone     </label>
     <p>Pick your toppings:
     </p>
     <label>
       <input type="checkbox" name="toppings" id="toppings_wc" value="whipcream"/>
Whipped cream     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_jimmies" value="jimmies"/>
Jimmies     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_sprinkles" value="sprinkles"/>
Sprinkles     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_nuts" value="nuts"/>
Nuts     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_cherry" value="cherry"/>
Cherry     </label>   </fieldset>
   <button type="submit">Submit Order   </button>
 </form>

In style element (<style>) within head element:

#icecream_options {  background-color: rgb(238, 238, 238);
  padding: 1rem;
  margin-top: 1rem;
  display: block;
} #icecream_options.hide { display: none; }
label { display: block; }

In script element within head element (<script>):


document.addEventListener("DOMContentLoaded", function() {
  console.log('dom is loaded!');
   let icOptions = document.getElementById('icecream_options');
   console.log(icOptions);

   icOptions.classList.add('hide');

   let yesRadio = document.getElementById('ic_yes');

   yesRadio.addEventListener('click', function(){
       /* remove "hide" class from icecream_options */
       if (yesRadio.checked == true) {
           icOptions.classList.remove('hide');
       }
   });

   let noRadio = document.getElementById('ic_no');
   noRadio.addEventListener('click',function(){
       /* add 'hide' class */
       if (noRadio.checked == true) {
           icOptions.classList.add('hide');
       }
   });
});

}

JS Data Structures - array and "object" (key/value pair)

array Example:


                ['Autumn', 'Winter', 'Spring', 'Summer']

object Examples:

Simple "name/value" pairs:


                {
                  "lastName" : "Bacow",
                  "firstName" : "Lawrence",
                  "email" : "president@harvard.edu"
                }

"name/value" pairs, with values being an array (list) of things:


                {
                  "apples" : ['Macoun','Empire','Honey Crisp','Albemarle Pippin'],
                  "oranges" : ['Naval Orange','Tangelo','Clementine','Valencia Orange']
                }

Loops and Iteration

let oranges = ['Naval Orange','Tangelo','Clementine','Valencia Orange'];
/* Iterate with for..of */
console.log("Iterate with: item of array");
for (const myorange of oranges) {
   console.log(myorange);
}
console.log("DONE!");

/* Iterate with 'classic' for (i = 0 ; i < LENGTH ; i++) */
console.log("Iterate with classic for i = ;  < ; i++");
for (let i = 0; i < oranges.length; i++ ) {
   console.log(i);
   console.log(oranges[i]);
}
console.log("DONE!");

/* Iterate with '.forEach()' */
console.log("Iterate with forEach()");
oranges.forEach(function(myorange){
  console.log(myorange);
});
console.log("DONE!");

querySelector and querySelectorAll

Both take "CSS style" selectors.
querySelector returns only the first match
querySelectorAll returns a list of items (even if it is a list of zero or one -- it returns a list!).

Let's Improve on the Ice Cream Example

Progressive Enhancement with JS. Good news! We are already doing 'progressive enhancement' and using JavaScript to set things up (using JS to "hide" the options when the page loads). If, for some reason, JS is broken, then the whole form will be displayed and can be used.
DRY (Don't Repeat Yourself) — use loops! Instead of selecting input elements separately and adding 'click' listener to each one as well as the logic of showing or hiding options, can we select the input elements and loop through them?
DRY (Don't Repeat Yourself) — use functions!

Ice Cream Options - select and add click listener improvements

Markup and CSS are the same.
JS is a bit different in how we select the input radio buttons to add the click handler. We get to use querySelectorAll() method that let's us select elements using "CSS selector" syntax! Yay! This is often easier than selecting with other DOM methods.
JS function of iceCreamOptionsDisplay remains the same!

Starting Point

document.addEventListener('DOMContentLoaded',function(){
    console.log('dom is loaded!');
    let icOptions = document.getElementById('icecream_options');
    console.log(icOptions);

    icOptions.classList.add('hide');

    let yesRadio = document.getElementById('ic_yes');
    yesRadio.addEventListener('click', function(){
        /* remove "hide" class from icecream_options */
        if (yesRadio.checked == true) {
            icOptions.classList.remove('hide');
        }
    });

    let noRadio = document.getElementById('ic_no');
    noRadio.addEventListener('click',function(){
        /* add 'hide' class */
        if (noRadio.checked == true) {
            icOptions.classList.add('hide');
        }
    });

})

Using querySelectorAll and iterate through the list

/* use querySelectorAll and then loop
  through the list using "for (item in list) { }"
  */
inputsWant = document.querySelectorAll("form input[name=want]");
console.log(inputsWant);
for (let input of inputsWant) {
  console.log(input);
  input.addEventListener("click", function(){...});
}

Example 9.2 - Ice Cream Options - Example 9.2

<h3>Ice Cream</h3><form method="post" name="ice_cream" id="ice_cream" action="https://cs12.net/form/submit.php" enctype="application/x-www-form-urlencoded"><div> Would you like ice cream?
              <label><input type="radio" name="want" id="ic_yes" value="yes"/>Yes</label><label><input type="radio" name="want" id="ic_no" value="no"/>No</label></div><fieldset id="icecream_options"><legend>Ice Cream Options</legend><p>Cup or a Cone?</p><label><input type="radio" id="container_cup" name="container" value="cup"/>Cup</label><label><input type="radio" id="container_cone" name="container" value="cone"/>Cone</label><p>Pick your toppings:</p><label><input type="checkbox" name="toppings" id="toppings_wc" value="whipcream"/>Whipped cream</label><label><input type="checkbox" name="toppings" id="toppings_jimmies" value="jimmies"/>Jimmies</label><label><input type="checkbox" name="toppings" id="toppings_sprinkles" value="sprinkles"/>Sprinkles</label><label><input type="checkbox" name="toppings" id="toppings_nuts" value="nuts"/>Nuts</label><label><input type="checkbox" name="toppings" id="toppings_cherry" value="cherry"/>Cherry</label></fieldset><p><input type="submit"/></p></form>

Markup
Style
Script


 <h3>Ice Cream </h3>
 <form method="post" name="ice_cream" id="ice_cream" action="https://cs12.net/form/submit.php">
   <div>Would you like ice cream?
     <label>
       <input type="radio" name="want" id="ic_yes" value="yes"/>
Yes     </label>
     <label>
       <input type="radio" name="want" id="ic_no" value="no"/>
No     </label>
   </div>
   <fieldset id="icecream_options">
     <legend>Ice Cream Options     </legend>
     <p>Cup or a Cone?
     </p>
     <label>
       <input type="radio" id="container_cup" name="container" value="cup"/>
Cup     </label>
     <label>
       <input type="radio" id="container_cone" name="container" value="cone"/>
Cone     </label>
     <p>Pick your toppings:
     </p>
     <label>
       <input type="checkbox" name="toppings" id="toppings_wc" value="whipcream"/>
Whipped cream     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_jimmies" value="jimmies"/>
Jimmies     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_sprinkles" value="sprinkles"/>
Sprinkles     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_nuts" value="nuts"/>
Nuts     </label>
     <label>
       <input type="checkbox" name="toppings" id="toppings_cherry" value="cherry"/>
Cherry     </label>   </fieldset>
   <p>
     <input type="submit"/>

   </p>
 </form>

In style element (<style>) within head element:


body {font-family: Calibri,Tahoma,Verdana,Helvetica,sans-serif;}
label { display: block;}

input[type=submit] {display: block; margin-top: 1rem;}

#icecream_options {
  display: block;
  background-color: rgb(238, 238, 238);
  margin-left: 1em;
}
#icecream_options.hide {
  display: none;
}

In script element within head element (<script>):


"use strict";

let inputsWant;
console.log("hello from ice_cream.js");

document.addEventListener("DOMContentLoaded", function () {
  /* here's where JS goes for when DOM is loaded */
  /* add click listener to yes and no input choices
     use "querySelectorAll", which lets us use CSS selectors!
     querySelectorAll returns a list of things that we can
     loop through via 'for ( item of list ) { }'
     */
  inputsWant = document.querySelectorAll("form input[name=want]");
  console.log(inputsWant);
  for (let input of inputsWant) {
    console.log(input);
    input.addEventListener("click", iceCreamOptionsDisplay);
  }
});

function iceCreamOptionsDisplay() {
  let icoEl, radioYes;
  console.log("in iceCreamOptionsDisplay");
  icoEl = document.getElementById("icecream_options");
  console.log(icoEl);
  radioYes = document.getElementById("ic_yes");
  if (radioYes.checked == true) {
    icoEl.classList.remove('hide');
  } else {
    icoEl.classList.add('hide');
  }
}

Javascript and DOM: Building Content

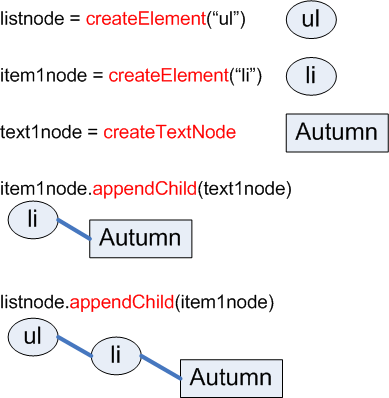

DOM create nodes

And do the same for the other three seasons to get:
DOM create nodes

Javascript and DOM: Building Content

Example 9.3 - Example 9.3

function makeSeasonsList() {
  let ul_node = document.createElement("ul");

/* Autumn */
  let li_node1 = document.createElement("li");
  let li_text1 = document.createTextNode("Autumn");
  li_node1.appendChild(li_text1);

/* Winter */
  let li_node2 = document.createElement("li");
  let li_text2 = document.createTextNode("Winter");
  li_node2.appendChild(li_text2);

/* Spring */
  let li_node3 = document.createElement("li");
  let li_text3 = document.createTextNode("Spring");
  li_node3.appendChild(li_text3);

/* Summer */
  let li_node4 = document.createElement("li");
  let li_text4 = document.createTextNode("Summer");
  li_node4.appendChild(li_text4);

/* Append the list items to the ul */
  ul_node.appendChild(li_node1);
  ul_node.appendChild(li_node2);
  ul_node.appendChild(li_node3);
  ul_node.appendChild(li_node4);

/* Place on page */
  let container = document.getElementById("seasonslist1");
  container.appendChild(ul_node);
}

/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

Markup
Script


 <p>
   <button id="makelist" type="submit">Build List of Seasons   </button>
 </p>
 <div id="seasonslist1">
 </div>

In script element within head element (<script>):

function makeSeasonsList() {
  let ul_node = document.createElement("ul");

  /* Autumn */
  let li_node1 = document.createElement("li");
  let li_text1 = document.createTextNode("Autumn");
  li_node1.appendChild(li_text1);

  /* Winter */
  let li_node2 = document.createElement("li");
  let li_text2 = document.createTextNode("Winter");
  li_node2.appendChild(li_text2);

  /* Spring */
  let li_node3 = document.createElement("li");
  let li_text3 = document.createTextNode("Spring");
  li_node3.appendChild(li_text3);

  /* Summer */
  let li_node4 = document.createElement("li");
  let li_text4 = document.createTextNode("Summer");
  li_node4.appendChild(li_text4);

  /* Append the list items to the ul */
  ul_node.appendChild(li_node1);
  ul_node.appendChild(li_node2);
  ul_node.appendChild(li_node3);
  ul_node.appendChild(li_node4);

  /* Place on page */
  let container = document.getElementById("seasonslist1");
  container.appendChild(ul_node);
}

/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

Javascript and DOM: Building Content

Using an array (a list).

let seasons = ['Spring', 'Summer', 'Autumn', 'Winter'];

Iterate through Array

Example 9.4 - Example 9.4 | JavaScript example4.js

Markup
Script


 <p>
   <button id="makelist" type="submit">Build List of Seasons   </button>
 </p>
 <div id="seasonslist2">
 </div>

In head element:

<script src="example4.js"> </script>

Contents of example4.js

function makeSeasonsList() {
ul_node = document.createElement("ul");
let seasons = ['Spring', 'Summer', 'Autumn', 'Winter'];
for (let i = 0 ; i < seasons.length ; i++ ) {
  let mytext = i + " " + seasons[i];
  let text_node = document.createTextNode(mytext);
  let li_node = document.createElement("li");
  li_node.appendChild(text_node);
  ul_node.appendChild(li_node);
};
let container = document.getElementById("seasonslist2");
container.appendChild(ul_node);
}
/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

Using forEach array method

Example 9.5 - Example 9.5 | JavaScript example5.js

Markup
Script


 <p>
   <button id="makelist" type="submit">Build List of Seasons   </button>
 </p>
 <div id="seasonslist3">
 </div>

In head element:

<script src="example5.js"> </script>

Contents of example5.js

function makeSeasonsList() {
  ul_node = document.createElement("ul");
  let seasons = ['Spring', 'Summer', 'Autumn', 'Winter'];
  seasons.forEach(function(s){
    let text_node = document.createTextNode(s);
    let li_node = document.createElement("li");
    li_node.appendChild(text_node);
    ul_node.appendChild(li_node);
  });
  let container = document.getElementById("seasonslist3");
  container.appendChild(ul_node);
}

/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

DOM methods vs innerHTML

With DOM methods, we are creating nodes
With innerHTML we are getting are setting the HTML string values.

Working with Key/Value objects and Arrays

Data:

{
  "apples" : ['Macoun','Empire','Honey Crisp','Albemarle Pippin'],
  "oranges" : ['Naval Orange','Tangelo','Clementine','Valencia Orange']
}

Example 9.6 - Example 9.6

Markup
Script


 <h1>List of Fruits from Data </h1>
 <div id="fruits"><!-- list goes here -->
 </div>

In script element within head element (<script>):

"use strict";

let fruits = {
    "apples": ['Macoun', 'Empire', 'Honey Crisp', 'Albemarle Pippin'],
    "oranges": ['Naval Orange', 'Tangelo', 'Clementine', 'Valencia Orange']
};
document.addEventListener('DOMContentLoaded',function(){
    buildFruitList();
});

function buildFruitList(){
    let fruitList = document.createElement('ul');
    for (const f in fruits) {
        console.log(f);
        let li = document.createElement('li');
        li.appendChild(document.createTextNode(f));
        if (Array.isArray(fruits[f])) {
            console.log(fruits[f]);
            let itemList = document.createElement('ul');
            for (const item of fruits[f]) {
                let li = document.createElement('li');
                li.appendChild(document.createTextNode(item));
                itemList.appendChild(li);
            }
            li.appendChild(itemList);
        }
        fruitList.appendChild(li);
    }
    document.getElementById('fruits').appendChild(fruitList);
}

JavaScript:

"use strict";

let fruits = {
    "apples": ['Macoun', 'Empire', 'Honey Crisp', 'Albemarle Pippin'],
    "oranges": ['Naval Orange', 'Tangelo', 'Clementine', 'Valencia Orange']
};
document.addEventListener('DOMContentLoaded',function(){
    buildFruitList();
});

function buildFruitList(){
    let fruitList = document.createElement('ul');
    for (const f in fruits) {
        console.log(f);
        let li = document.createElement('li');
        li.appendChild(document.createTextNode(f));
        if (Array.isArray(fruits[f])) {
            console.log(fruits[f]);
            let itemList = document.createElement('ul');
            for (const item of fruits[f]) {
                let li = document.createElement('li');
                li.appendChild(document.createTextNode(item));
                itemList.appendChild(li);
            }
            li.appendChild(itemList);
        }
        fruitList.appendChild(li);
    }
    document.getElementById('fruits').appendChild(fruitList);
}

Responsive Navigation

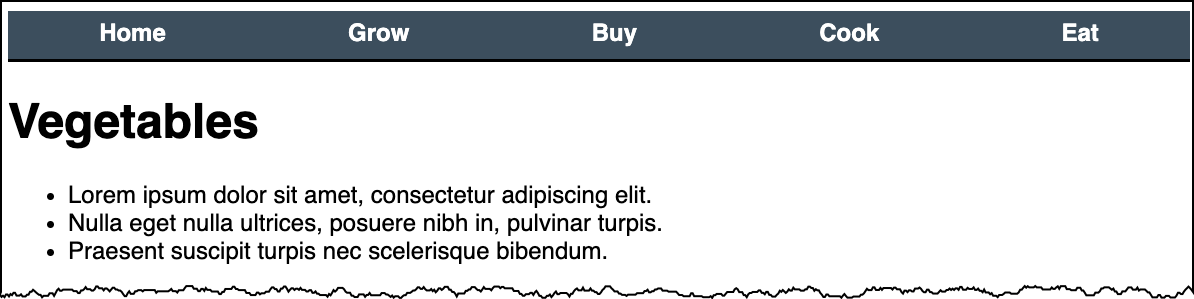

Horizontal menu when wide screen

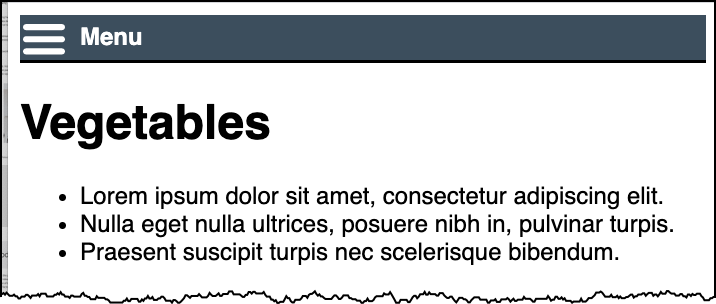

Collapsed menu when small screenshot

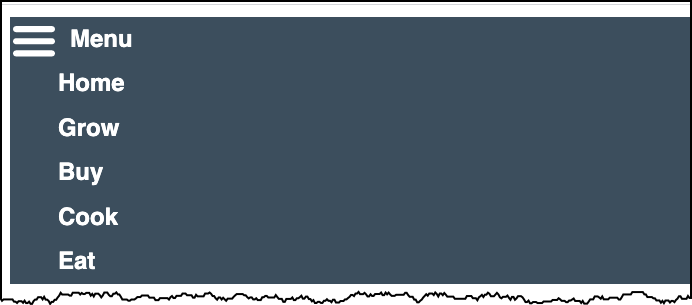

toggle of display of expanded menu

Responsive Navigation

CSS to set initial state of navigation, for smaller widths and larger width screens.
For small screen:
- set 'click' event that will toggle the menu state
- add or remove (i.e. 'toggle') a class that controls hidden or expanded.
