Session 04 - CSS, Part 2

Harvard Extension School
Fall 2021

Course Web Site: https://cscie12.dce.harvard.edu/

Topics

  1. Anatomy of a CSS Rule
  2. Box Model or Block Model
  3. CSS Selectors
  4. CSS Best Practices
  5. CSS Rules and Specificity
  6. CSS Colors
  7. Lists
  8. Fonts
  9. CSS Flexbox and Grid
  10. CSS Flexbox
  11. Float

Session 04 - CSS, Part 2, slide1
Anatomy of a CSS Rule, slide2
CSS Mechanics - Binding Styles to Markup, slide3
Box Model or Block Model, slide4
Use "Inspect" to turn your browser into a web development tool!, slide5
CSS Selectors, slide6
Pseudo-Classes and Elements, slide7
Link Pseudo Classes, slide8
CSS Best Practices, slide9
CSS Rules and Specificity, slide10
CSS Selector Specificity, slide11
CSS Colors, slide12
RGB Color Space, slide13
HSL Color Space, slide14
Colorpicker, slide15
Colors — Exploring Colors and Themes and Palettes, slide16
Lists, slide17
Lists with different "markers", slide18
Lists that don't look like lists, slide19
Horizontal navigation: A more complete example, slide20
Horizontal Navigation - another example, slide21
Fonts, slide22
Font - Include through link element, slide23
Font Pairing, slide24
Font Resources, slide25

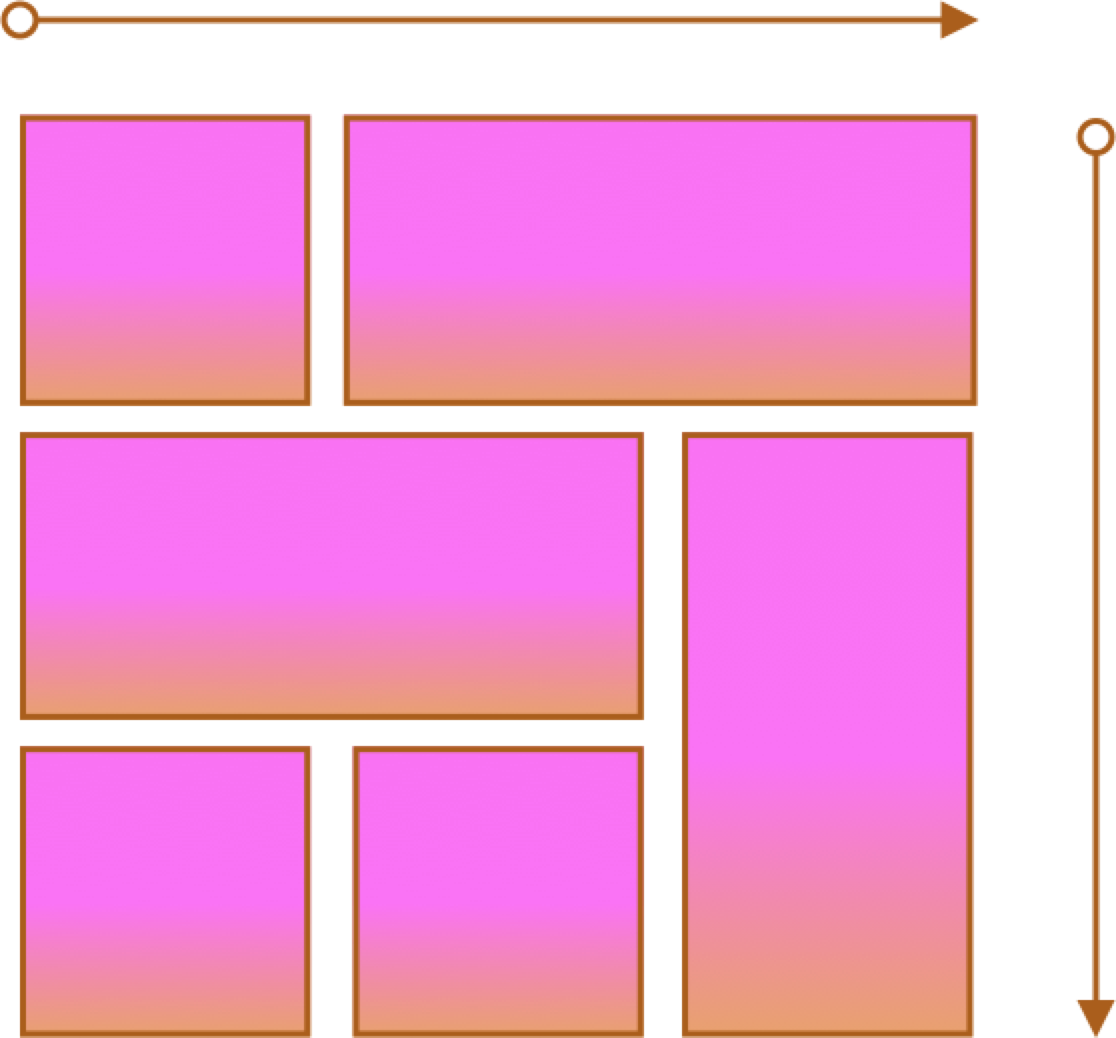

CSS Flexbox and Grid, slide26
CSS Flexbox, slide27
flex-basis, slide28
flex-grow and flex-shrink, slide29
Flex and Wrap, slide30
Flex and Simple Layouts, slide31

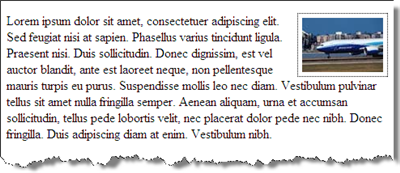

Float, slide32
Float, slide33
Float, slide34
Backgrounds - text replacement with an image, slide35

Presentation contains 35 slides

Anatomy of a CSS Rule

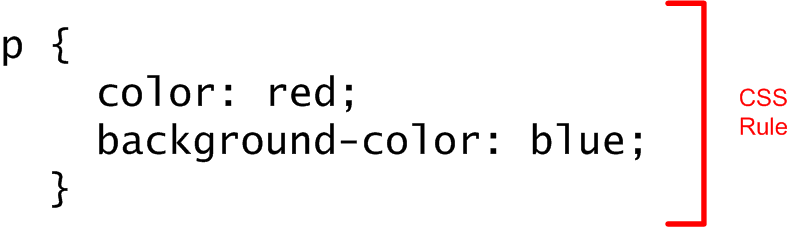

CSS Rule

css rule

Selector and Declarations

css selector and declarations

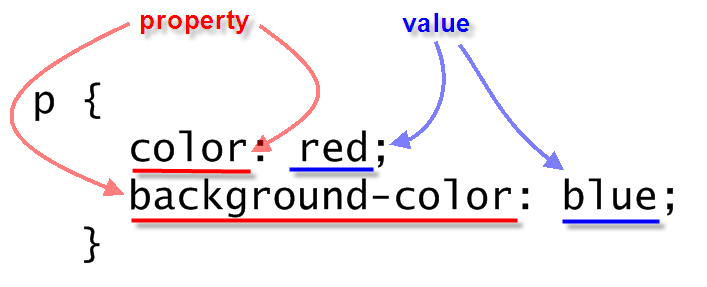

Properties and Values

css property and value

CSS Mechanics - Binding Styles to Markup

Three ways to bind CSS rules to HTML markup:

Box Model or Block Model

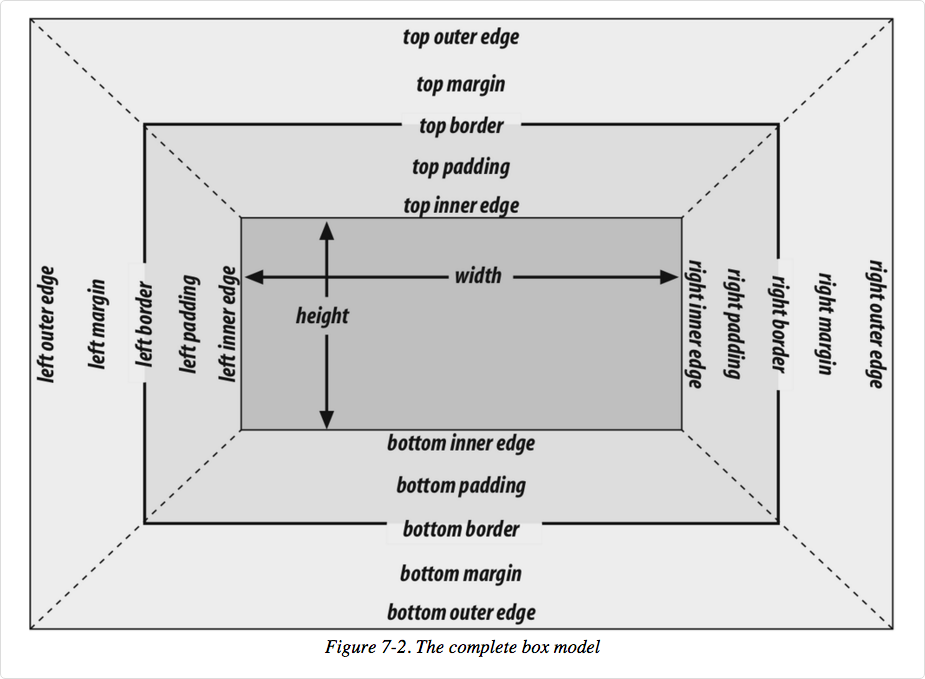

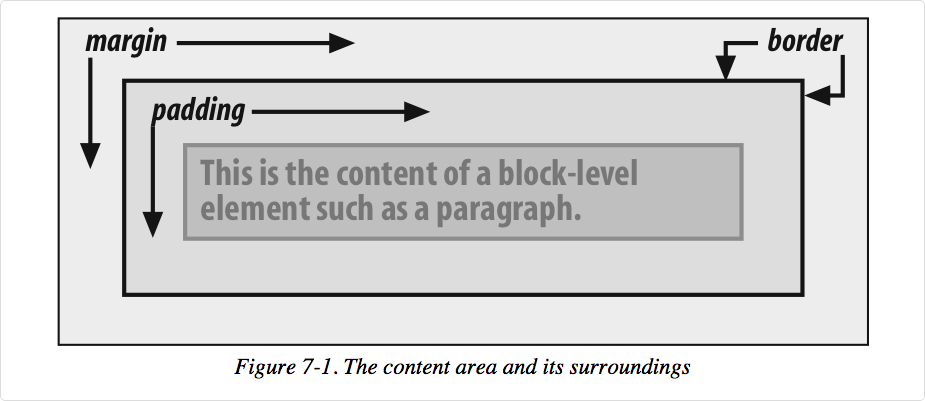

Box Model Illustration from CSS:  The Definitive Guide by Eric Meyer

A more detailed look:

Box Model Illustration from CSS:  The Definitive Guide by Eric Meyer

Image from Cascading Style Sheets: The Definitive Guide, 3rd ed by Eric Meyer, published by O'Reilly

Use "Inspect" to turn your browser into a web development tool!

Example 4.1 - Margin, Padding, Border - Example 4.1

 <aside>Drafted by Thomas Jefferson between June 11 and June 28, 1776, the Declaration of Independence was ratified by the Continental Congress on July 4 in Philadelphia, Pennsylvania. </aside>
 <p>We hold these truths to be self-evident, that all men are created equal, that they are endowed by their Creator with certain unalienable Rights, that among these are Life, Liberty, and the pursuit of Happiness. That to secure these rights, Governments are instituted among Men, deriving their just powers from the consent of the governed. That whenever any Form of Government becomes destructive of these ends, it is the Right of the People to alter or to abolish it, and to institute new Government, laying its foundation on such principles and organizing its powers in such form, as to them shall seem most likely to effect their Safety and Happiness.
 </p>

In style element (<style>) within head element:

aside {
        width: 33%;
        text-align: left;
        font-size: 0.75em;
        color: #006600;
        background-color: #fefecd;
        padding: 0.5em;
        margin: 0.75em;
        border-width: thin;
        border-style: dotted;
        border-color: #900;
        float: right;
        font-size: 16pt;
       }
p {
       font-size: 18pt;
       line-height: 1.5;
     }


CSS Selectors

CSS Comments

Note the use of comments in CSS -- they start with /* and end with */. Comments can be on a single line or multi-line.

p.vibrate {
        /* These paragraphs will vibrate off the page! */
        color: red;
        background-color: blue;
      }
      p.subtle {
        /* These paragraphs will
           be subtle and
           probably hard to read */
        color: white;
        background-color: gray;
      }

Pseudo-Classes and Elements

CSS defines pseudo-classes and pseudo-elements.
Examples are p::first-line, li:first-child, and input:focus

Pseudo-Classes (single ":")Pseudo-Elements (double "::")
  • first-child
  • link
  • visited
  • hover
  • active
  • focus
  • lang
  • first-line
  • first-letter
  • before
  • after

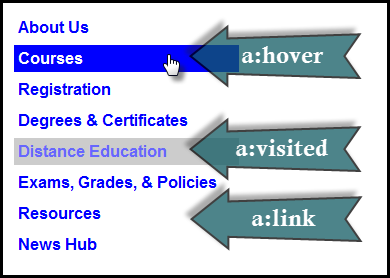

Link Pseudo Classes

Use the "link-visited-hover-active" or "LVHA" ordering (some like to remember this by "LoVe HAte").

Example 4.2 - a pseudo-classes (link, visited, hover, active)) - Example 4.2

 <nav class="site">
   <ul>
     <li>
       <a href="#about-us">About Us       </a>
     </li>
     <li>
       <a href="#courses">Courses       </a>
     </li>
     <li>
       <a href="#registration">Registration       </a>
     </li>
     <li>
       <a href="#degrees-certificates">Degrees & Certificates       </a>
     </li>
     <li>
       <a href="#distance-education">Distance Education       </a>
     </li>
     <li>
       <a href="#exams-grades-policies">Exams, Grades, & Policies       </a>
     </li>
     <li>
       <a href="#resources">Resources       </a>
     </li>
     <li>
       <a href="#news-hub">News Hub       </a>
     </li>   </ul> </nav>

In style element (<style>) within head element:

nav a:link {
          text-decoration: none;
          color: blue;
          background-color: white;
          }
      nav a:visited {
          text-decoration: none;
          color: #66f;            /* lighter blue */
          background-color: #ccc; /* grey */
      }
      nav a:hover {
          text-decoration: none;
          color: white;
          background-color: blue;
      }
      nav a:active {
          text-decoration: underline;
          color: red;
          background-color: yellow;
      }
      /**
        Some tweaks to make the list
          look more like a sidebar
          navigation.  Not important for
          to illustrate the
          a pseudo classes
      */
      nav.site ul { font-family: sans-serif; font-weight: bold; width: 25%; list-style: none;}
      a {margin: 0.25em; padding: 0.25em; display: block;}

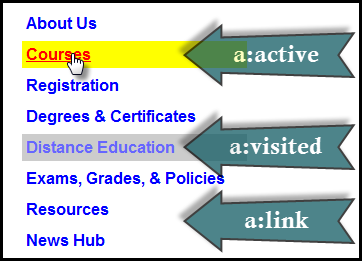

a pseudo classes default

a:hover

a:active

CSS Best Practices

Use semantic "class" and "id" values

You can choose class and id values when authoring your CSS and HTML. A good rule is to create "logical" class and id values and not "descriptive" ones. Remember, you've gone to the trouble of separating markup and presentation -- keep this separation when creating class names.

If you can guess how the class is styled based upon the name, this should cause you to consider changing the name.

Good Class/ID NamesPoor Class Names
  • pageheader
  • pagefooter
  • globalnav
  • gallery
  • aside
  • callout
  • warn
  • info
  • error
  • blueborder
  • rightcolumn
  • rightnav
  • thinborder
  • redbold
  • center

Choosing class and id names appropriately will help with:

CSS Rules and Specificity

See: Calculating a selector's specificity.

cascade
Image from Flickr user Cayusa, used under Creative Commons license.

Stylesheet Origin

Specificity of Selector

Order

CSS Selector Specificity

Specificity is expressed in a form of a list of four numbers: (a,b,c,d)

  1. inline style
  2. id
  3. class, pseudo-class and attributes
  4. element and pseudo-elements

Start comparing at "a", if equal go to "b", etc.


          nav li {...}                     /* (0,0,0,2) */
          nav.primary {...}                /* (0,0,1,1) */
          nav.primary li {...}             /* (0,0,1,2) */
          nav.primary li:first-child {...} /* (0,0,2,2) */
          nav.primary li.getinfo {...}     /* (0,0,2,2) */
          #globalnav {...}                 /* (0,1,0,0) */

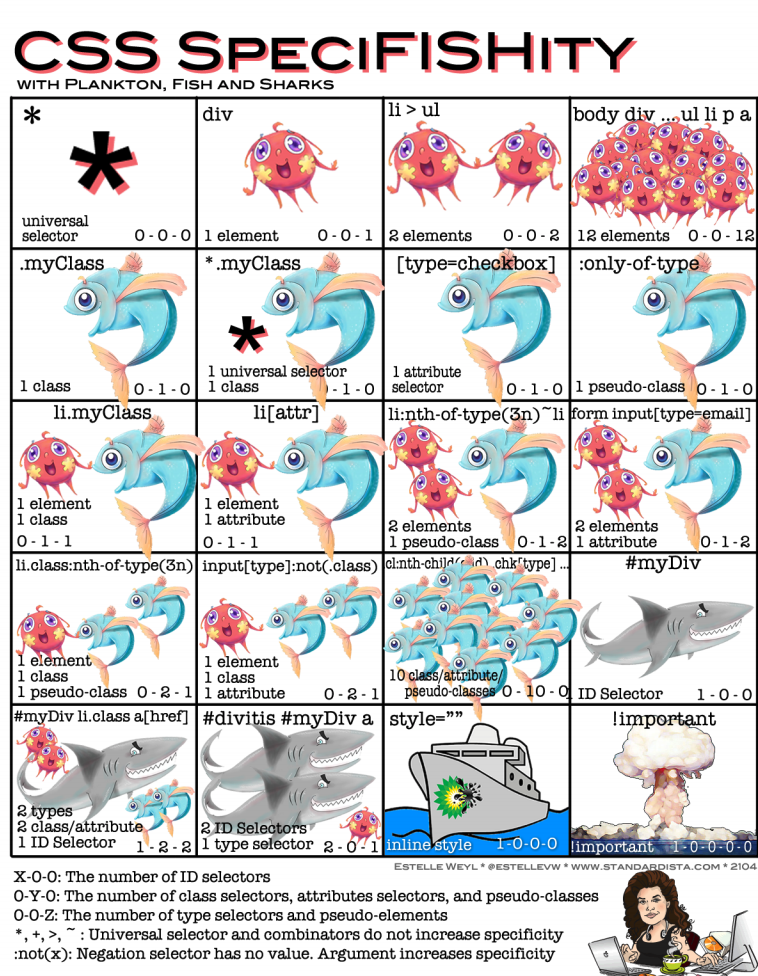

And for a fun take on CSS Specificity, take a look at CSS SpeciFISHity
CSS specifishity

CSS Colors

prism light refraction

Name

Some 'original' color names in HTML: aqua, black, blue, fuchsia, gray, green, lime, maroon, navy, olive, purple, red, silver, teal, white, yellow

There are also Extended Color Keywords for CSS3, which are the same as SVG 1.0 colors (SVG is a type of image file format).

See also: CSS Tricks: Named Colors and Hex Equivalents

But, in general, avoid colors for real work!

RGB Color Space

256 colors in each channel (Red, Green, Blue). Values can be

The following are all equivalent ways of defining a shade of (Tennessee) orange:

  • rgb(255,130,0)
  • rgb(100%,51%,0%)
  • #ff8200
    • ff = hexadecimal value for red
      82 = hexadecimal value for green
      00 = hexadecimal value for blue

Select Color:

Hex value:

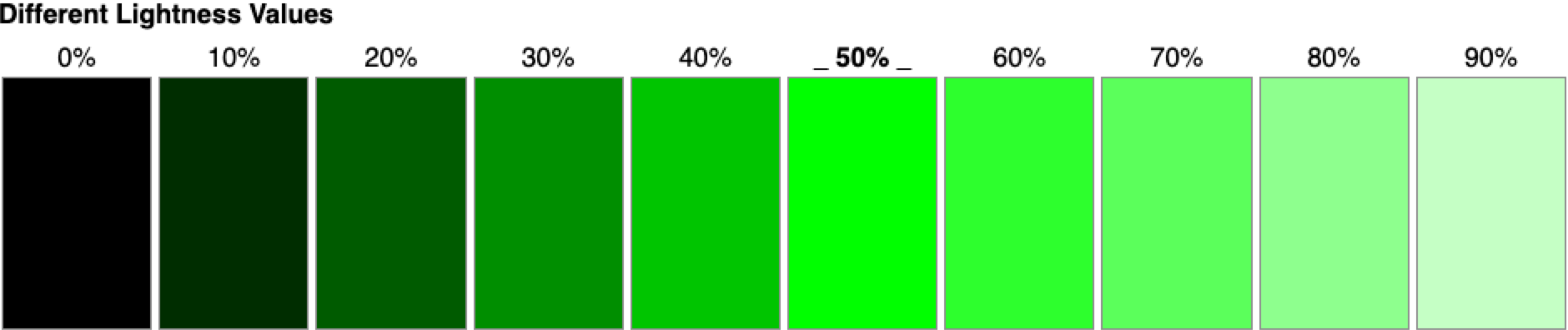

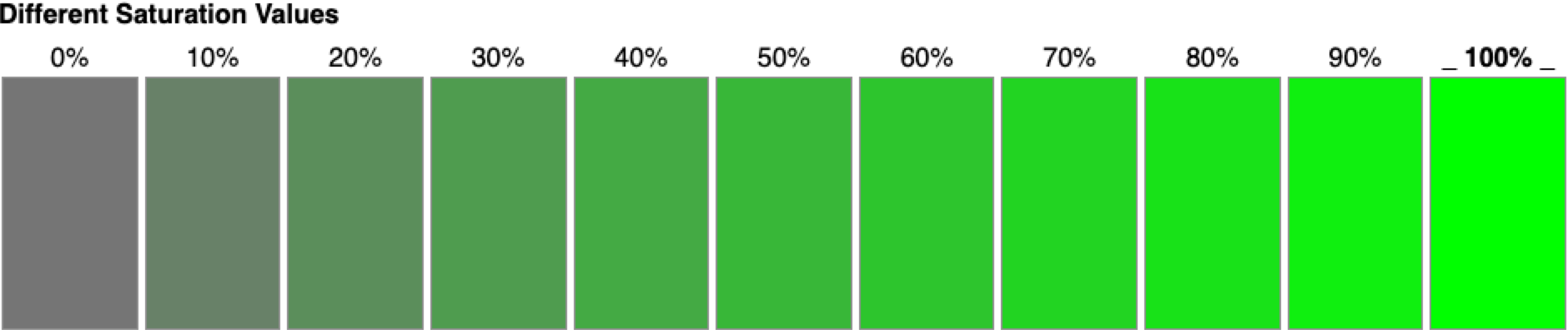

HSL Color Space

Hue, Saturation, Lightness (HSL) is another way to specify color value. It is based on a cylindrical model of color.

For more information see:

In CSS3, you can use HSL values (e.g. hsl(29,100%,66%))

Same Color, Expressed differently

Example 4.3 - Background Color - Example 4.3

 <div style="background-color: rgb(100%,66%,33%); padding: 1em; ; margin: 1em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
rgb(100%,66%,33%)
 </div>
 <div style="background-color: #ffa854; padding: 1em; margin: 1em; ">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
#ffa854
 </div>
 <div style="background-color: rgb(255,168,84); padding: 1em; ; margin: 1em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
rgb(255,168,84)
 </div>
 <div style="background-color: hsl(29,100%,66%); padding: 1em; ; margin: 1em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
hsl(29,100%,66%)
 </div>
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
rgb(100%,66%,33%)
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
#ffa854
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
rgb(255,168,84)
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
hsl(29,100%,66%)

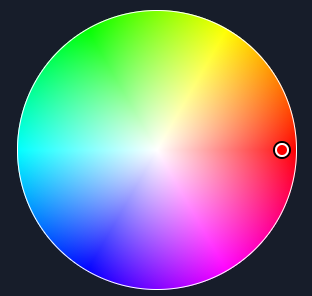

Colorpicker

Select Color:

Hex value:

Colorzilla

Colorzilla - colorpicker browser extension

Colors — Exploring Colors and Themes and Palettes

Lists

Ordered List

An ordered list (data from: http://fs.ncaa.org/Docs/stats/m_basketball_RB/2020/Coaches.pdf):

Example 4.4 - Ordered List: default - Example 4.4

 <strong>Winningest Active Coaches, Division I NCAA Men's Basketball </strong>
 <ol>
   <li>Mark Few
   </li>
   <li>Roy Williams
   </li>
   <li>John Calipari
   </li>
   <li>Mike Krzyzewski
   </li>
   <li>Bill Self
   </li>
   <li>Sean Miller
   </li>
   <li>Tony Bennett
   </li>
   <li>Ray Harper
   </li>
   <li>Tom Izzo
   </li>
   <li>Bruce Pearl
   </li>
 </ol>
Winningest Active Coaches, Division I NCAA Men's Basketball
  1. Mark Few
  2. Roy Williams
  3. John Calipari
  4. Mike Krzyzewski
  5. Bill Self
  6. Sean Miller
  7. Tony Bennett
  8. Ray Harper
  9. Tom Izzo
  10. Bruce Pearl


Ordered List

An ordered list:

Example 4.5 - Ordered List: upper-roman - Example 4.5

 <strong>Winningest Active Coaches, Division I NCAA Men's Basketball </strong>
 <ol class="basketball">
   <li>Mark Few
   </li>
   <li>Roy Williams
   </li>
   <li>John Calipari
   </li>
   <li>Mike Krzyzewski
   </li>
   <li>Bill Self
   </li>
   <li>Sean Miller
   </li>
   <li>Tony Bennett
   </li>
   <li>Ray Harper
   </li>
   <li>Tom Izzo
   </li>
   <li>Bruce Pearl
   </li>
 </ol>

In style element (<style>) within head element:

ol.basketball {
     list-style: upper-roman;
  }
Winningest Active Coaches, Division I NCAA Men's Basketball
  1. Mark Few
  2. Roy Williams
  3. John Calipari
  4. Mike Krzyzewski
  5. Bill Self
  6. Sean Miller
  7. Tony Bennett
  8. Ray Harper
  9. Tom Izzo
  10. Bruce Pearl


Lists with different "markers"

Content defined in CSS

An unordered list controlled by CSS, using "li:before":

Example 4.6 - List with unicode symbol before - Example 4.6

 <strong>Winningest Active Coaches, Division I NCAA Men's Basketball </strong>
 <ul class="bball">
   <li>Mark Few
   </li>
   <li>Roy Williams
   </li>
   <li>John Calipari
   </li>
   <li>Mike Krzyzewski
   </li>
   <li>Bill Self
   </li>
   <li>Sean Miller
   </li>
   <li>Tony Bennett
   </li>
   <li>Ray Harper
   </li>
   <li>Tom Izzo
   </li>
   <li>Bruce Pearl
   </li> </ul>

In style element (<style>) within head element:

ul.bball { list-style: none; }
    ul.bball li:before {
        content: '🏀   ';
    }
Winningest Active Coaches, Division I NCAA Men's Basketball
  • Mark Few
  • Roy Williams
  • John Calipari
  • Mike Krzyzewski
  • Bill Self
  • Sean Miller
  • Tony Bennett
  • Ray Harper
  • Tom Izzo
  • Bruce Pearl

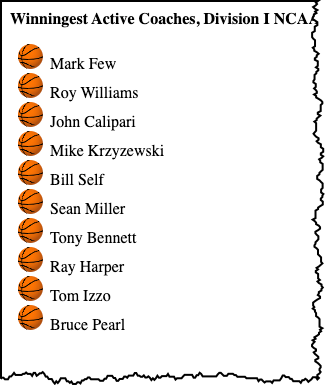

An image

And now, let's add a basketball icon as a list bullet (image is at images/basketball-icon25.png, basketball

list

An unordered list controlled by CSS:

Example 4.7 - List with images as bullets - Example 4.7

 <strong>Winningest Active Coaches, Division I NCAA Men's Basketball </strong>
 <ul class="basketball">
   <li>Mark Few
   </li>
   <li>Roy Williams
   </li>
   <li>John Calipari
   </li>
   <li>Mike Krzyzewski
   </li>
   <li>Bill Self
   </li>
   <li>Sean Miller
   </li>
   <li>Tony Bennett
   </li>
   <li>Ray Harper
   </li>
   <li>Tom Izzo
   </li>
   <li>Bruce Pearl
   </li> </ul>

In style element (<style>) within head element:

ul.basketball {
      list-style-image: url('images/basketball-icon25.png');
  }
Winningest Active Coaches, Division I NCAA Men's Basketball
  • Mark Few
  • Roy Williams
  • John Calipari
  • Mike Krzyzewski
  • Bill Self
  • Sean Miller
  • Tony Bennett
  • Ray Harper
  • Tom Izzo
  • Bruce Pearl


Lists that don't look like lists

list

Key points:

ul { list-style: none; }
li { display: inline; }

list-style: none

Example 4.8 - list-style: none; - Example 4.8

 <ul id="extglobalnav">
   <li>About
   </li>
   <li>Calendar
   </li>
   <li>Courses
   </li>
   <li>Contact Us
   </li>
   <li>Faculty Directory
   </li>
   <li>Login
   </li> </ul>

In style element (<style>) within head element:

ul#extglobalnav {
    list-style: none;
  }


list

li {display: inline;}

Example 4.9 - list-style: none; - Example 4.9

 <ul id="extglobalnav">
   <li>About
   </li>
   <li>Calendar
   </li>
   <li>Courses
   </li>
   <li>Contact Us
   </li>
   <li>Faculty Directory
   </li>
   <li>Login
   </li> </ul>

In style element (<style>) within head element:

ul#extglobalnav {
    list-style: none;
    padding-left: 0;
  }
  ul#extglobalnav li {
    display: inline;
    padding-left: 2em;
  }


list

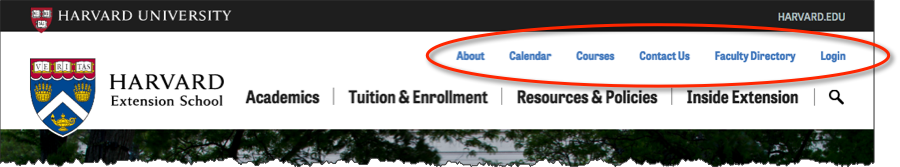

Horizontal navigation: A more complete example

Example 4.10 - list-style: none; - Example 4.10

 <nav>
   <ul id="extglobalnav">
     <li>
       <a href="#">About       </a>
     </li>
     <li>
       <a href="#">Calendar       </a>
     </li>
     <li>
       <a href="#">For Degree Candidates       </a>
     </li>
     <li>
       <a href="#">Courses       </a>
     </li>
     <li>
       <a href="#">Faculty Directory       </a>
     </li>
     <li class="login">
       <a href="#">Login       </a>
     </li>   </ul> </nav>

In style element (<style>) within head element:

#extglobalnav {
   list-style: none;
   padding-left: 0;
   float: right;
   margin-right: 2em;
   font-family: Arial Narrow, sans-serif;
  }
  #extglobalnav li {
   display: inline;
   padding-left: 2em;
   font-weight: bold;
  }
  #extglobalnav a:link,
  #extglobalnav a:visited,

  #extglobalnav a:active
  {
    color: #4d84c4;
    text-decoration: none;
  }
  #extglobalnav a:hover {
    text-decoration: underline;
    color: #990000;
  }
  #extglobalnav li.login {
    padding: 0.3em 1em;
    border: 3px solid #4d84c4;
    margin-left: 2em;
  }


list

Horizontal Navigation - another example

lists

Key points:

Example 4.11 - simple list - Example 4.11

 <ul>
   <li>Academics
   </li>
   <li>Tuition and Enrollment
   </li>
   <li>Resources and Policies
   </li>
   <li>Inside Extension
   </li> </ul>
  • Academics
  • Tuition and Enrollment
  • Resources and Policies
  • Inside Extension

Example 4.12 - inline list items - Example 4.12

 <nav>
   <ul id="extnav">
     <li>Academics
     </li>
     <li>Tuition and Enrollment
     </li>
     <li>Resources and Policies
     </li>
     <li>Inside Extension
     </li>   </ul> </nav>

In style element (<style>) within head element:

ul#extnav {
  list-style: none;
}
ul#extnav li {
  display: inline-block;
}


inline list items

Note the labeling of the current area of the site the user is in with the "active" class.

Example 4.13 - Inline List Items - Example 4.13

 <nav>
   <ul id="extnav">
     <li>
       <a href="#">Academics       </a>
     </li>
     <li class="active">
       <a href="#">Tuition and Enrollment       </a>
     </li>
     <li>
       <a href="#">Resources and Policies       </a>
     </li>
     <li>
       <a href="#">Inside Extension       </a>
     </li>   </ul> </nav>

In head element:

<link rel="stylesheet" href="example13.css"/>

In example13.css

* {
  background-color: white;
}

ul#extnav {
  list-style: none;
  font-weight: bold;
  font-family: Arial, Verdana, Helvetica, sans-serif;
  color: #1e1e1e;
  background-color: white;
  margin-top: 1em;
}

ul#extnav li {
  display: inline;
  margin: 0;
  padding: 0;
}
ul#extnav a {
  padding: 0.5em;
  margin-right: 0;
  background-color: white;
  border-right: 1px solid black;
}
ul#extnav li:last-child a {
  border-style: none;
}
ul#extnav a:link,
ul#extnav a:visited {
  color: black;
  text-decoration: none;
}

ul#extnav a:hover {
  color: #a51c30;
  text-decoration: underline;
}
ul#extnav .active {  background-color: #f5f5f8;}
ul#extnav .active a:link,
ul#extnav .active a:visited,
ul#extnav .active a:hover,
ul#extnav .active a:active {
  background-color: #f5f5f8;
  color: #a51c30;
  text-decoration: none;
}


list

Fonts

font-family

CSS font-family property takes a comma-separated list of fonts,
and should always end with a generic font-family (e.g. serif, sans-serif, monospace).

body {
font-family: 'Merriweather Regular', 'Times New Roman', serif;
}

How are fonts defined?

Two approaches with fonts:

Note:

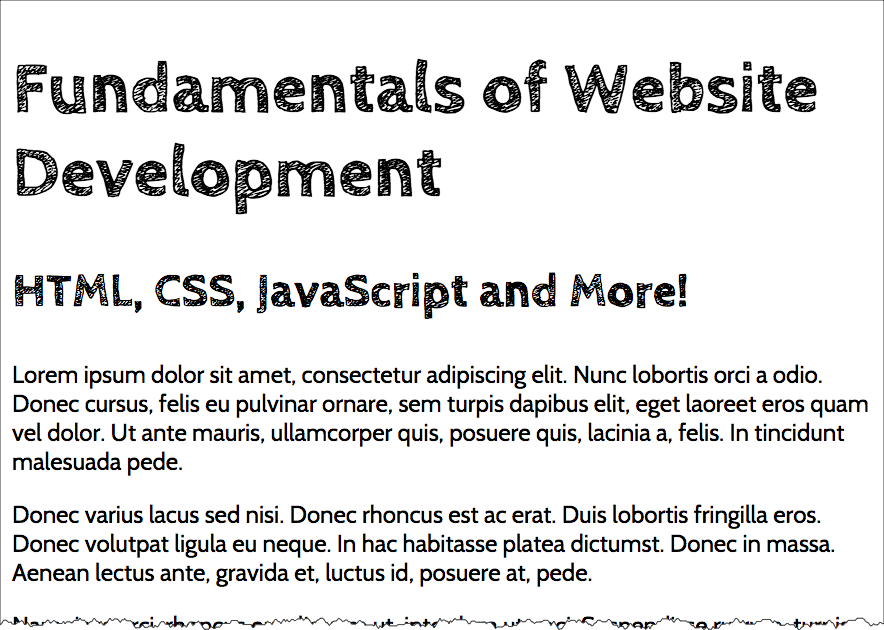

Font - Include through link element

Using a link element to include CSS with @font-face definitions is how some font hosting services recommend including their fonts. Google Fonts does this.

The server delivering the fonts does browser detection and delivers the CSS file with the appropriate font format.

Note that we are having using two Google Fonts -- Cabin Sketch and Cabin.

<link href="https://fonts.googleapis.com/css2?family=Cabin+Sketch:wght@400;700&amp;family=Cabin:wght@400;700&amp;display=swap"
rel="stylesheet">

Our CSS:

h1,h2,h3,h4,h5,h6 {
font-family:"Cabin Sketch", sans-serif;
}

h1 {
font-size: 3em;
}

h2 {
font-size: 2em;
}

body {
font-family: Cabin, serif;
}

web font


Note that nothing magical is going on here -- Google is simply returning CSS that uses @font-face with the font format appropriate for the browser making the request.

/* latin */
@font-face {
font-family: 'Cabin Sketch';
font-style: normal;
font-weight: 400;
font-display: swap;
src: local('Cabin Sketch Regular'), local('CabinSketch-Regular'), url(https://fonts.gstatic.com/s/cabinsketch/v14/QGYpz_kZZAGCONcK2A4bGOj8mNhNy_r-Kw.woff2) format('woff2');
unicode-range: U+0000-00FF, U+0131, U+0152-0153, U+02BB-02BC, U+02C6, U+02DA, U+02DC, U+2000-206F, U+2074, U+20AC, U+2122, U+2191, U+2193, U+2212, U+2215, U+FEFF, U+FFFD;
}
/* latin */
@font-face {
font-family: 'Cabin Sketch';
font-style: normal;
font-weight: 700;
font-display: swap;
src: local('Cabin Sketch Bold'), local('CabinSketch-Bold'), url(https://fonts.gstatic.com/s/cabinsketch/v14/QGY2z_kZZAGCONcK2A4bGOj0I_1Y5tjzAYOcFg.woff2) format('woff2');
unicode-range: U+0000-00FF, U+0131, U+0152-0153, U+02BB-02BC, U+02C6, U+02DA, U+02DC, U+2000-206F, U+2074, U+20AC, U+2122, U+2191, U+2193, U+2212, U+2215, U+FEFF, U+FFFD;
}

Font Pairing

Try some professional advice on font pairing (a web search on "font pairing" will get you started.)
Start with a font for headings and another font for body.

Font Resources

Finding or exploring fonts:

CSS Flexbox and Grid

Flexbox

Grid

CSS Flexbox

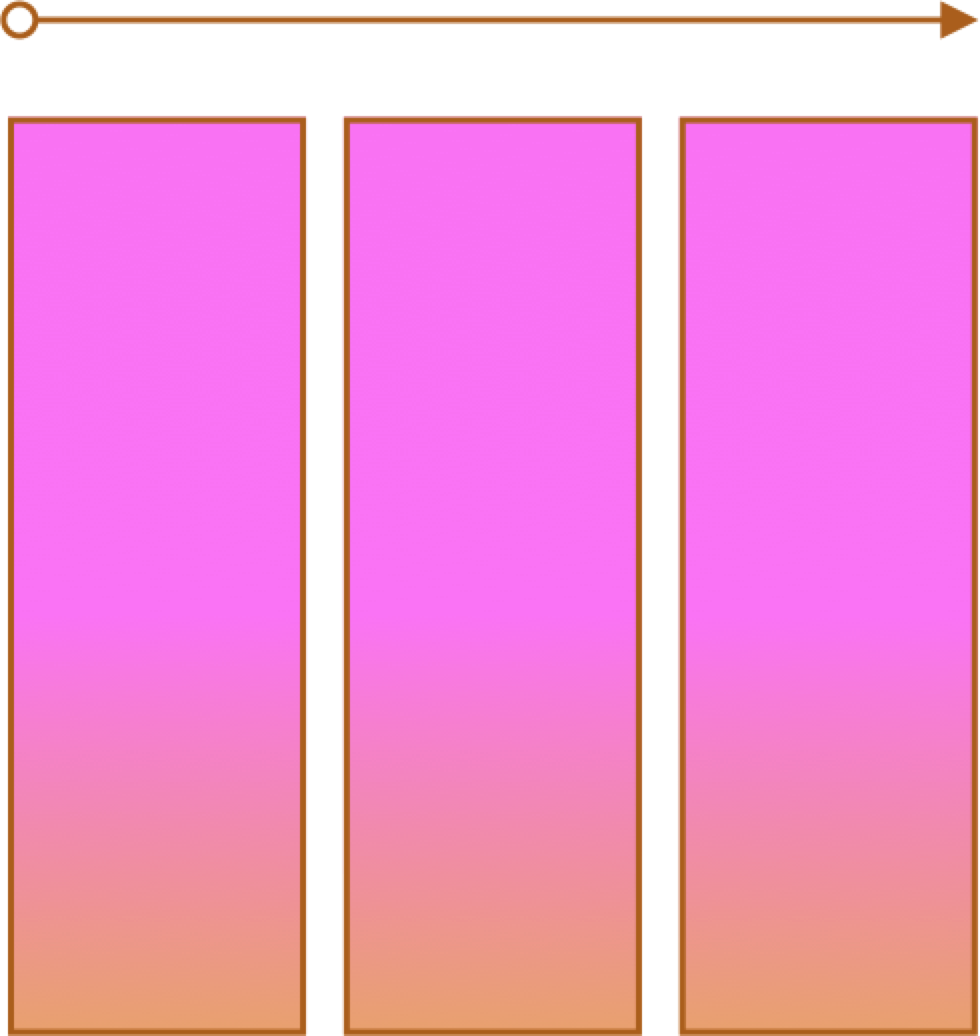

Container and Items

  1. Set up your flex container
  2. Set the "flex" properties on the items within your container
Example 4.14 - Flex - Example 4.14

 <div id="f3container">
   <div class="box box1">1
   </div>
   <div class="box box2">2
   </div>
   <div class="box box3">3
   </div>
   <div class="box box4">4
   </div>
   <div class="box box5">5
   </div>
 </div>

In style element (<style>) within head element:

#f3container {
  display: flex;
}
.box1, .box2, .box3, .box4, .box5 {
  flex-grow: 0;
  flex-shrink: 0;
  flex-basis: 5em;
}
.box1 { background-color: lightpink;}
.box2 { background-color: lightsteelblue;}
.box3 { background-color: wheat;}
.box4 { background-color: plum;}
.box5 { background-color: palegreen;}
.box {
  padding: 2em;
  border: medium solid black;
  width: 3em;
}
1
2
3
4
5


flex-basis

Example 4.15 - Flex - Example 4.15

 <div id="f4container">
   <div class="box box1">1
   </div>
   <div class="box box2">2
   </div>
   <div class="box box3">3
   </div>
 </div>

In style element (<style>) within head element:

#f4container {
  display: flex;
}
.box1 {
  flex-basis: 15%;
  background-color: lightpink;
}
.box2 {
  flex-basis: 25%;
  background-color: lightsteelblue;
}
.box3 {
  flex-basis: 50%;
  background-color: wheat;
}
.box {
  padding: 2em;
  border: medium solid black;
  width: 3em;
}
1
2
3


flex-grow and flex-shrink

Example 4.16 - Flex - Example 4.16

 <div id="f5container">
   <div class="box box1">1
   </div>
   <div class="box box2">2
   </div>
   <div class="box box3">3
   </div>
 </div>

In style element (<style>) within head element:


#f5container {
  display: flex;
}
.box1 {
  flex-grow: 1;
  flex-shrink: 1;
  flex-basis: 200px;
  background-color: lightpink;
}
.box2 {
  flex-grow: 1;
  flex-shrink: 1;
  flex-basis: 100px;
  background-color: lightsteelblue;
}
.box3 {
  flex-grow: 1;
  flex-shrink: 1;
  flex-basis: 500px;
  background-color: wheat;
}
.box {
  padding: 2em;
  border: medium solid black;
  width: 3em;
}
1
2
3


Flex and Wrap

Example 4.17 - Flex Wrap - Example 4.17

 <div id="f6container">
   <div class="box box1">1
   </div>
   <div class="box box2">2
   </div>
   <div class="box box3">3
   </div>
   <div class="box box4">4
   </div>
   <div class="box box5">5
   </div>
   <div class="box box6">6
   </div>
 </div>

In style element (<style>) within head element:

#f6container {
  display: flex;
  flex-wrap: wrap;
  justify-content: space-evenly;
  background-color: linen;
  border: thin solid black;
}
.box1, .box2, .box3, .box4, .box5, .box6 {
  flex-grow: 0;
  flex-shrink: 0;
  flex-basis: 28%;
  box-sizing: border-box;
  margin: 1rem 0;
}
.box1 { background-color: lightpink;}
.box2 { background-color: lightsteelblue;}
.box3 { background-color: wheat;}
.box4 { background-color: plum;}
.box5 { background-color: palegreen;}
.box6 { background-color: turquoise;}
.box {
  padding: 2em;
  border: medium solid black;
}
1
2
3
4
5
6

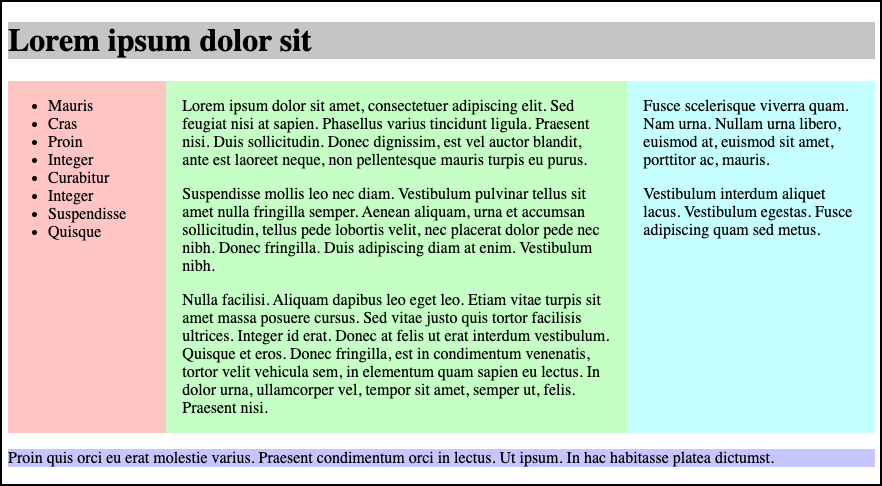

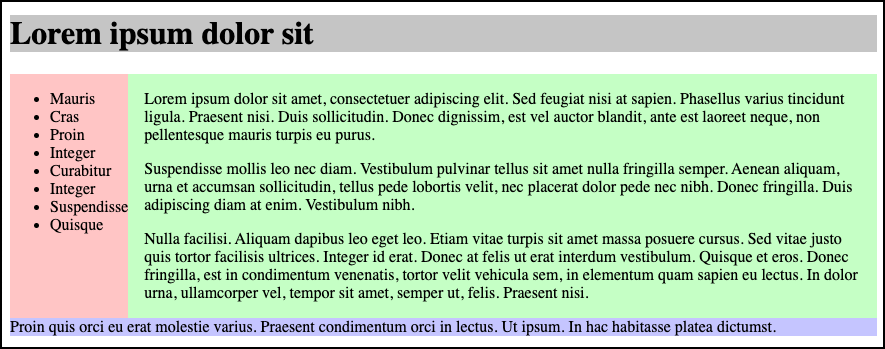

Flex and Simple Layouts

Float

Float takes the block out of the flow of the containing block and moves it (right or left) within the containing block.

Example 4.18 - Margin, Padding, Border - Example 4.18

 <aside>Drafted by Thomas Jefferson between June 11 and June 28, 1776, the Declaration of Independence was ratified by the Continental Congress on July 4 in Philadelphia, Pennsylvania. </aside>
 <p>We hold these truths to be self-evident, that all men are created equal, that they are endowed by their Creator with certain unalienable Rights, that among these are Life, Liberty, and the pursuit of Happiness. That to secure these rights, Governments are instituted among Men, deriving their just powers from the consent of the governed. That whenever any Form of Government becomes destructive of these ends, it is the Right of the People to alter or to abolish it, and to institute new Government, laying its foundation on such principles and organizing its powers in such form, as to them shall seem most likely to effect their Safety and Happiness.
 </p>

In style element (<style>) within head element:

aside {
        width: 33%;
        text-align: left;
        font-size: 0.75em;
        color: #006600;
        background-color: #fefecd;
        padding: 0.5em;
        margin: 0.75em;
        border-width: thin;
        border-style: dotted;
        border-color: #900;
        float: right;
        font-size: 16pt;
       }
p {
       font-size: 18pt;
       line-height: 1.5;
     }


Float

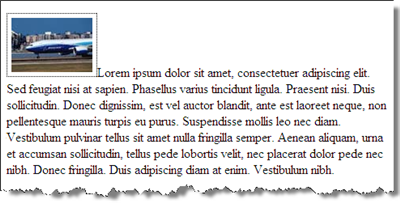

Example 4.19 - float: none; - Example 4.19

 <p>
   <img src="images/777-t-1.jpg" alt="777"/>
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Sed feugiat nisi at sapien. Phasellus varius tincidunt ligula. Praesent nisi. Duis sollicitudin. Donec dignissim, est vel auctor blandit, ante est laoreet neque, non pellentesque mauris turpis eu purus. Suspendisse mollis leo nec diam. Vestibulum pulvinar tellus sit amet nulla fringilla semper. Aenean aliquam, urna et accumsan sollicitudin, tellus pede lobortis velit, nec placerat dolor pede nec nibh. Donec fringilla. Duis adipiscing diam at enim. Vestibulum nibh.
 </p>

In style element (<style>) within head element:

img {
  float: none;
  border: thin dotted black;
  padding: 5px;
  }


float none

Example 4.20 - float: right; - Example 4.20

 <p>
   <img src="images/777-t-1.jpg" alt="777"/>
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Sed feugiat nisi at sapien. Phasellus varius tincidunt ligula. Praesent nisi. Duis sollicitudin. Donec dignissim, est vel auctor blandit, ante est laoreet neque, non pellentesque mauris turpis eu purus. Suspendisse mollis leo nec diam. Vestibulum pulvinar tellus sit amet nulla fringilla semper. Aenean aliquam, urna et accumsan sollicitudin, tellus pede lobortis velit, nec placerat dolor pede nec nibh. Donec fringilla. Duis adipiscing diam at enim. Vestibulum nibh.
 </p>

In style element (<style>) within head element:

img {
  float: right;
  clear: none;
  border: thin dotted black;
  padding: 5px;
  }


float none

Float

Float: right

Example 4.21 - float: right; - Example 4.21

 <div>
   <aside>Drafted by Thomas Jefferson between June 11 and June 28, 1776, the Declaration of Independence was ratified by the Continental Congress on July 4 in Philadelphia, Pennsylvania.   </aside>
   <p>We hold these truths to be self-evident, that all men are created equal, that they are endowed by their Creator with certain unalienable Rights, that among these are Life, Liberty, and the pursuit of Happiness. That to secure these rights, Governments are instituted among Men, deriving their just powers from the consent of the governed. That whenever any Form of Government becomes destructive of these ends, it is the Right of the People to alter or to abolish it, and to institute new Government, laying its foundation on such principles and organizing its powers in such form, as to them shall seem most likely to effect their Safety and Happiness.
   </p>
 </div>

In style element (<style>) within head element:

aside {
        float: right;
        width: 33%;
        text-align: left;
        font-size: 0.75em;
        color: #006600;
        background-color: #fefecd;
        padding: 0.5em;
        margin: 0.75em;
        border-width: thin;
        border-style: dotted;
        border-color: #900;
       }
body {
        font-size: large;
        line-height: 1.5;
     }


Float: left

Example 4.22 - float: left; - Example 4.22

 <div>
   <div class="about">Drafted by Thomas Jefferson between June 11 and June 28, 1776, the Declaration of Independence was ratified by the Continental Congress on July 4 in Philadelphia, Pennsylvania.
   </div>
   <div>We hold these truths to be self-evident, that all men are created equal, that they are endowed by their Creator with certain unalienable Rights, that among these are Life, Liberty, and the pursuit of Happiness. That to secure these rights, Governments are instituted among Men, deriving their just powers from the consent of the governed. That whenever any Form of Government becomes destructive of these ends, it is the Right of the People to alter or to abolish it, and to institute new Government, laying its foundation on such principles and organizing its powers in such form, as to them shall seem most likely to effect their Safety and Happiness.
   </div>
 </div>

In style element (<style>) within head element:

.about {
        float: left;
        width: 33%;
        text-align: left;
        font-size: 0.75em;
        color: #006600;
        background-color: #fefecd;
        padding: 0.5em;
        margin: 0.75em;
        border-width: thin;
        border-style: dotted;
        border-color: #900;
       }
body {
        font-size: large;
        line-height: 1.5;
     }


Backgrounds - text replacement with an image

Sometimes a wordmark and logo are the title or banner.

Use background-image and then a negative indent to remove the text from the visual part of the page.

h1 text replacement with an images

h1 {
  height: 200px;
  width: 250px;
  text-indent: -3000px;
  border: solid 1px #000;
  background-position: center center;
  background-repeat: no-repeat;
  background-image: url('images/wordmark.png');
}
