Session 11a - Javascript, Part 4
Harvard Extension School
Fall 2024
Course Web Site: https://cscie12.dce.harvard.edu/
Topics
- Announcements
- Forms - Basic
- Accessibility: Label Element
- HTML5 forms
- Client-side Form Validation
- Image Gallery

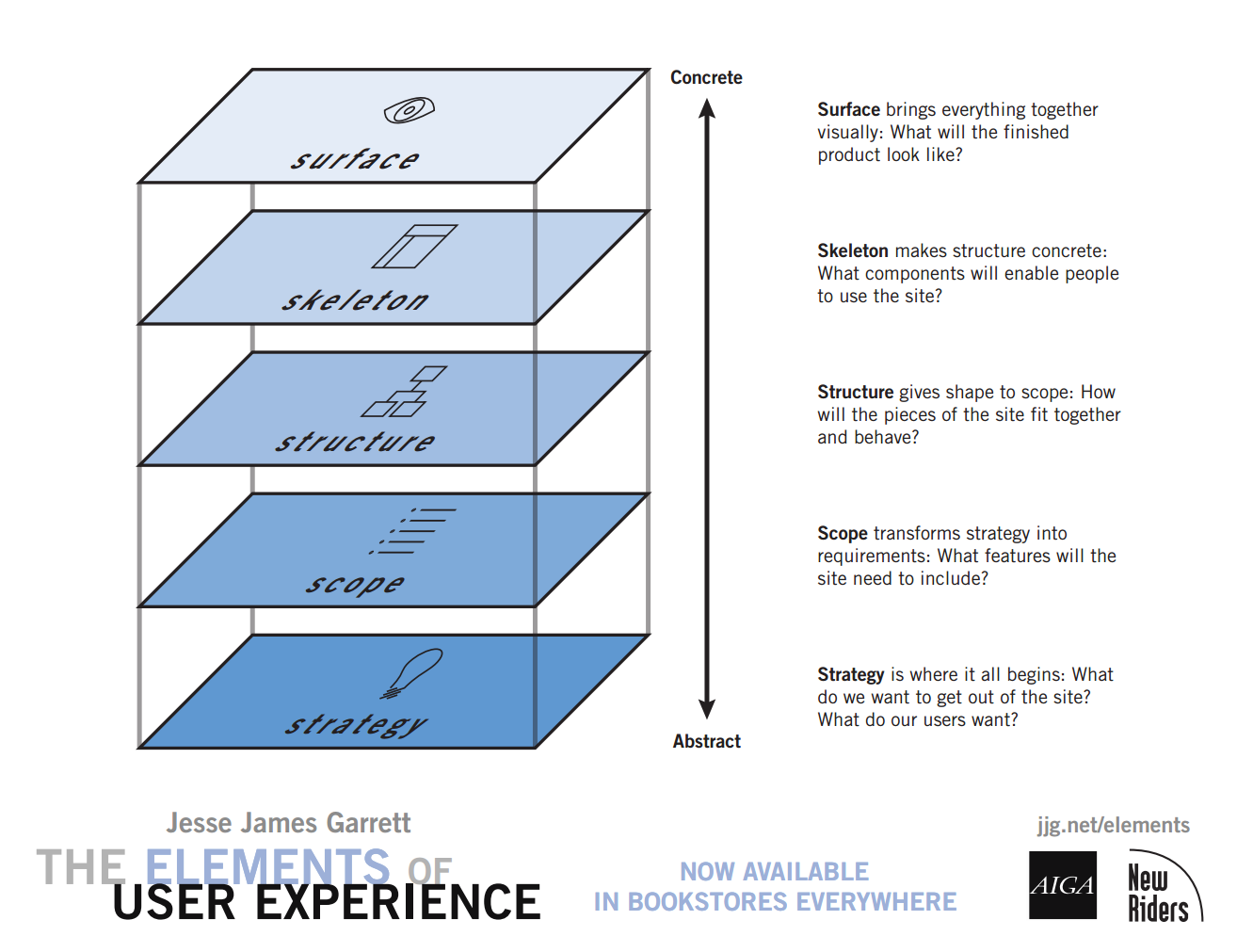

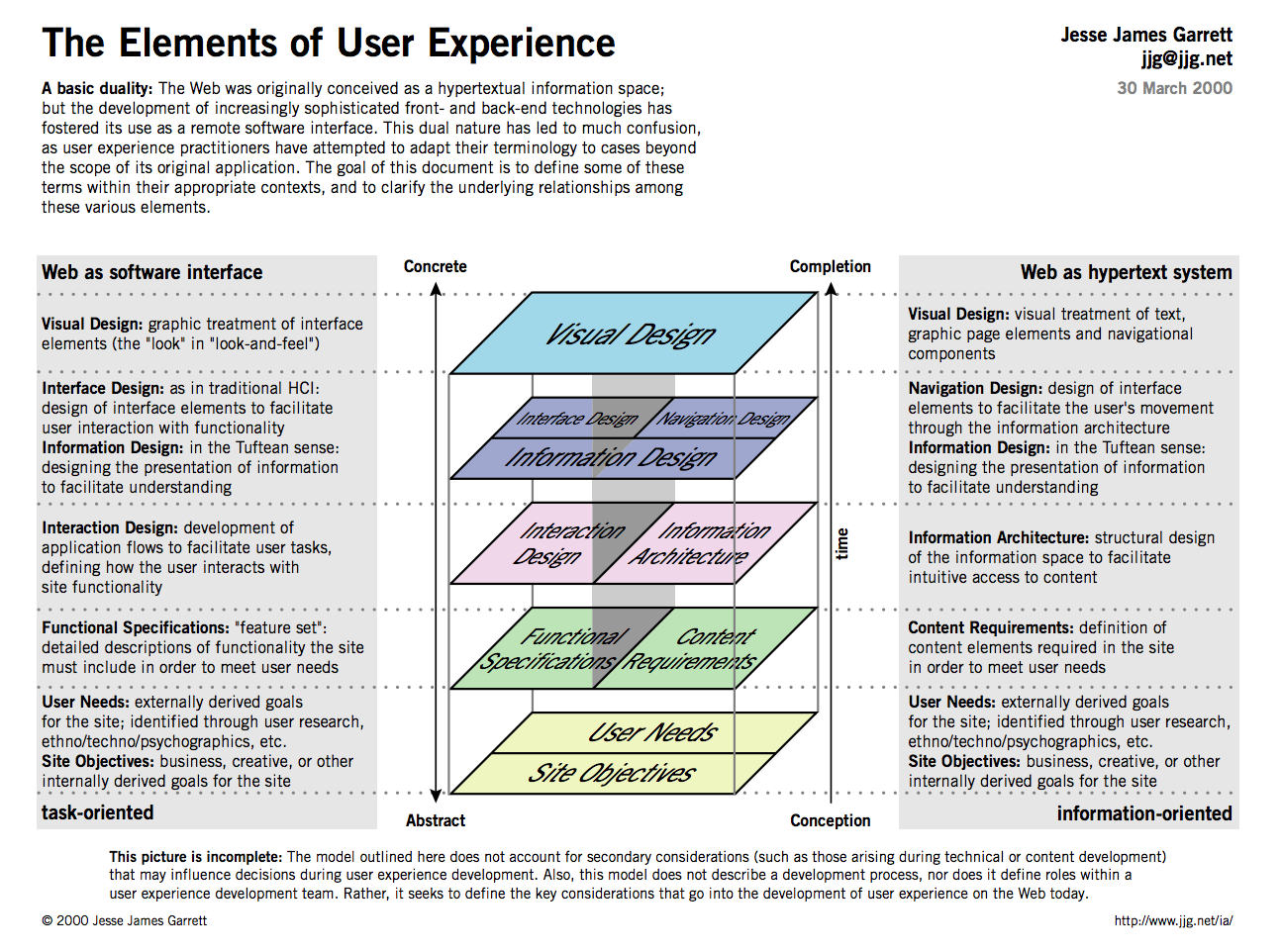

- Elements of User Experience
Presentation contains 30 slides
Announcements
- Later in November: November 20, 2024. Class will be pre-recorded, and there will be no live class meeting!
- Assignment 08: JavaScript Choose Your Own Adventures
Given today, Due November 22. - Optional "Assignment Redo" - Redo one of your existing assignments and gain back up to half the points!
- Holidays: November 27 to December 1. HES 2024-25 Academic Calendar
- Final Project due date: December 18, 6 pm
Assignment 08: JavaScript Choose Your Own Adventures
Pick two of:
- Templates
- Maps
- Form validation
- Image Gallery
Forms - Basic
Two elements for forms are in our list of most commonly seen elements:
forminputbutton

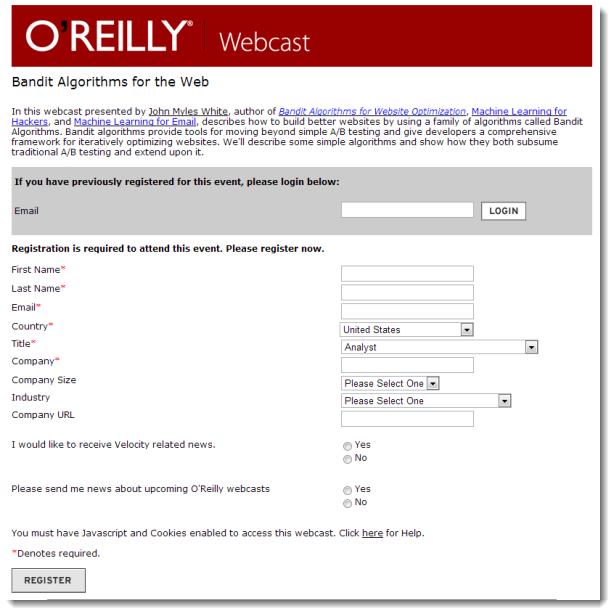

Forms
Forms are the "front-end" for the HTTP Client to send information back to the HTTP Server. The submitted information is passed from the HTTP Server to a server-side program that processes the information and produces a response for the browser.
Forms
- Text
- Single line (text input)
- Password
- Text area (textarea)
- Choices
- Choose one
- radio group
- option list (menu)
- Choose multiple
- checkbox group
- Choose one
- File Upload
- Hidden
- Submit
Forms
form
Attributes
- method ("get" or "post")
- action (URL of server-side program to process submitted data/information)
Each element within a form has a name associated with it. When the information is sent back to the server, the CGI program will access the information by name. Thus, the front-end form and the back-end program must use the same names.
While exploring forms, it is useful to use a simple server-side script that simply echo back the name/value information your form submitted (https://cs12.net/form/submit.php).
Example
11.1 - Simple form - Example 11.1
<form method="post" action="https://cs12.net/form/submit.php">Email Address:
<input type="text" name="email"/>
<button type="submit">Submit </button>
</form>HTTP Method: Get vs. Post
- Use POST when form action should not be repeated; or when the action "changes the state"
- Use GET when form action is safely repeatable; when the action does not change the state.
The technical term for this is "idempotent".
get: form information sent from browser to server as part of query string, visible in the URL
- Query String
https://host/path?param1=value1¶m2=value2¶m3=value3- Question mark
- Ampersand separated parameter/value pairs
- parameter=value
post: form information sent from browser to server as part of HTTP body; not in URL
Example
11.2 - Simple for using 'get' - Example 11.2
<form method="get" action="https://cs12.net/form/submit.php">Email Address:
<input type="text" name="email"/>
<button type="submit">Submit </button>
</form>Example
11.3 - Simple form using 'post' - Example 11.3
<form method="post" action="https://cs12.net/form/submit.php">Email Address:
<input type="text" name="email"/>
<button type="submit">Submit </button>
</form>Text Field
Example
11.4 - Form: text input - Example 11.4
<form method="get" action="https://cs12.net/form/submit.php">Email Address:
<input type="text" name="email"/>
<br/>
Year of Birth:
<input type="text" name="year_of_birth" maxlength="4"/>
<br/>
<button type="submit">Submit Information </button>
</form>Radio Buttons
Example
11.5 - Form: radio buttons - Example 11.5
<form method="get" action="https://cs12.net/form/submit.php">Email Address:
<input type="text" name="email"/>
<br/>
Please send me email updates:
<br/>
<input type="radio" name="sendupdates" value="yes" checked="checked"/>
yes
<br/>
<input type="radio" name="sendupdates" value="no"/>
no
<br/>
<button type="submit">Submit Information </button>
</form>Checkbox
Example
11.6 - Form: checkboxes - Example 11.6
<form method="get" action="https://cs12.net/form/submit.php">What ice cream do you like?
<br/>
<input type="checkbox" name="icecream" value="chocolate"/>
Chocolate
<br/>
<input type="checkbox" name="icecream" value="chocolate peanut butter"/>
Chocolate Peanut Butter
<br/>
<input type="checkbox" name="icecream" value="vanilla"/>
Vanilla
<br/>
<input type="checkbox" name="icecream" value="strawberry"/>
Strawberry
<br/>
<button type="submit">Submit Information </button>
</form>Textarea
Example
11.7 - Form: textarea - Example 11.7
<form method="post" action="https://cs12.net/form/submit.php">
<strong>Comments </strong>
<textarea name="comments" rows="10" cols="50">Please enter comments... </textarea>
<button type="submit">Submit Information </button>
</form> In style
element
(<style>) within head element:
textarea {
display: block;
margin: 1rem 0;
}Select and Option
Pull-down menu
Example
11.8 - Pull-down List - Example 11.8
<form method="get" action="https://cs12.net/form/submit.php">Select your favorite New England states:
<br/>
<select name="state">
<option value="CT">Connecticut </option>
<option value="ME">Maine </option>
<option value="MA">Massachusetts </option>
<option value="NH">New Hampshire </option>
<option value="RI">Rhode Island </option>
<option value="VT">Vermont </option> </select>
<br/>
<button type="submit">Submit Information </button>
</form>Scrollable list ← DON'T DO THIS!
Note: because scrollable lists are difficult for users, they are not typically used.
A scrollable list (size attribute) that can have multiple selections (multiple attribute):
Example
11.9 - Scrollable List - Example 11.9
<form method="get" action="https://cs12.net/form/submit.php">Select your favorite New England states:
<br/>
<select name="state" size="3" multiple="multiple">
<option value="CT">Connecticut </option>
<option value="ME">Maine </option>
<option value="MA">Massachusetts </option>
<option value="NH">New Hampshire </option>
<option value="RI">Rhode Island </option>
<option value="VT">Vermont </option> </select>
<br/>
<button type="submit">Submit Information </button>
</form>Accessibility: Label Element
Label elements are critical for form accessibility.
label element lets us use markup to associate text with an input element.
Using label you can make the association between the text label and the form input explicit, and not just rely on the visual proximity.
Labels - Why?
- Makes text labels associated wtih input elements explicit
- Helps with screen readers!
- Helps with "clicks" and touch screens!
Accessibility: Label Element
Example
11.10 - Form Labels - Example 11.10
<form method="get" action="https://cs12.net/form/submit.php">
<p>Do you like to watch NCAA basketball?
</p>
<label>
<input type="radio" name="basketball" value="Y"/>
Yes </label>
<label>
<input type="radio" name="basketball" value="N"/>
No </label>
<button type="submit">Submit </button>
</form> In style
element
(<style>) within head element:
label, button { display: block; }
button { margin-top: 1rem;}

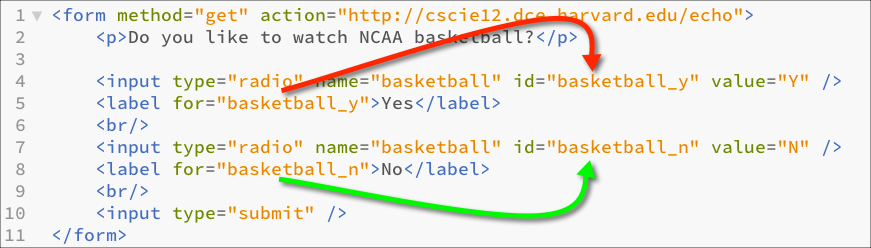

Label Element - using id, label, for
- Explicit
- id attribute for form input
- label element for input label
- for attribute in label to link label element with input via the value of id
Example
11.11 - Form Labels - Example 11.11
<form method="get" action="https://cs12.net/form/submit.php">
<p>Do you like to watch NCAA basketball?
</p>
<input type="radio" name="basketball" id="basketball_y" value="Y"/>
<label for="basketball_y">Yes </label>
<br/>
<input type="radio" name="basketball" id="basketball_n" value="N"/>
<label for="basketball_n">No </label>
<br/>
<input type="submit" value="Submit"/>
</form>
Labels
Example
11.12 - Form Labels - Example 11.12
<form method="get" action="https://cs12.net/form/submit.php">
<div>What ice cream do you like?
<br/>
<input type="checkbox" name="icecream" id="icecream_chocolate" value="chocolate"/>
<label for="icecream_chocolate">Chocolate </label>
<br/>
<input type="checkbox" name="icecream" id="icecream_cpb" value="chocolate peanut butter"/>
<label for="icecream_cpb">Chocolate Peanut Butter </label>
<br/>
<input type="checkbox" name="icecream" id="icecream_vanilla" value="vanilla"/>
<label for="icecream_vanilla">Vanilla </label>
<br/>
<input type="checkbox" name="icecream" id="icecream_strawberry" value="strawberry"/>
<label for="icecream_strawberry">Strawberry </label>
<br/>
<button type="submit">Submit Information </button>
</div>
</form>fieldset and legend
Used to group related choices and even sets.
fieldset and legend elements can further help group related input fields.
Example
11.13 - Form fieldset and legend elements - Example 11.13
<form method="get" action="https://cs12.net/form/submit.php">
<div>
<fieldset>
<legend>Name </legend>
<label>First Name
<input type="text" name="fname" size="30"/>
</label>
<label>Last Name
<input type="text" name="lname" size="30"/>
</label> </fieldset>
<fieldset>
<legend>Sports </legend>
<fieldset>
<legend>Do you like basketball? </legend>
<label>
<input type="radio" name="basketball" value="Y"/>
Yes </label>
<label>
<input type="radio" name="basketball" value="N"/>
No </label> </fieldset>
<fieldset>
<legend>Do you like baseball? </legend>
<label>
<input type="radio" name="baseball" value="Y"/>
Yes </label>
<label>
<input type="radio" name="baseball" value="N"/>
No </label> </fieldset> </fieldset>
<button type="submit">Submit </button>
</div>
</form> In style
element
(<style>) within head element:
label { display: block; }
fieldset { margin-top: 1rem;}
button { display: block; margin-top: 1rem; padding: 0.5rem 1rem;}optgroup

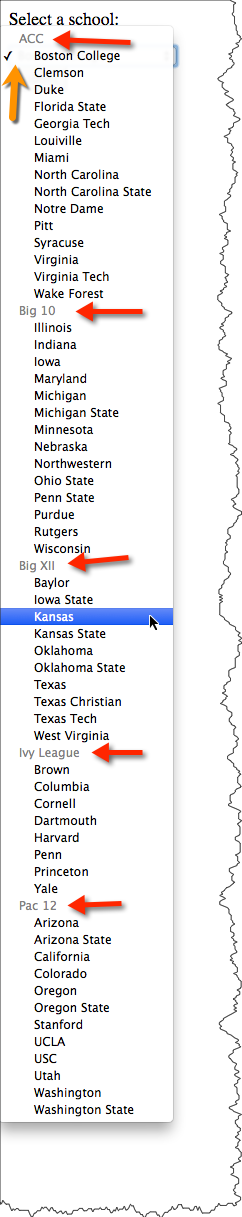

The optgroup element allows you to group a long select list.
Example
11.14 - Form: optgroup in pull-down menus - Example 11.14
<p>Select a school:
</p>
<form method="get" action="https://cs12.net/form/submit.php">
<select name="school">
<optgroup label="ACC">
<option>Boston College </option>
<option>Clemson </option>
<option>Duke </option>
<option>Florida State </option>
<option>Georgia Tech </option>
<option>Louisville </option>
<option>Miami </option>
<option>North Carolina </option>
<option>North Carolina State </option>
<option>Notre Dame </option>
<option>Pitt </option>
<option>Syracuse </option>
<option>Virginia </option>
<option>Virginia Tech </option>
<option>Wake Forest </option> </optgroup>
<optgroup label="Big 10">
<option>Illinois </option>
<option>Indiana </option>
<option>Iowa </option>
<option>Maryland </option>
<option>Michigan </option>
<option>Michigan State </option>
<option>Minnesota </option>
<option>Nebraska </option>
<option>Northwestern </option>
<option>Ohio State </option>
<option>Oregon </option>
<option>Penn State </option>
<option>Purdue </option>
<option>Rutgers </option>
<option>UCLA </option>
<option>USC </option>
<option>Washington </option>
<option>Wisconsin </option> </optgroup>
<optgroup label="Big XII">
<option>Arizona </option>
<option>Arizona state </option>
<option>Baylor </option>
<option>Brigham Young </option>
<option>Central Florida </option>
<option>Cincinnati </option>
<option>Colorado </option>
<option>Houston </option>
<option>Iowa State </option>
<option>Kansas </option>
<option>Kansas State </option>
<option>Oklahoma </option>
<option>Oklahoma State </option>
<option>Texas Christian </option>
<option>Texas Tech </option>
<option>Utah </option>
<option>West Virginia </option> </optgroup>
<optgroup label="Ivy League">
<option>Brown </option>
<option>Columbia </option>
<option>Cornell </option>
<option>Dartmouth </option>
<option>Harvard </option>
<option>Penn </option>
<option>Princeton </option>
<option>Yale </option> </optgroup> </select>
<div>
<button type="submit">Submit </button>
</div>
</form>

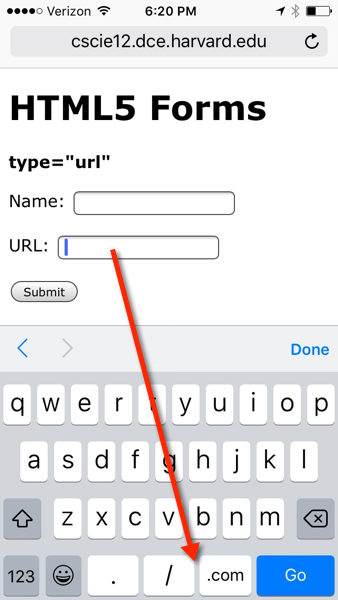

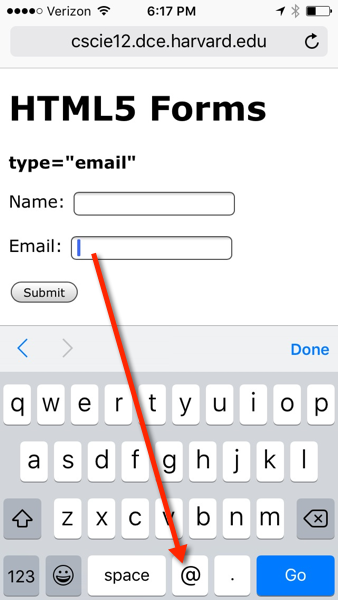

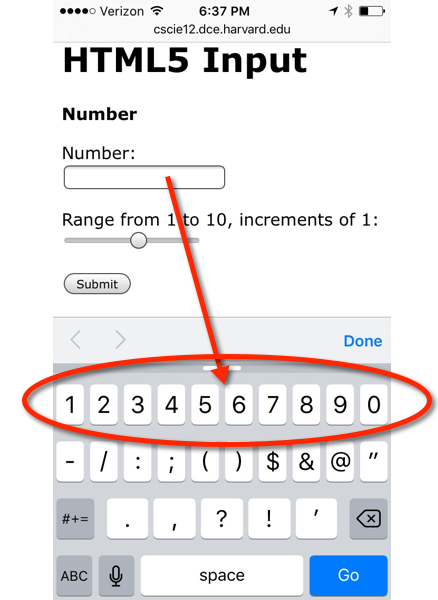

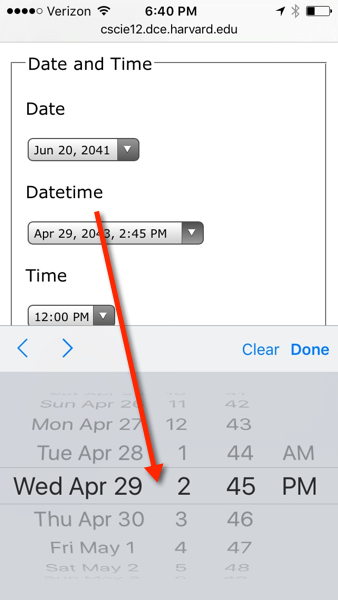

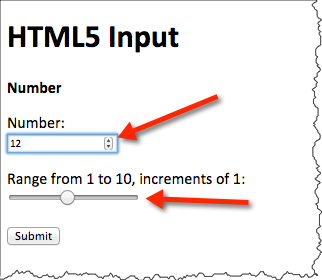

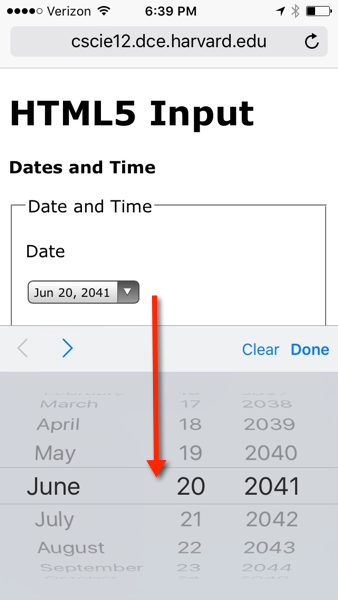

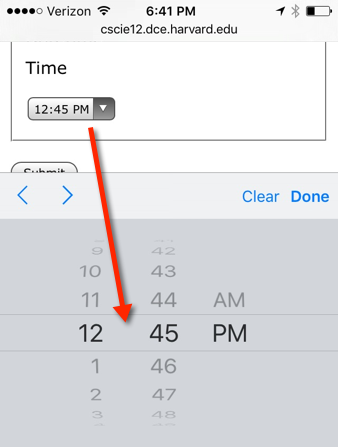

HTML5 forms
- HTML5 - Forms (HTML Living Standard)
- MDN: The form <input> element
HTML5 forms - placeholder, autofocus, and specific input types
- HTML5 Form Example
- placeholder text
- autofocus
- input types for
- url
- number
- range
- date and time
HTML5: email and url
On handheld devices, screen keyboard is optimized for input.
type="email"
Example
11.15 - text input for email - Example 11.15
<form action="https://cs12.net/form/submit.php" method="post">
<label>Email:
<input type="email" name="email_address"/>
</label>
<button type="submit">Submit </button>
</form> In style
element
(<style>) within head element:
label, button { display: block; margin-top: 1rem;}
type="url"
Example
11.16 - text input for URLs - Example 11.16
<form action="https://cs12.net/form/submit.php" method="post">
<label>URL:
<input type="url" name="url"/>
</label>
<button type="submit">Submit </button>
</form> In style
element
(<style>) within head element:
label, button { display: block; margin-top: 1rem;}
HTML5: number and range
Example
11.17 - HTML5 input type='number' and type='range' - Example 11.17
<form action="https://cs12.net/form/submit.php" method="post">
<label>Pick a number:
<input type="number" name="entered_number"/>
</label>
<label>How happy are you?
<input type="range" min="1" max="5" value="3" step="1" name="happy"/>
</label>
<button type="submit">Submit </button>
</form> In style
element
(<style>) within head element:
label, button { display: block; margin-top: 1rem;}
input { display: block; }
HTML5: date and time
<form action="https://cs12.net/form/submit.php" method="post">
<fieldset>
<legend>Date and Time </legend>
<label>Pick a date:
<input type="date" name="my_date"/>
</label>
<label>Pick a datetime
<input type="datetime-local" name="my_datetime"/>
</label>
<label>Pick a time (15 minute increments)
<input type="time" name="my_time_15" step="900" value="12:00"/>
</label>
<label>Pick a time (1 minute increments)
<input type="time" name="my_time_1" step="60" value="12:00"/>
</label>
<label>Pick a time (1 second increments)
<input type="time" name="my_time_1s" step="1" value="12:00"/>
</label> </fieldset>
<button type="submit">Submit </button>
</form> In style
element
(<style>) within head element:
label, button { display: block; margin-top: 1rem;}
input { display: block; margin-top: 0.25rem;}
Processing Forms on the server side
- Course Form Submit Script
- Formspree - is a form backend, API, and email service for HTML & JavaScript forms. It's the simplest way to embed custom contact us forms, order forms, or email capture forms on your static website.
Client-side Form Validation
Provide feedback to users prior to submitting form.
- Native browser functionality with HTML5 form controls (see MDN: Client-side form validation)
- DIY (Do It Yourself) with JS
- JS libraries — some are 'plain' JS based (e.g. Pristine), others with jQuery (e.g. jQuery Validation Plugin).
JS: Form Validation - DIY (Do It Yourself)
Notes
- Pass in
ev(event) into the submit listener - Get value, test if two or more characters in length.
If true, then let form continue; else stop the form from submitting (ev.preventDefault())
document.addEventListener("DOMContentLoaded", function(){
let form = document.querySelector('#myForm');
form.addEventListener("submit", function(ev){
console.log("Submit event happened!");
console.log(ev);
let nameInput = document.querySelector('#name');
let nameInputValue = nameInput.value;
if (nameInputValue.length >= 2) {
// consider valid
return true;
} else {
// consider invalid
console.log("Please fill out name field");
alert("Please fill out name field");
// would want to have better feedback to user!
ev.preventDefault();
}
})
})PristineJS - Form Validation
- PristineJS - Vanilla javascript form validation micro-library
- form1-pristine.html
document.addEventListener("DOMContentLoaded",function(){
let form = document.getElementById("myForm");
let pristine = new Pristine(form);
form.addEventListener('submit', function (e) {
let valid = pristine.validate();
if (valid) {
return true;
} else {
e.preventDefault();
}
});
})Image Gallery
Elements of User Experience
- The Elements of User Experience: User-Centered Design for the Web
- Planes Poster - Detailed
- The Elements of User Experience — Harvard Library Online Resource
5 Planes in More Detail
