Session 09 - Javascript, Part 2

Topics

1. Javascript - What can you do?
2. Expanding and Collapsing Tree Structures
3. Responsive Navigation
4. JS Data Structures - array and "object" (key/value pair)
5. Loops and Iteration
6. Working with Key/Value objects and Arrays

Session 09 - Javascript, Part 2, slide1
Javascript - What can you do?, slide2
Getting Started with JavaScript, slide3
JavaScript Review, slide4
WAIT! for DOM to be loaded, slide5
Ways of Accessing the DOM, slide6
Expanding and Collapsing Tree Structures, slide7
Responsive Navigation, slide8
Responsive Navigation, slide9
JS Data Structures - array and "object" (key/value pair), slide10
Loops and Iteration, slide11
Javascript and DOM: Building Content, slide12
Javascript and DOM: Building Content, slide13
Javascript and DOM: Building Content, slide14
DOM methods vs innerHTML, slide15
Working with Key/Value objects and Arrays, slide16

Presentation contains 16 slides

Javascript - What can you do?

Programmatic access to all aspects of your web page!

• Manipulate classes and style properties
• Manipulate content
• Validate user input
• Communicate with Web Server (XHR, Ajax)

Getting Started with JavaScript

• MDN JavaScript
• JS Reference (DevDocs)
• W3Schools JavaScript
• Marquis, M. (2016). JavaScript for Web Designers (1st edition). A Book Apart.
• Niederst Robbins, J. (2018). Learning Web design : a beginner's guide to HTML, CSS, Javascript, and web graphics (Fifth edition.). O'Reilly.

JavaScript Review

1. JS in HTML. Including JavaScript in HTML with script element, with either src attribute or JS code.

   <script src="scripts/site.js" ></script>

   or

   <script>
   /* JS code here */
   console.log('hello from JS!');
   </script>

2. Variables. Declare variables with let and sometimes const.
   Though you will see the older var, but avoid that.
   You may also see const which declares a constant (a variable that won't be changed).

   let courseName = 'CSCI E-12',
     courseTerm = 'Fall 2023',
     courseInstructor = 'David' ;

3. Console is your friend. Your browser developer tools will be critical to use, and especially the "Console". Log to the console in JS with

   console.log('hello there!');

4. When is the code executed?script in head or right before the body close tag.
   But it is good practice to rely on specific events, especially the DOMContentLoaded event!

   The .addEventListener method takes two arguments. The first is the event name as a string, and the second is the function to execute when that event happens.

   document.addEventListener('DOMContentLoaded', function(){
       /* here's where JS goes for when DOM is loaded */
       console.log('the DOM has been loaded and parsed!');
   });

5. Events - many are user-driven such as click, focus, blur, submit, mouseover, mouseout, keypress.
   And one important one happens when the browser has processed and loaded the HTML DOM — DOMContentLoaded.

6. Event Listeners Added through JavaScript - use JavaScript to add event listeners!
   1. select the element(s)
   2. add event listener and function to be run when that event happens

   let expandButton = document.querySelector('#expand');
   expandButton.addEventListener('click',function(){
     /* do expand actions here */
   })

7. Functions. Functions can be named, and they can also be anonymous (unnamed) when setting event handlers. Functions can have arguements.

   Named function that accepts an argument:

   function square(x) {
     let numberSquared = x*x;
     return numberSquared;
   }

   /* using the function */
     let x = 4;
     let y = square(x);
     /* y should be 16 */
     console.log("y is " + y);

   Anonymous functions — function() {} — are often used in setting event listeners

   document.addEventListener('DOMContentLoaded', function(){
     /* here's where JS goes for when DOM is loaded */
     console.log('the DOM has been loaded and parsed!');
   });

8. JavaScript gives us ways to access the DOM as well as manipulate it! Some common ways of accessing the DOM are getElementById, querySelector, querySelectorAll as well as classList, classList.add, classList.remove, classList.toggle.
   We can also construct content with methods like createElement, createTextNode, appendChild, and innerHTML

WAIT! for DOM to be loaded

document.addEventListener("DOMContentLoaded", function(){
  console.log("DOM has been loaded!");
});

Some examples will show putting the script before the body end tag </body> instead of setting a DOMContentLoaded event listener on the document

Ways of Accessing the DOM

querySelector and querySelectorAll

• Both use CSS selector syntax.
• querySelector returns only the first match
• querySelector returns a list of items (even if it is a list of zero or one -- it returns a list!).

getElementById

This returns a single element node that we can directly operate on.
Remember that id values must be unique, so we only get a single match!

Expanding and Collapsing Tree Structures

• American League
  • AL Central
    • Chicago White Sox
    • Cleveland Guardians
    • Detroit Tigers
    • Kansas City Royals
    • Minnesota Twins
  • AL East
    • Baltimore Orioles
    • Boston Red Sox
    • New York Yankees
    • Tampa Bay Rays
    • Toronto Blue Jays
  • AL West
    • Houston Astros
    • Los Angeles Angels
    • Oakland Athletics
    • Seattle Mariners
    • Texas Rangers
• National League
  • NL Central
    • Chicago Cubs
    • Cincinnati Reds
    • Milwaukee Brewers
    • Pittsburgh Pirates
    • St. Louis Cardinals
  • NL East
    • Atlanta Braves
    • Miami Marlins
    • New York Mets
    • Philadelphia Phillies
    • Washington Nationals
  • NL West
    • Arizona Diamondbacks
    • Colorado Rockies
    • Los Angeles Dodgers
    • San Diego Padres
    • San Francisco Giants

Responsive Navigation

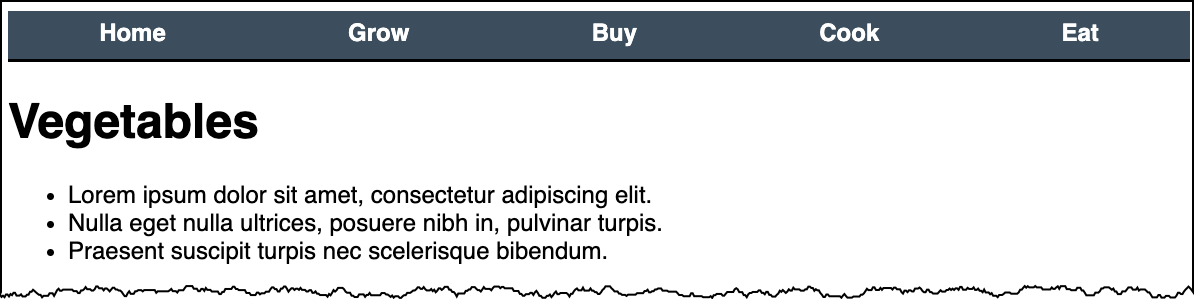

• Horizontal menu when wide screen

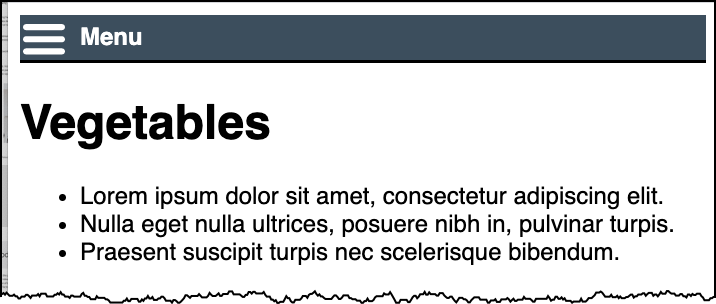

• Collapsed menu when small screenshot

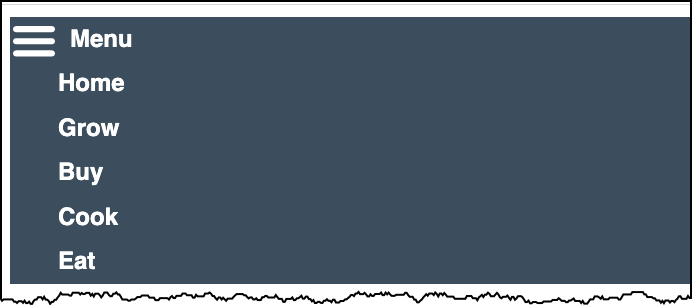

• toggle of display of expanded menu

Responsive Navigation

• CSS to set initial state of navigation, for smaller widths and larger width screens.
• For small screen:
  • set 'click' event that will toggle the menu state
  • add or remove (i.e. 'toggle') a class that controls hidden or expanded.

JS Data Structures - array and "object" (key/value pair)

array Example:

                ['Autumn', 'Winter', 'Spring', 'Summer']


object Examples:

Simple "name/value" pairs:

                {
                  "lastName" : "Gay",
                  "firstName" : "Claudine",
                  "email" : "president@harvard.edu"
                }


"name/value" pairs, with values being an array (list) of things:

                {
                  "apples" : ['Macoun','Empire','Honey Crisp','Albemarle Pippin'],
                  "oranges" : ['Naval Orange','Tangelo','Clementine','Valencia Orange']
                }


And even movies

{ "movies" : [
                "Casino Royale",
                "Quantum of Solace",
                "Skyfall",
                "Spectre",
                "No Time to Die"
             ]
}

Movie data with more detail.

Loops and Iteration

• Loops and Iterations
• See three ways of iterating through an array as a JSFiddle

let oranges = ['Naval Orange','Tangelo','Clementine','Valencia Orange'];
/* Iterate with for..of */
console.log("Iterate with: item of array");
for (const myorange of oranges) {
   console.log(myorange);
}
console.log("DONE!");

/* Iterate with 'classic' for (i = 0 ; i < LENGTH ; i++) */
console.log("Iterate with classic for i = ;  < ; i++");
for (let i = 0; i < oranges.length; i++ ) {
   console.log(i);
   console.log(oranges[i]);
}
console.log("DONE!");

/* Iterate with '.forEach()' */
console.log("Iterate with forEach()");
oranges.forEach(function(myorange){
  console.log(myorange);
});
console.log("DONE!");

Javascript and DOM: Building Content

And do the same for the other three seasons to get:

Javascript and DOM: Building Content


 <p>
   <button id="makelist" type="submit">Build List of Seasons   </button>
 </p>
 <div id="seasonslist1">
 </div>

function makeSeasonsList() {
  let ul_node = document.createElement("ul");

  /* Autumn */
  let li_node1 = document.createElement("li");
  let li_text1 = document.createTextNode("Autumn");
  li_node1.appendChild(li_text1);

  /* Winter */
  let li_node2 = document.createElement("li");
  let li_text2 = document.createTextNode("Winter");
  li_node2.appendChild(li_text2);

  /* Spring */
  let li_node3 = document.createElement("li");
  let li_text3 = document.createTextNode("Spring");
  li_node3.appendChild(li_text3);

  /* Summer */
  let li_node4 = document.createElement("li");
  let li_text4 = document.createTextNode("Summer");
  li_node4.appendChild(li_text4);

  /* Append the list items to the ul */
  ul_node.appendChild(li_node1);
  ul_node.appendChild(li_node2);
  ul_node.appendChild(li_node3);
  ul_node.appendChild(li_node4);

  /* Place on page */
  let container = document.getElementById("seasonslist1");
  container.appendChild(ul_node);
}

/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

Javascript and DOM: Building Content

Using an array (a list).

let seasons = ['Spring', 'Summer', 'Autumn', 'Winter'];

Iterate through Array


 <p>
   <button id="makelist" type="submit">Build List of Seasons   </button>
 </p>
 <div id="seasonslist2">
 </div>

<script src="example2.js"> </script>

function makeSeasonsList() {
ul_node = document.createElement("ul");
let seasons = ['Spring', 'Summer', 'Autumn', 'Winter'];
for (let i = 0 ; i < seasons.length ; i++ ) {
  let mytext = i + " " + seasons[i];
  let text_node = document.createTextNode(mytext);
  let li_node = document.createElement("li");
  li_node.appendChild(text_node);
  ul_node.appendChild(li_node);
};
let container = document.getElementById("seasonslist2");
container.appendChild(ul_node);
}
/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

Using forEach array method


 <p>
   <button id="makelist" type="submit">Build List of Seasons   </button>
 </p>
 <div id="seasonslist3">
 </div>

<script src="example3.js"> </script>

function makeSeasonsList() {
  ul_node = document.createElement("ul");
  let seasons = ['Spring', 'Summer', 'Autumn', 'Winter'];
  seasons.forEach(function(s){
    let text_node = document.createTextNode(s);
    let li_node = document.createElement("li");
    li_node.appendChild(text_node);
    ul_node.appendChild(li_node);
  });
  let container = document.getElementById("seasonslist3");
  container.appendChild(ul_node);
}

/* Wait for DOM to be loaded, then add the click listener
   to the button */
document.addEventListener('DOMContentLoaded',function(){
  document.getElementById('makelist').addEventListener('click', makeSeasonsList);
});

DOM methods vs innerHTML

• With DOM methods, we are creating nodes
• With innerHTML we are getting are setting the HTML string values.

Working with Key/Value objects and Arrays

Data:

{
  "apples" : ['Macoun','Empire','Honey Crisp','Albemarle Pippin'],
  "oranges" : ['Naval Orange','Tangelo','Clementine','Valencia Orange']
}


 <h1>List of Fruits from Data </h1>
 <div id="fruits"><!-- list goes here -->
 </div>

"use strict";

let fruits = {
    "apples": ['Macoun', 'Empire', 'Honey Crisp', 'Albemarle Pippin'],
    "oranges": ['Naval Orange', 'Tangelo', 'Clementine', 'Valencia Orange']
};
document.addEventListener('DOMContentLoaded',function(){
    buildFruitList();
});

function buildFruitList(){
    let fruitList = document.createElement('ul');
    for (const f in fruits) {
        console.log(f);
        let li = document.createElement('li');
        li.appendChild(document.createTextNode(f));
        if (Array.isArray(fruits[f])) {
            console.log(fruits[f]);
            let itemList = document.createElement('ul');
            for (const item of fruits[f]) {
                let li = document.createElement('li');
                li.appendChild(document.createTextNode(item));
                itemList.appendChild(li);
            }
            li.appendChild(itemList);
        }
        fruitList.appendChild(li);
    }
    document.getElementById('fruits').appendChild(fruitList);
}

JavaScript:

"use strict";

let fruits = {
    "apples": ['Macoun', 'Empire', 'Honey Crisp', 'Albemarle Pippin'],
    "oranges": ['Naval Orange', 'Tangelo', 'Clementine', 'Valencia Orange']
};
document.addEventListener('DOMContentLoaded',function(){
    buildFruitList();
});

function buildFruitList(){
    let fruitList = document.createElement('ul');
    for (const f in fruits) {
        console.log(f);
        let li = document.createElement('li');
        li.appendChild(document.createTextNode(f));
        if (Array.isArray(fruits[f])) {
            console.log(fruits[f]);
            let itemList = document.createElement('ul');
            for (const item of fruits[f]) {
                let li = document.createElement('li');
                li.appendChild(document.createTextNode(item));
                itemList.appendChild(li);
            }
            li.appendChild(itemList);
        }
        fruitList.appendChild(li);
    }
    document.getElementById('fruits').appendChild(fruitList);
}
