Session 11 - JavaScript, Part 4

Harvard Extension School
Spring 2022

Course Web Site: https://cscie12.dce.harvard.edu/

Topics

  1. Gotchas - maps and templates
  2. Client-side Form Validation
  3. Form Validation with jQuery Validation Plugin
  4. jQuery
  5. "Click" examples
  6. jQuery Plugins
  7. Scope
  8. Structure
  9. Nature of America - David's Final Project

Session 11 - JavaScript, Part 4, slide1
Gotchas - maps and templates, slide2
Client-side Form Validation, slide3
JS: Form Validation - DIY (Do It Yourself), slide4
PristineJS - Form Validation, slide5
Form Validation with jQuery Validation Plugin, slide6
Form Validation - setting rules with 'class' attributes, slide7
Form Validation - setting rules as configuration, slide8
Form Validation - setting custom messages and error placement, slide9
Form Validation - defining a custom rule, slide10
jQuery, slide11
jQuery and $(document).ready();, slide12
"Click" examples, slide13
jQuery and Ice Cream, slide14
jQuery Plugins, slide15
Scope, slide16
Content, slide17
Think About the User, slide18
Structure, slide19
Structuring Content, slide20
Organize, slide21
Structural Models, slide22
Hierarchical, slide23
Biological, slide24
Too deep or too shallow?, slide25
Sequential, slide26
Organic, slide27
Site Architecture, slide28
Label, slide29
Labels - Are there conventions?, slide30
Nature of America - David's Final Project, slide31

Presentation contains 31 slides

Gotchas - maps and templates

LeafletJS - bug in Safari

Example Leaflet 1.7 and Example with Leaflet 1.8.0-beta.3

Handlebars and Tables

Creating a Handlebars template with tables can be tricky, due to the way the browser parses the content of the "template".

Solutions

Client-side Form Validation

Provide feedback to users prior to submitting form.

JS: Form Validation - DIY (Do It Yourself)

Notes

document.addEventListener("DOMContentLoaded", function(){
  let form = document.querySelector('#myForm');
  form.addEventListener("submit", function(ev){
    console.log("Submit event happened!");
    console.log(ev);

    let nameInput = document.querySelector('#name');
    let nameInputValue = nameInput.value;

    if (nameInputValue.length >= 2) {
      // consider valid
      return true;
    } else {
      // consider invalid
      console.log("Please fill out name field");
      alert("Please fill out name field");
      // would want to have better feedback to user!
      ev.preventDefault();
    }
  })
})

PristineJS - Form Validation

document.addEventListener("DOMContentLoaded",function(){
  let form = document.getElementById("myForm");
  let pristine = new Pristine(form);
  form.addEventListener('submit', function (e) {
     let valid = pristine.validate();
     if (valid) {
       return true;
     } else {
       e.preventDefault();
     }
  });
})

Form Validation with jQuery Validation Plugin

jQuery Validation Plugin makes validating forms easy and flexible.

You can use it "out of the box" quickly and create validation rules by simply using class names in your input elements. You can use this validation plugin in more sophisticated ways as well, including providing your own validation methods.

jQuery Validation Plugin Home Page

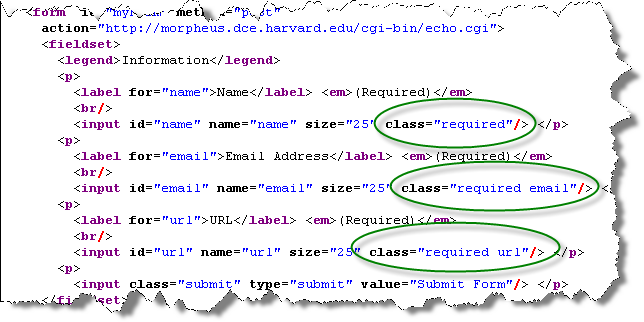

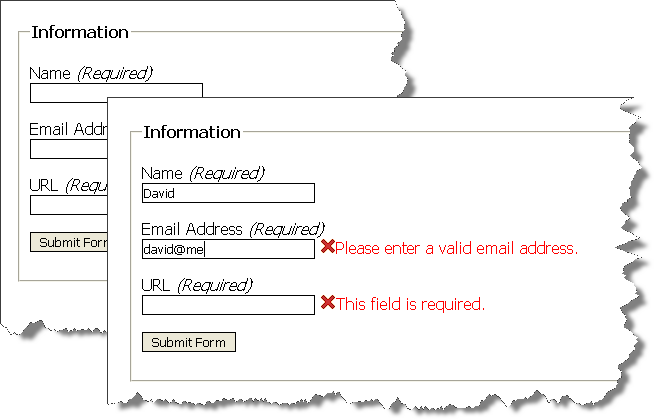

Form Validation - setting rules with 'class' attributes

jQuery Validation Plugin makes validating forms easy and flexible.

form

<!DOCTYPE html>
<html lang="en">
<head>
  <title>A Form to Illustrate Validation using the jQuery Validation Plugin</title>
  <meta charset="utf-8" />
  <link rel="stylesheet"  href="form.css" />
  <script src="https://code.jquery.com/jquery-3.6.0.min.js" integrity="sha256-/xUj+3OJU5yExlq6GSYGSHk7tPXikynS7ogEvDej/m4=" crossorigin="anonymous"></script>
  <script src="https://cdnjs.cloudflare.com/ajax/libs/jquery-validate/1.19.3/jquery.validate.min.js" integrity="sha512-37T7leoNS06R80c8Ulq7cdCDU5MNQBwlYoy1TX/WUsLFC2eYNqtKlV0QjH7r8JpG/S0GUMZwebnVFLPd6SU5yg==" crossorigin="anonymous" referrerpolicy="no-referrer"></script>
  <script>
  $(document).ready(function(){
      $("#myForm").validate();
  });
  </script>
</head>
<body>
  <form  id="myForm" method="post"
    action="https://cs12.net/form/submit.php">
    <fieldset>
      <legend>Information</legend>

        <label for="name">Name
        <input id="name" name="name" size="25" type="text" required class="required"/> </label>

        <label for="email">Email Address
        <input id="email" name="email" size="25" type="email" class="required email"/> </label>

        <label for="url">URL
        <input id="url" name="url" size="25" class="required url"/> </label>

        <button type="submit">Submit Form</button>
    </fieldset>
  </form>
</body>
</html>

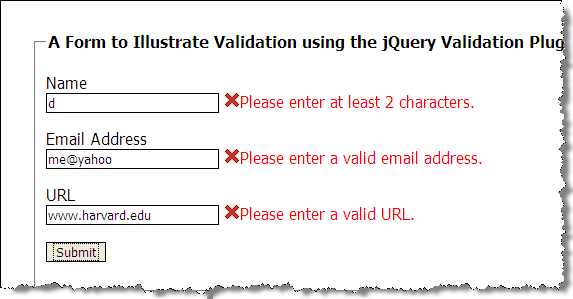

Form Validation - setting rules as configuration

Rules are quite customizable and can be expressed in JavaScript sections and not in the code markup.

form validation


  $(document).ready(function(){
    $("#myForm").validate(
      {
      rules: {
        name:  { required: true, minlength: 2 },
        email: { required: true, email: true },
        url:   { required: true, url: true }
      }
    });
  });

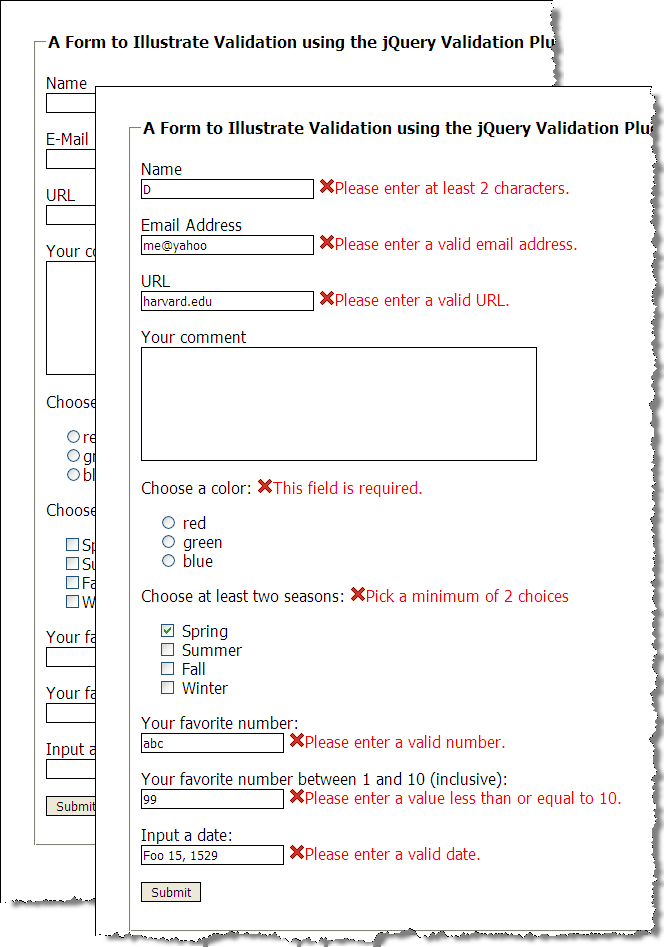

Form Validation - setting custom messages and error placement

form validation

  $(document).ready(function(){
      var validation = $("#myForm").validate(
       {
         rules: {
           name: { required: true, minlength: 2 },
           email: { required: true, email: true },
           url: { required: true, url: true },
           favnum: { required: true, number: true },
           favnum10: { required: true, number: true, min: 1, max: 10},
           color: {required: true},
           season: {required: true, minlength: 2},
           yourdate: { required: true, date: true }
         },
         messages: {
                season: { minlength: jQuery.validator.format("Pick a minimum of {0} choices") }
         },
         errorPlacement: function(error,element) {
             if ( element.is("[name=color]") )
                error.appendTo( $('p#color') );
             else if ( element.is("[name=season]") )
                error.appendTo( $('p#season') );
             else if ( element.is("[name=comments]") )
                error.insertAfter( $('label[for=comments]') );
             else
                error.insertAfter(element);
         }
       });
    });

Form Validation - defining a custom rule

Here we define a new validation rule called "netid" (three characters and three numbers, e.g. 'abc123')

$(document).ready( function() {
    /* addMethod for netid validation */
    $.validator.addMethod(
      "netid",
       function(value, element) {
          var pattern = /^[a-zA-Z]{3}[0-9]{3,4}$/;
          return this.optional( element ) || pattern.test( value );
       },
       'Please enter a valid NetID (e.g. abc123).'
     );
    var validation = $("#myForm").validate(
         {
           rules: {
             name: { required: true, minlength: 2 },
             email: { required: true, email: true },
             netid: { required: true, netid: true }
          }
    );
});

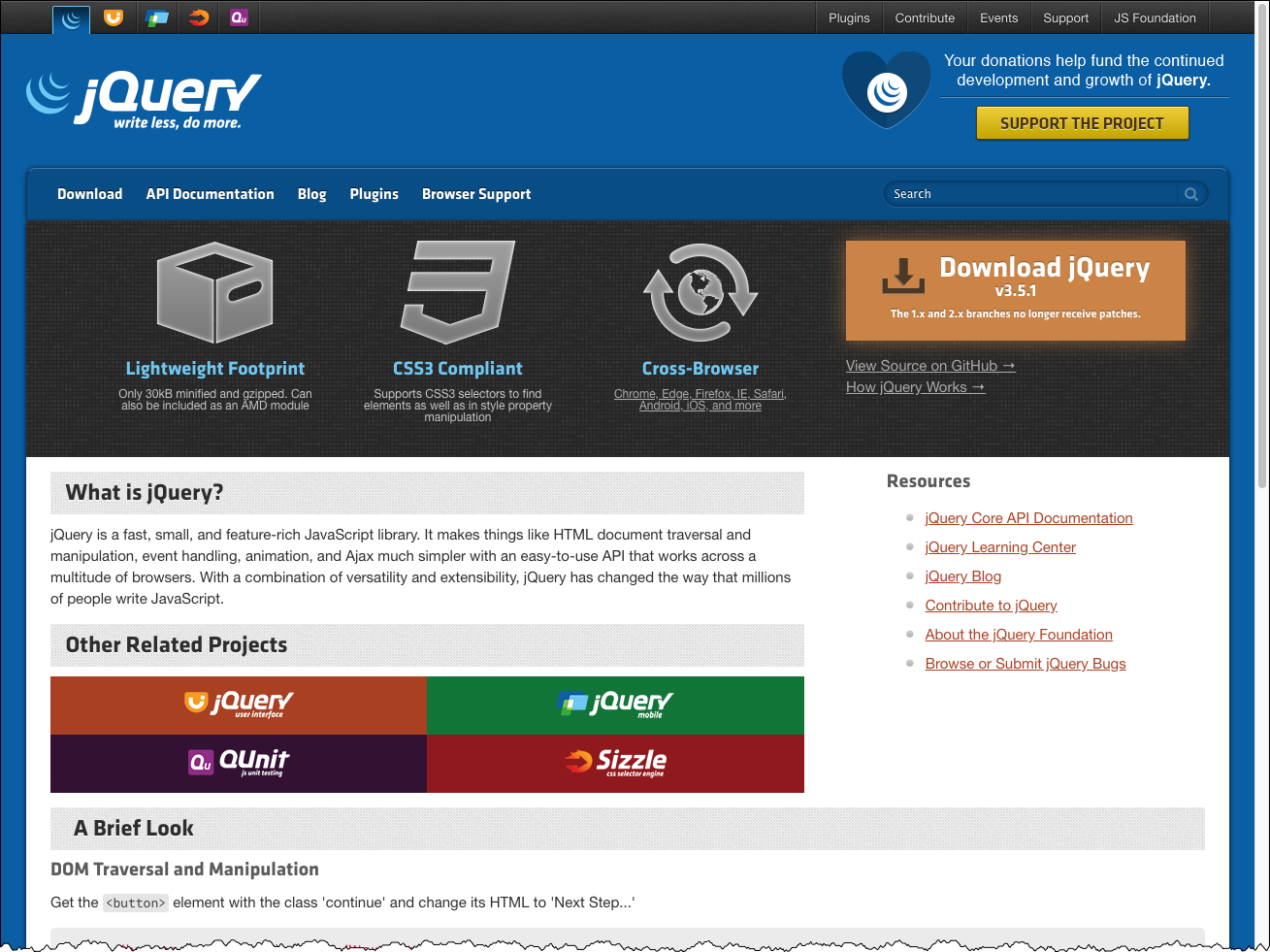

jQuery

What is jQuery?
jQuery is a fast, small, and feature-rich JavaScript library. It makes things like HTML document traversal and manipulation, event handling, animation, and Ajax much simpler with an easy-to-use API that works across a multitude of browsers. With a combination of versatility and extensibility, jQuery has changed the way that millions of people write JavaScript.

Easier:

jQuery Home

Learning jQuery

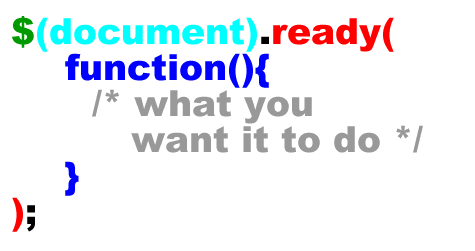

jQuery and $(document).ready();

$(document).ready(function(){})

See: $(document).ready() for more explanation, including the shorthand of $().

"Click" examples

Let's see how we can do this with jQuery. Items to note:

Example 11.1 - jquery click events - Example 11.1

 <div id="cscie12-course2" style="font-family: calibri,verdana,tahoma,helvetica,sans-serif; float: left; width: 50%; padding: 10px; margin: 10px; border: medium solid black; background-color: #ffb;">
   <h3>CSCI E-12: Fundamentals of Website Development   </h3>
   <p>Harvard Extension School
     <br/>
David Heitmeyer
     <br/>
CSCI E-12
   </p>
   <p id="cscie12-description2">This course provides a comprehensive overview of website development. Students explore the prevailing vocabulary, tools, and standards used in the field and learn how the various facets—including HTML5, CSS, JavaScript, Ajax, multimedia, scripting languages, HTTP, clients, servers, and databases—function together in today's web environment. The course provides a solid web development foundation, focusing on content and client-side (browser) components (HTML5, CSS, JavaScript, multimedia), with an overview of the server-side technologies. In addition, software and services that are easily incorporated into a website (for example, maps, checkout, blogs, content management) are surveyed and discussed. Students produce an interactive website on the topic of their choice for the final project and leave the course prepared for more advanced and focused web development studies.
   </p>
 </div>
 <div style="width: 30%; float: left; margin-left: 2em;">
   <p>
     <strong>Hide/Show/Toggle Description     </strong>
   </p>
   <ul>
     <li>
       <a href="#" id="hide">Hide       </a>
     </li>
     <li>
       <a href="#" id="show">Show       </a>
     </li>
     <li>
       <a href="#" id="toggle">Toggle       </a>
     </li>   </ul>
 </div>

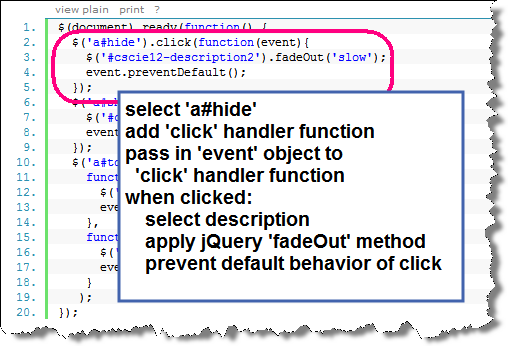

In script element within head element (<script>):

$(document).ready(function() {
             $('#hide').click(
              function(event){
                $('#cscie12-description2').fadeOut('slow');
                event.preventDefault();
              }
             );
             $('#show').click(
              function(event){
                $('#cscie12-description2').fadeIn('slow');
                event.preventDefault();
              }
             );
             $('#toggle').click(
              function(event) {
                console.log('toggle!');
                $('#cscie12-description2').toggle('slow');
                event.preventDefault();
              }
             );
           });


jquery

jQuery and Ice Cream

JavaScript

Ice Cream and JavaScript

document.addEventListener("DOMContentLoaded", function(){
/* js to be executed when dom is loaded goes here */

  let iceCreamOptions = document.getElementById("icecream_options_v2");
  let wantRadioButtons = document.querySelectorAll("form input[name=want]");

  let icoClasses = iceCreamOptions.classList;
  icoClasses.add("collapsed");

  for (let radio of wantRadioButtons) {
    radio.addEventListener("click",function(){
      let yesRadio = document.getElementById("ic_yes");
      if (yesRadio.checked == true) {
        icoClasses.remove("collapsed");
      } else {
        icoClasses.add("collapsed");
      }
    })
  }

});

jQuery

Ice Cream and jQuery

$(document).ready(function(){
  console.log("jQuery ready!");
  let iceCreamOptions = $("#icecream_options_v2");
  let wantRadioButtons = $("#form input[name=want]");

  iceCreamOptions.addClass("collapsed");
  yesRadio = $('#ic_yes');
  $("form input[name=want]").click( function(){
    if (yesRadio.is(':checked') == true) {
      iceCreamOptions.removeClass("collapsed");
    } else {
      iceCreamOptions.addClass("collapsed");
    }
  })
});

jQuery Plugins

Tablesorter

tablesorter is a jQuery plugin for turning a standard HTML table with THEAD and TBODY tags into a sortable table without page refreshes. tablesorter can successfully parse and sort many types of data including linked data in a cell.

$(document).ready(function(){
    $("#senatetable").tablesorter(
      {
        "theme"   : "blue",
        "widgets" : ["zebra"]
      }
    );
});

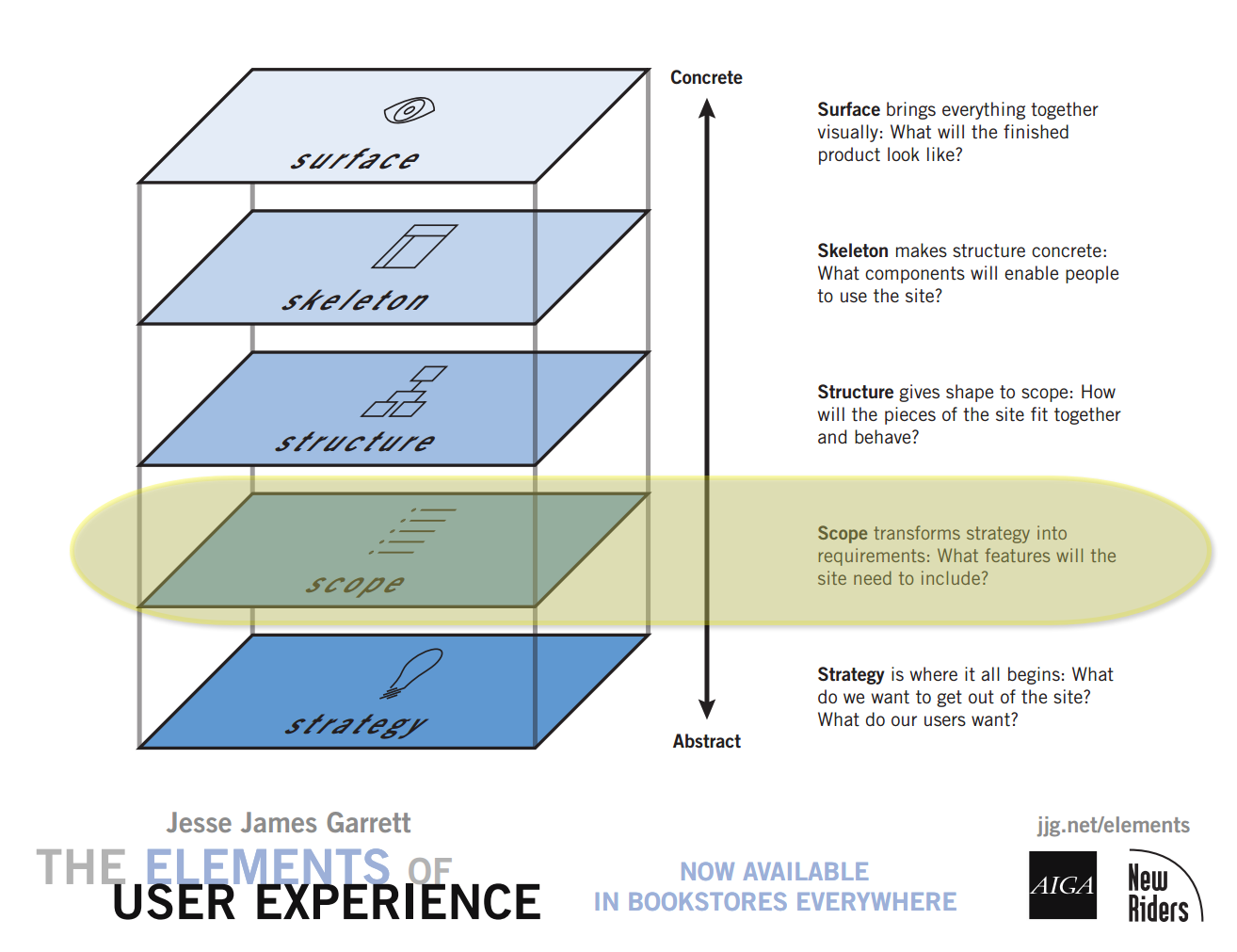

Scope

Define content or functionality requirements.

What's "in" and what's "out" -- or at least what's "later".

Start broad, then narrow and refine.

scope

Content

Questions to ask about content:

Approaching a Project

Think About the User

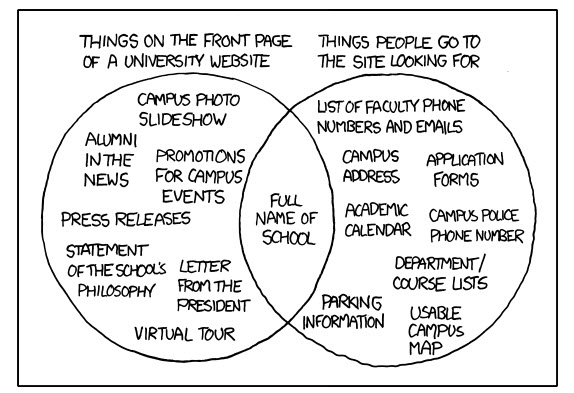

Thing on the front page of a university website

Structure

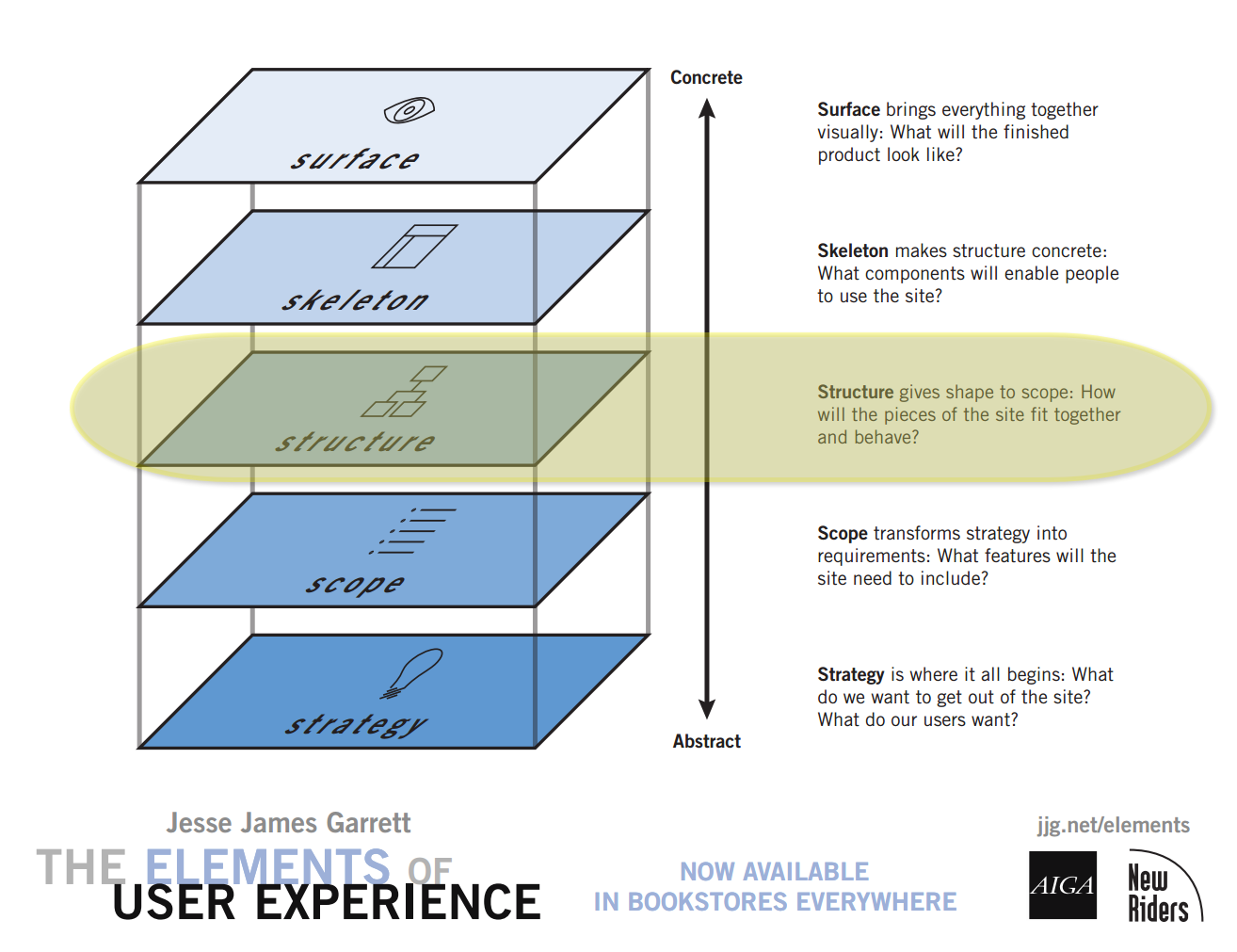

structure

Structuring Content

From Information Architecture for the World Wide Web (available through Harvard Libraries):

information architecture defined:

  1. The structural design of shared information environments.
  2. The combination of organization, labeling, search, and navigation systems within web sites and intranets.
  3. The art and science of shaping information products and experiences to support usability and findability.
  4. An emerging discipline and community of practice focused on bringing principles of design and architecture to the digital landscape.

Organize, Label, (Navigate)

Organize

Plan for Growth

add new content

How to?

Structural Models

Hierarchical

hierarchical

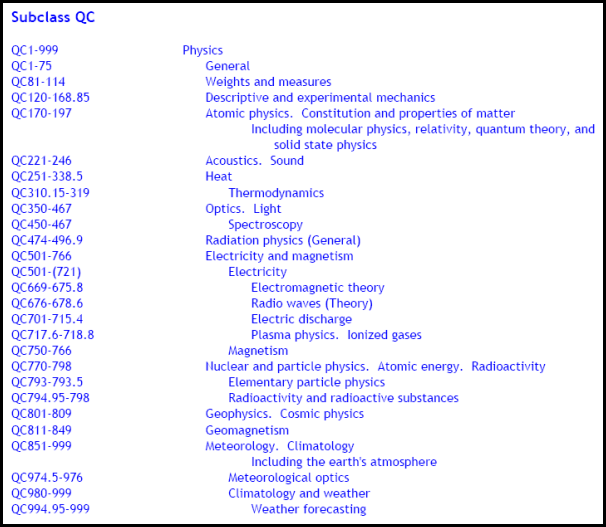

Library of Congress Classification

"Q" - Science
"QC" - Physics

lc system

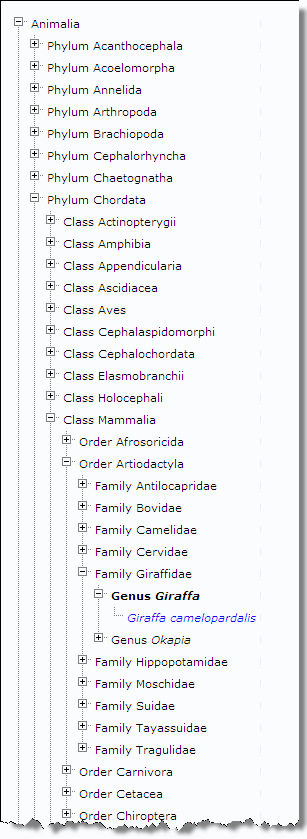

Biological

Catalog of Life
taxonomy

Too deep or too shallow?

Deep

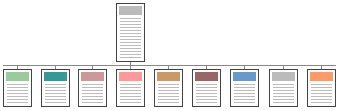

Too deep or too shallow?		Shallow
Too deep or too shallow?

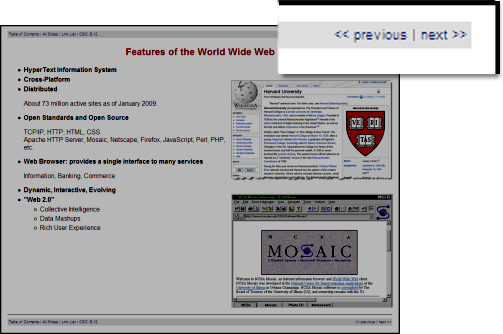

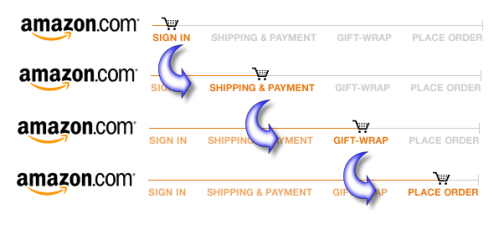

Sequential

lecture slide to illustrate sequential mode

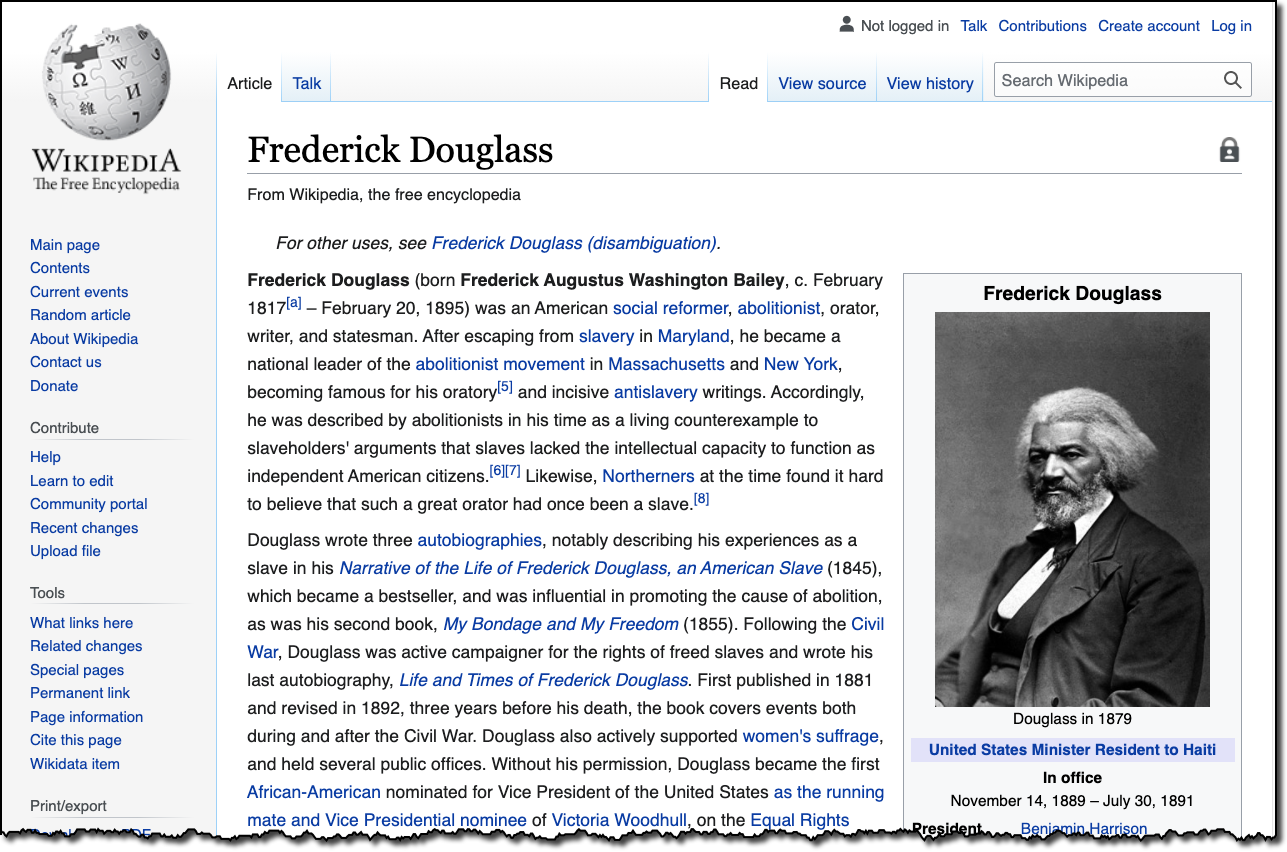

Organic

Wikipedia.com

webs

wikipedia web

Site Architecture

Label

Labels - Are there conventions?

Categories and Labels from News Sites

CNN
CNN

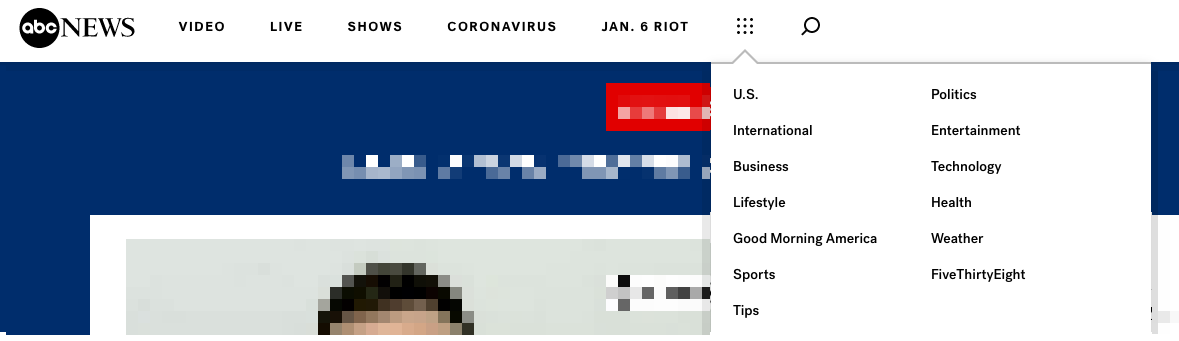

ABC News
ABC News

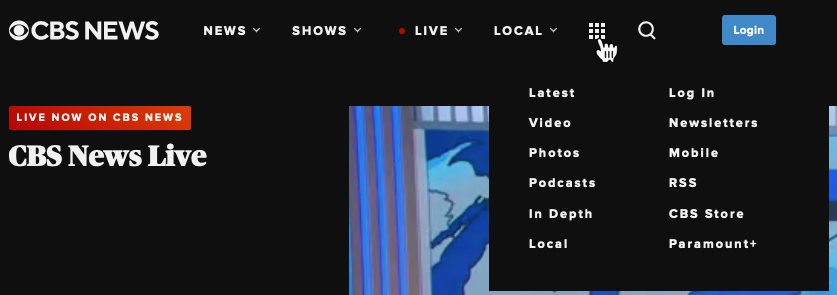

CBS
CBS

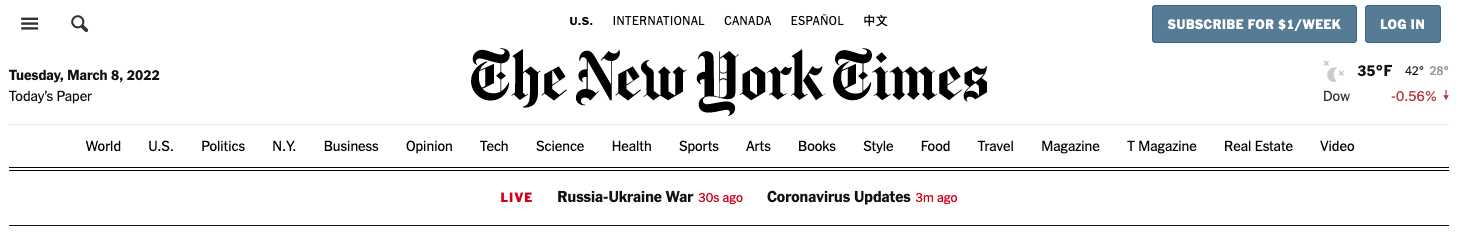

New York Times
NYT

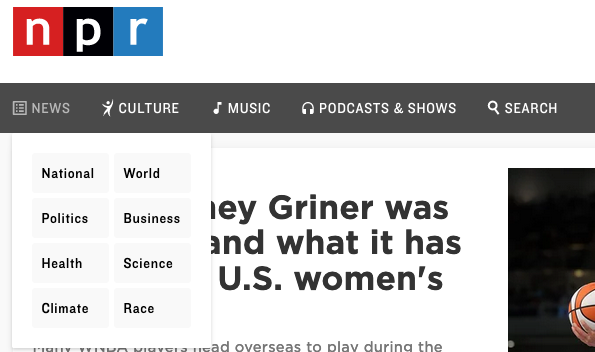

NPR
NPR

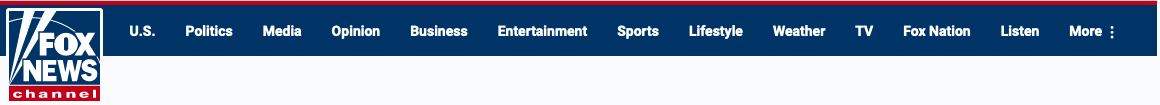

Fox News
Fox News

BBC
BBC

NBC
NBC

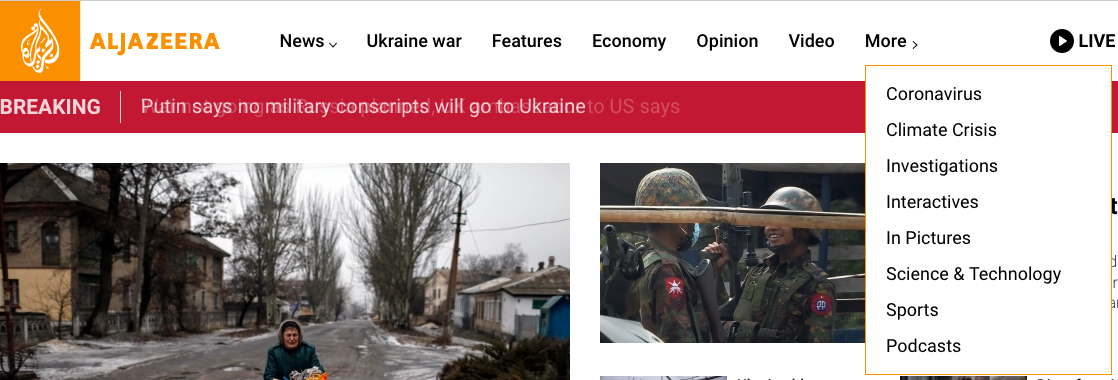

Al Jazerra
Al Jazeera

Nature of America - David's Final Project

Great Plains Prairie Stamp Pane

Strategy

Scope

Ideas for content/function for site:

For my project, I will focus on the home page, a page for the “Great Plains Prairie,” and one page that has a map showing where the first issue came from.

Structure

This site will be pretty “flat” in structure, as the main content pages will be for each of the 12 different stamp sheets; plus a map and an ‘about’ page. So three “areas” of the site as shown in the structure, but I plan on having the home page show all the stamps as well as link to the about and map pages.

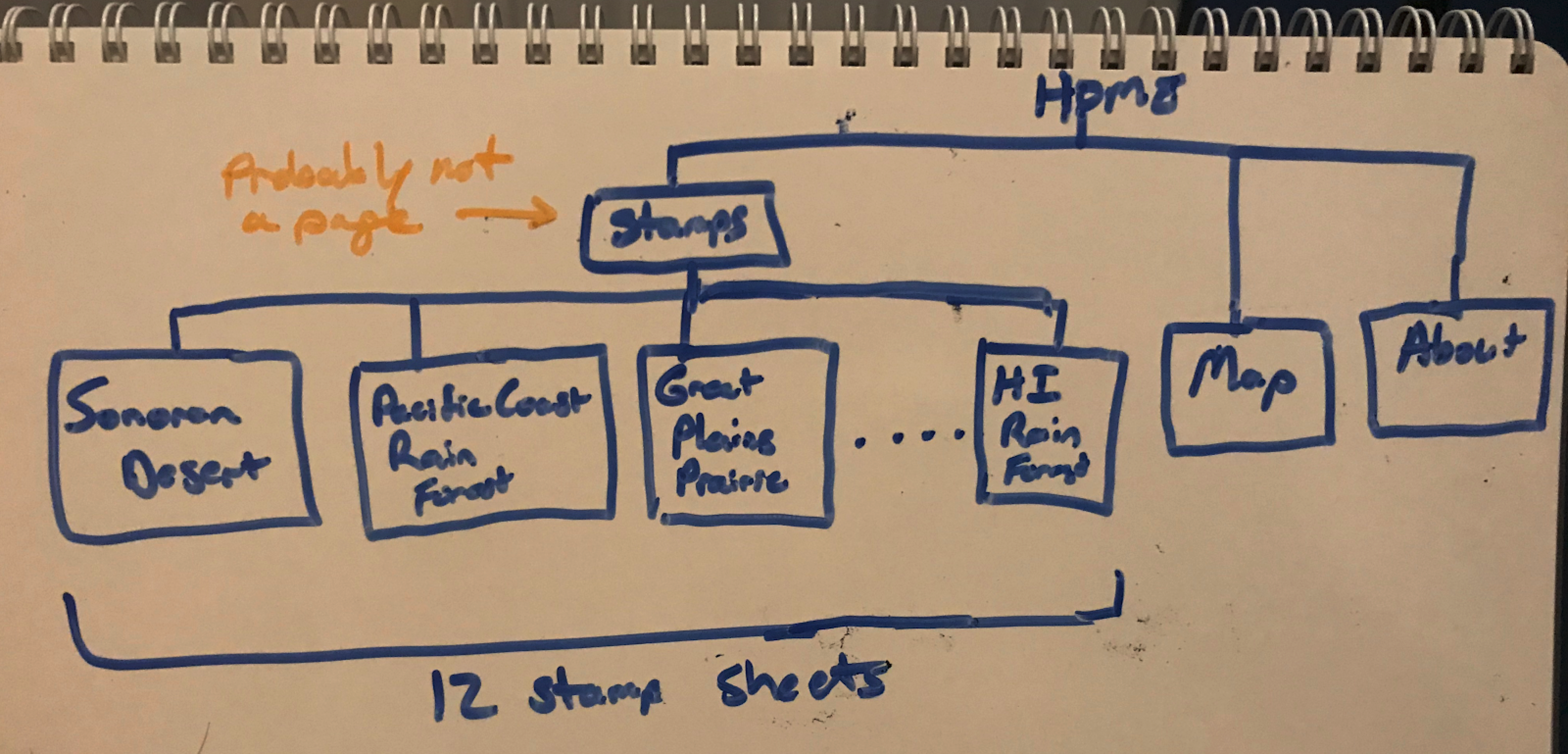

final project structure
