Session 03 - HTML Forms & Tables, Introduction to CSS

Harvard Extension School
Spring 2022

Course Web Site: https://cscie12.dce.harvard.edu/

Topics

  1. Markup Recap
  2. Accessibility
  3. Forms - Basic
  4. Accessibility: Label Element
  5. HTML5 forms
  6. Tables
  7. Accessibilty of Tables
  8. Presentation - Cascading Style Sheets (CSS)
  9. CSS Mechanics - rules and selectors
  10. Basic Selectors - elements, class, id
  11. CSS Properties and Values
  12. Box Model or Block Model
  13. display property
  14. Tools: Your Browser

Session 03 - HTML Forms & Tables, Introduction to CSS, slide1
Markup Recap, slide2
Components of HTML Elements, slide3
Essential HTML5 Document Structure, slide4
Accessibility, slide5
Forms - Basic, slide6
Forms, slide7
Forms, slide8
form, slide9
HTTP Method: Get vs. Post, slide10
Text Field, slide11
Radio Buttons, slide12
Checkbox, slide13
Textarea, slide14
Select and Option, slide15
Accessibility: Label Element, slide16
Accessibility: Label Element, slide17
Label Element - using id, label, for, slide18
Labels, slide19
fieldset and legend, slide20

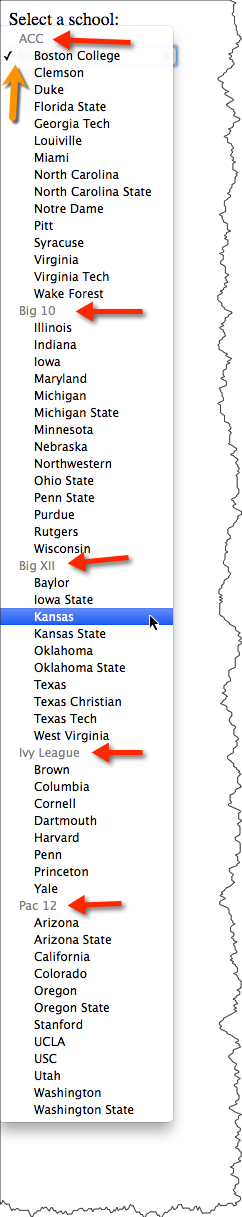

optgroup, slide21
HTML5 forms, slide22

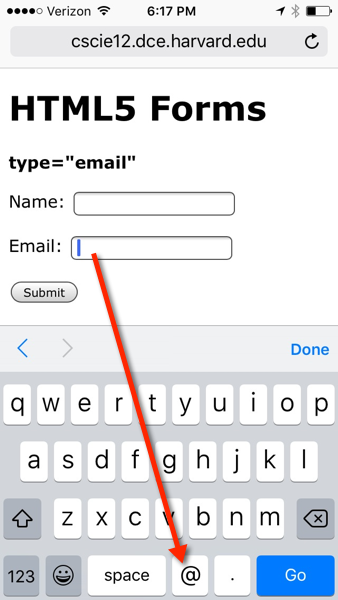

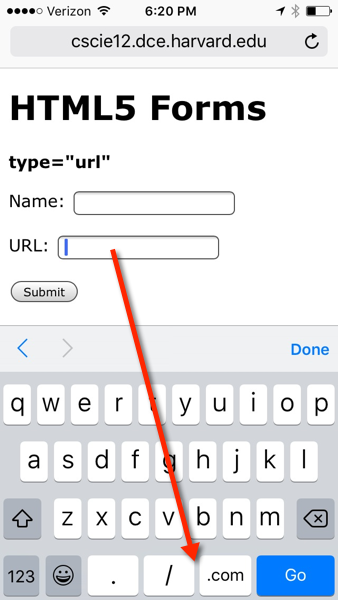

HTML5: email and url, slide23

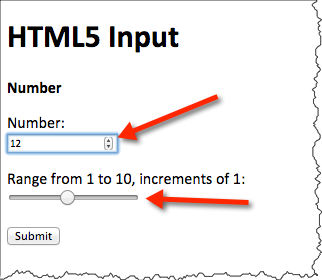

HTML5: number and range, slide24

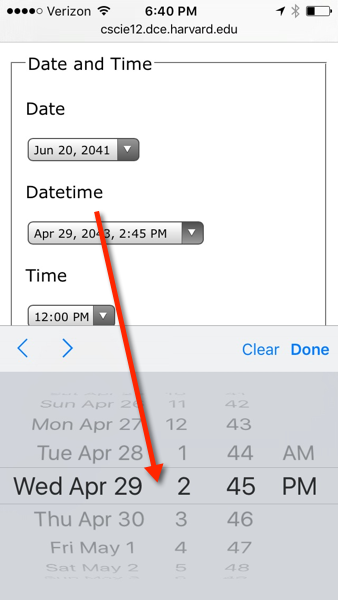

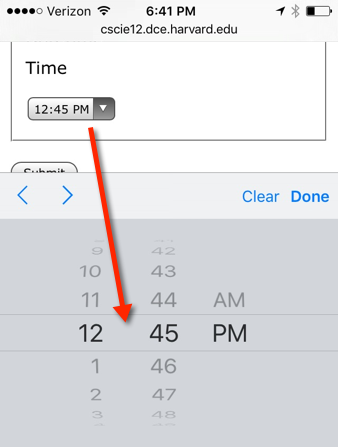

HTML5: date and time, slide25
submit.php -- it can do more!, slide26
Tables, slide27

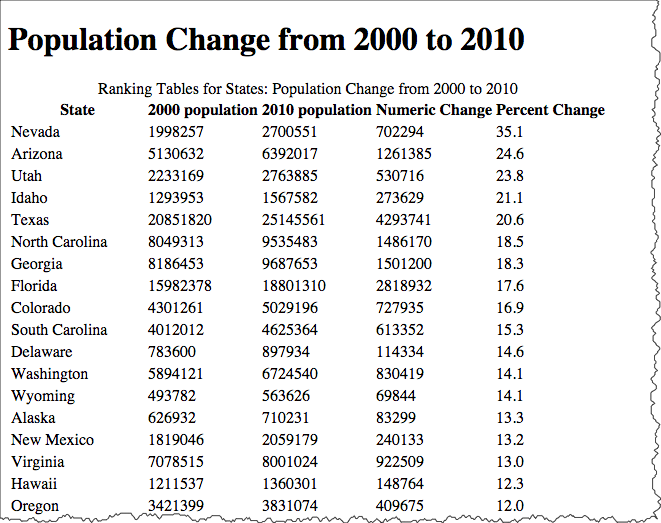

A Simple Table, slide28
Adding thead, tfoot, tbody, caption, and summary, slide29

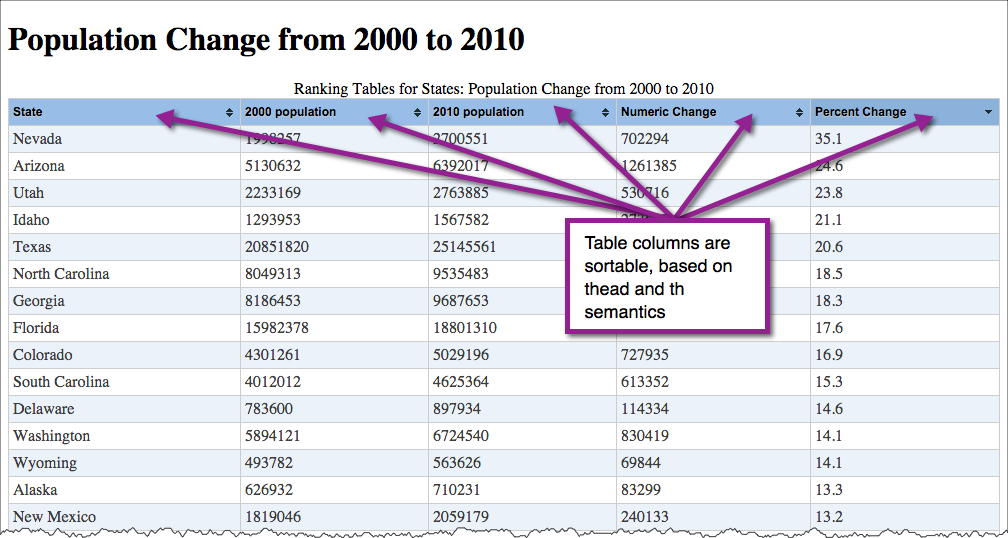

Benefits of Semantics, slide30
Using "col" and "colgroup", slide31

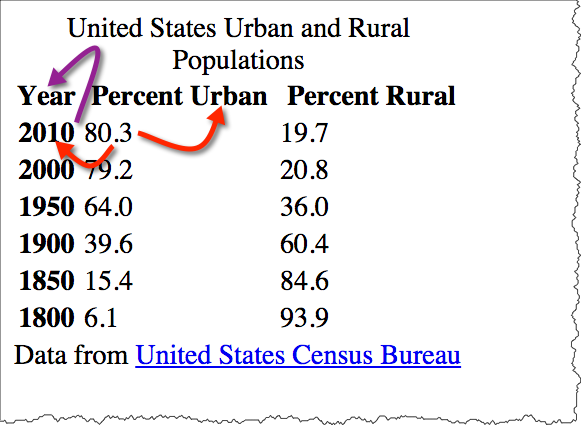

Accessibilty of Tables, slide32
Accessibility using "headers", slide33

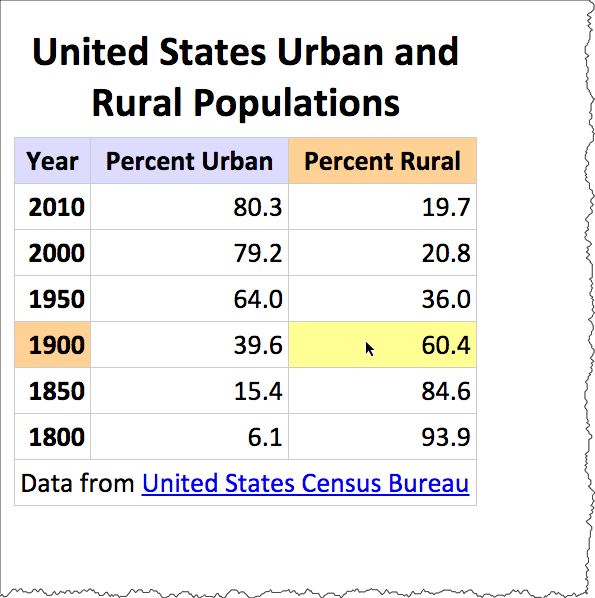

What can we do now that relationship is clear?, slide34
Presentation - Cascading Style Sheets (CSS), slide35

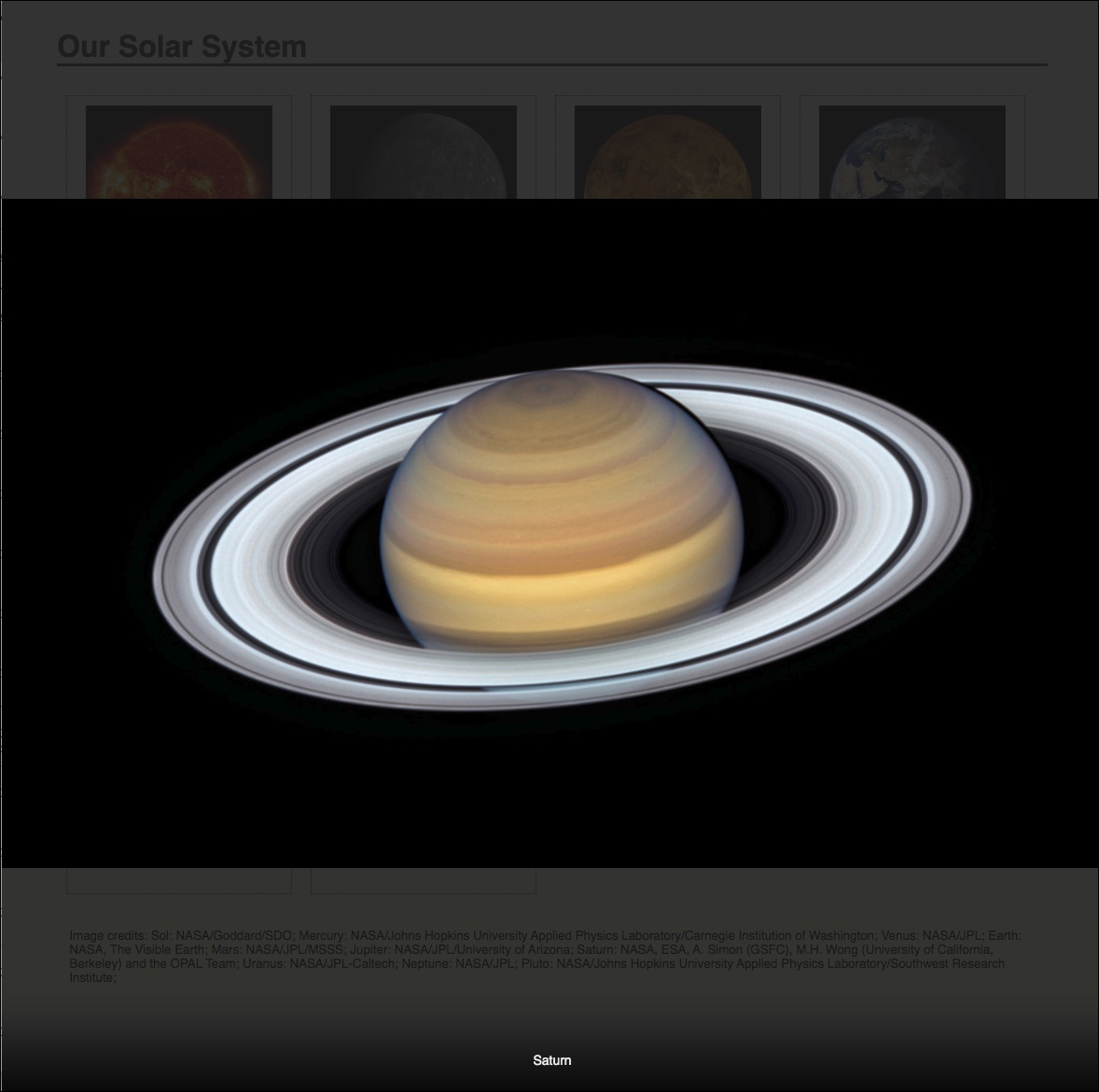

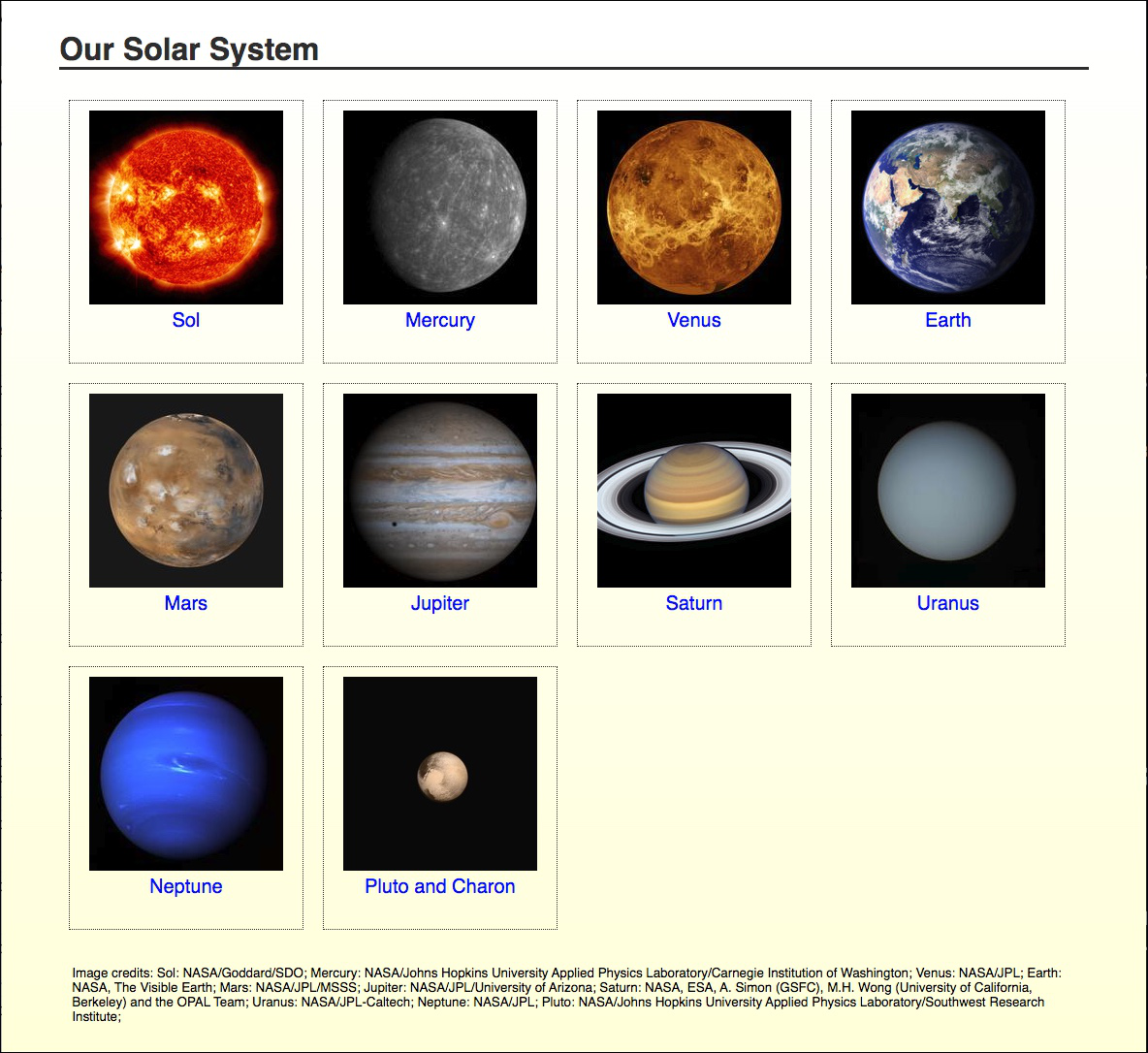

Markup, Presentation, Function, slide36
Styles, slide37

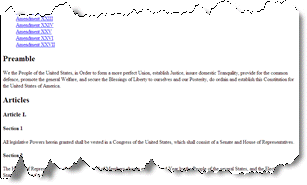

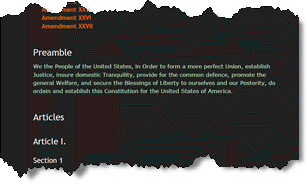

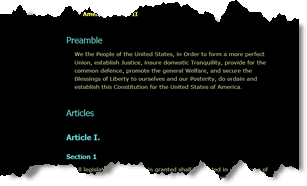

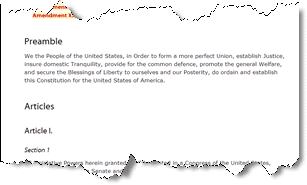

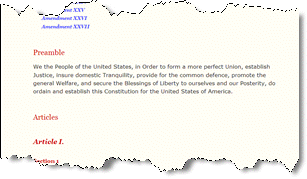

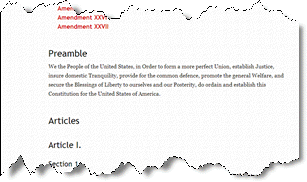

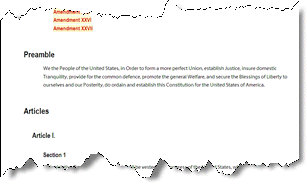

Different Styles for The United States Constitution, slide38

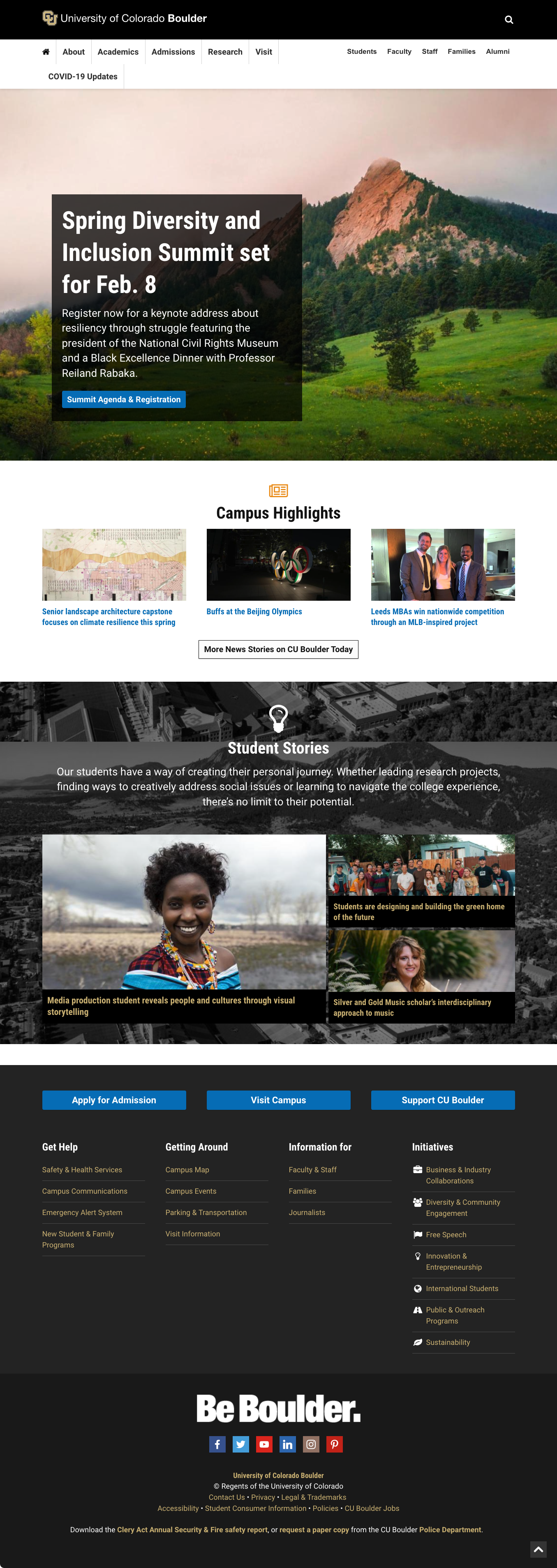

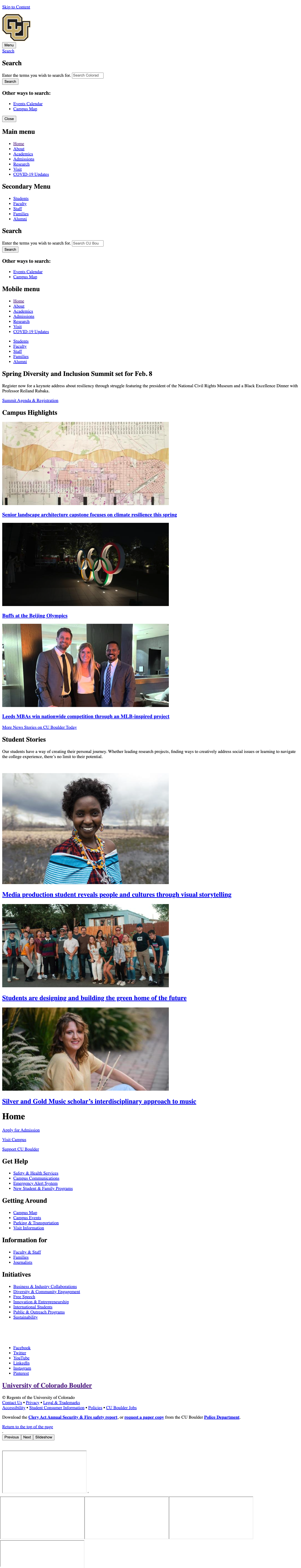

University of Colorado - Boulder, slide39

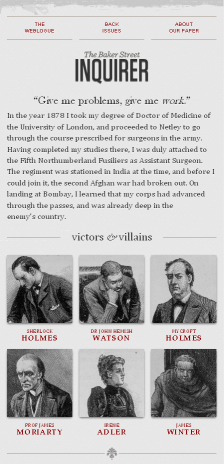

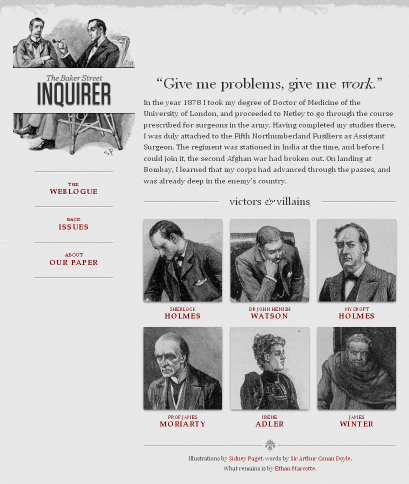

Responsive Web Design, slide40
CSS Recommendations from the W3C, slide41
CSS Mechanics - rules and selectors, slide42

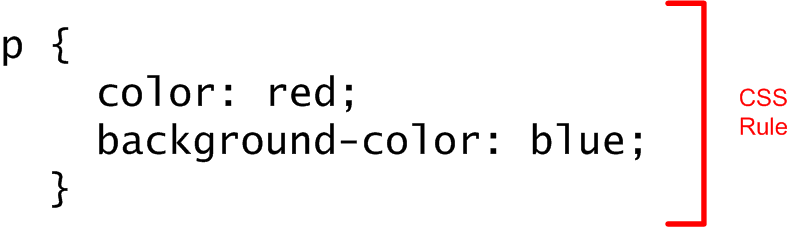

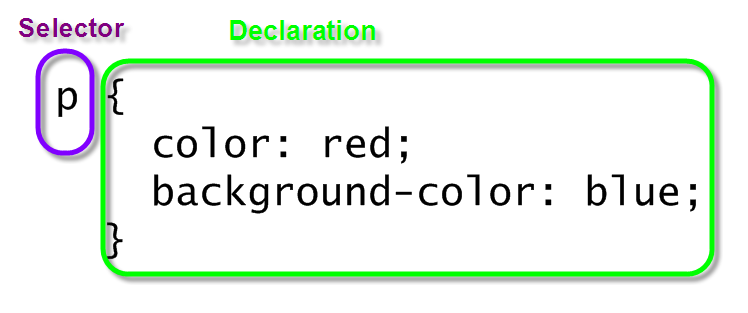

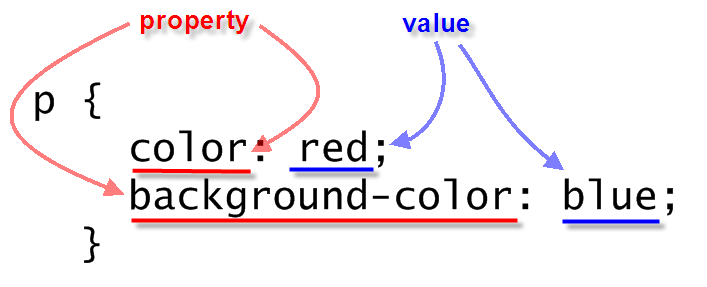

Anatomy of a CSS Rule, slide43
Simple CSS Example, slide44
CSS Mechanics - Binding Styles to Markup, slide45
style attribute, slide46
style element, slide47
link element, slide48
Combining Rules, slide49
Combining Selectors, slide50
Basic Selectors - elements, class, id, slide51

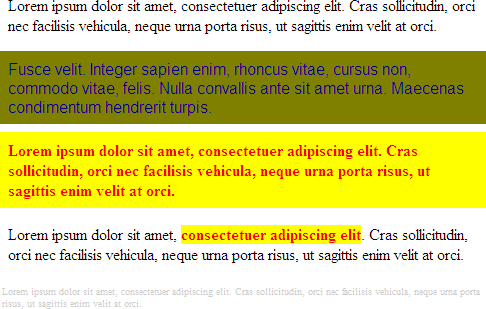

class selectors, slide52
id selectors, slide53
Contextual Selectors, slide54
CSS Properties and Values, slide55
Inheritance, slide56
Sample "UA" default stylesheets for HTML 2.0 and HTML 4.0, slide57
font properties, slide58
font-family, slide59
font-style, slide60
font-variant and font-weight, slide61
font-size, slide62
Font Sizes: Relative vs. Absolute, slide63
font, slide64
text properties, slide65
CSS Values and Units, slide66
Color Units, slide67
Colorpicker, slide68

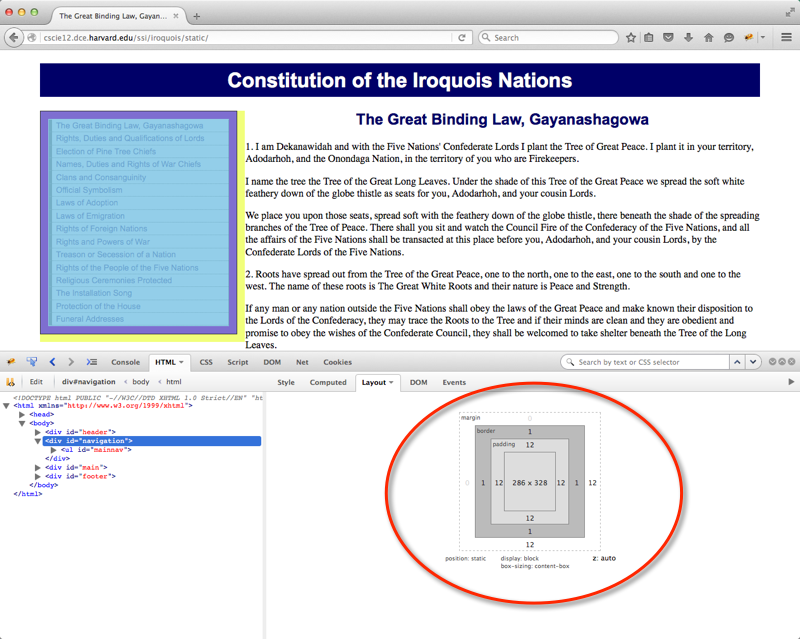

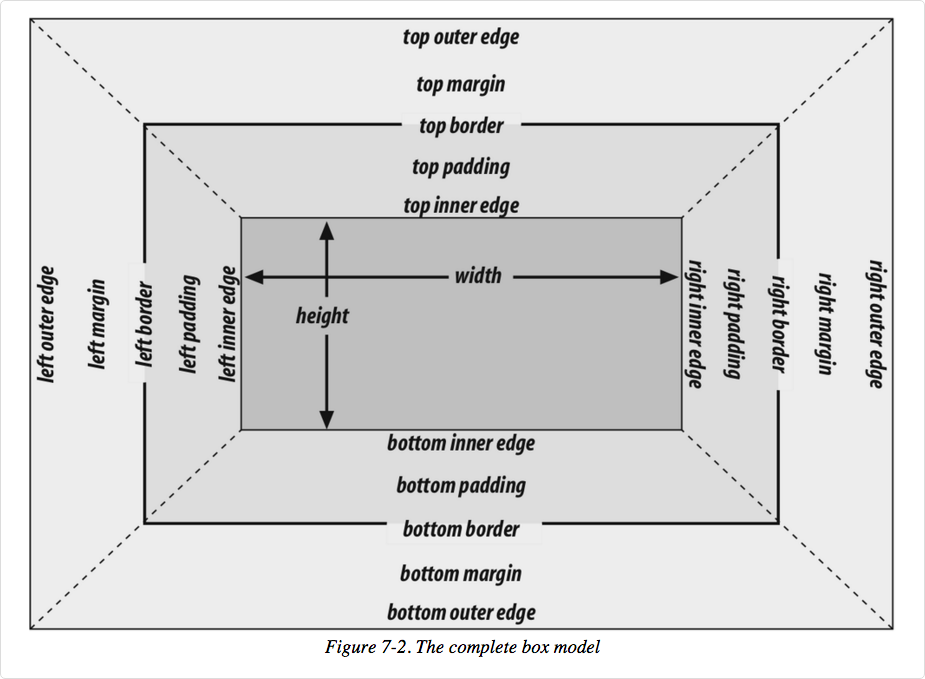

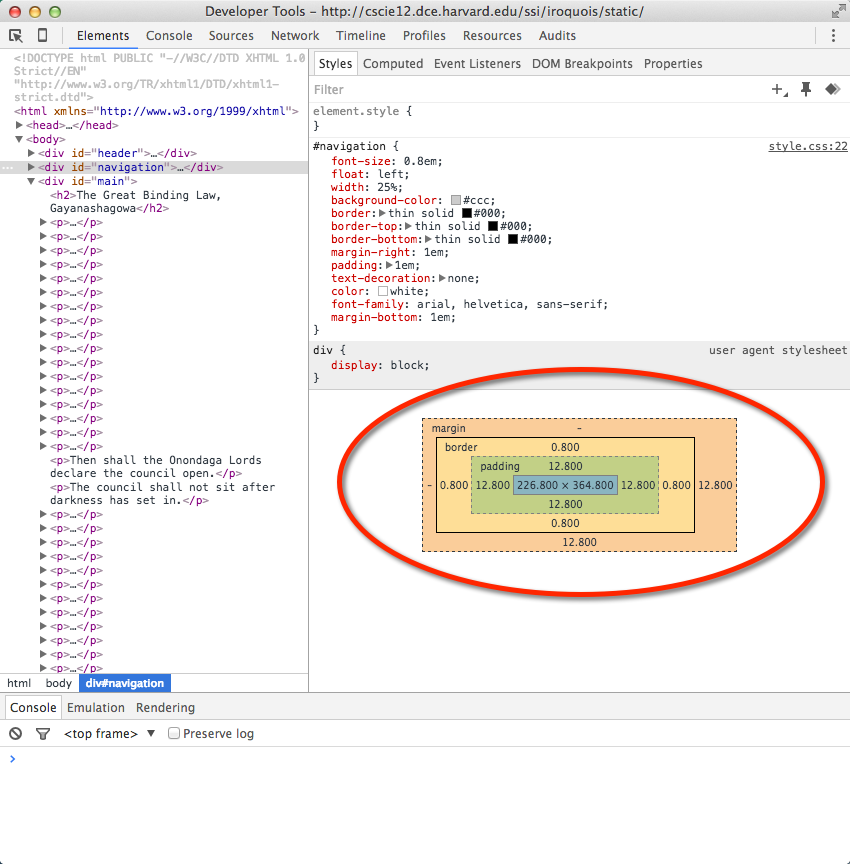

Box Model or Block Model, slide69
margin, padding, border, slide70
border-style, slide71
TRBL for padding and margin shorthand, slide72
Margin, Padding, Border Example, slide73
display property, slide74
Tools: Your Browser, slide75
Web Browsers and Layout Engines, slide76
Testdrive Your Browser, slide77

Presentation contains 77 slides

Markup Recap

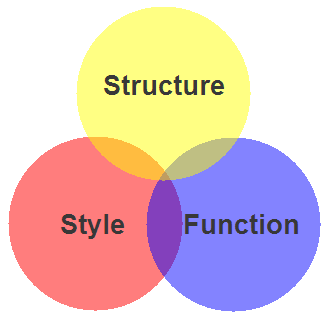

web parts

Components of HTML Elements

Markup for a Hypertext link:

<a href="http://www.harvard.edu/">Harvard</a>

How it would render in a web browser:
Harvard Link in a web browser

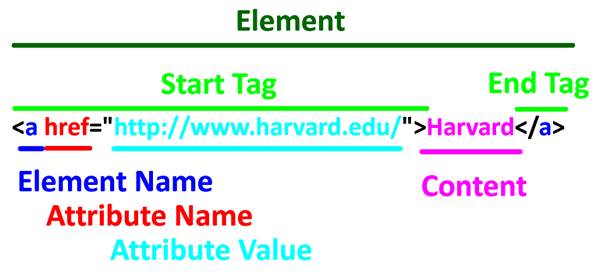

element anatomy


Start Tag
<a href="http://www.harvard.edu/">Harvard</a>

Element Name
<a href="http://www.harvard.edu/">Harvard</a>

Attribute
<a href="http://www.harvard.edu/">Harvard</a>

Attribute Value
<a href="http://www.harvard.edu/">Harvard</a>

Content
<a href="http://www.harvard.edu/">Harvard</a>

End Tag
<a href="http://www.harvard.edu/">Harvard</a>

Essential HTML5 Document Structure

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <title>Document Title</title>
  </head>
  <body>
    <header><!-- page header --></header>
    <main><!-- main content of page --></main>
    <footer><!-- page footer --></footer>
  </body>
</html>

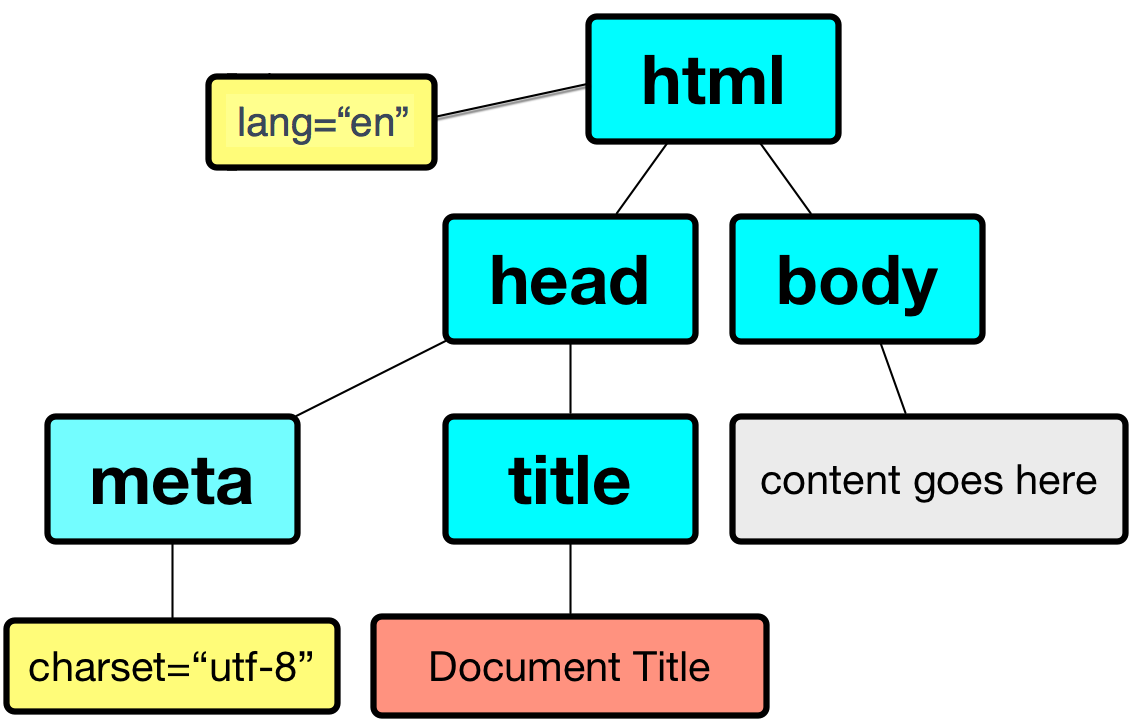

html5 skeleton nodes


Accessibility

W3C: Web Accessibility Initiative

Strategies, standards, and supporting resources to make the Web accessible to people with disabilities.

WebAIM

Forms - Basic

Two elements for forms are in our list of most commonly seen elements:

Forms

Forms are the "front-end" for the HTTP Client to send information back to the HTTP Server. The submitted information is passed from the HTTP Server to a server-side program that processes the information and produces a response for the browser.

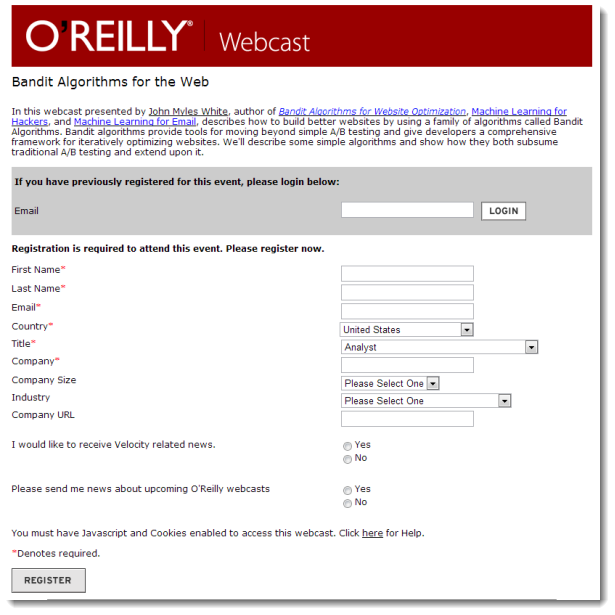

oreilly register for webcast form

Forms

Forms

form

Attributes
Each element within a form has a name associated with it. When the information is sent back to the server, the CGI program will access the information by name. Thus, the front-end form and the back-end program must use the same names.

While exploring forms, it is useful to use a simple server-side script that simply echo back the name/value information your form submitted (https://cs12.net/form/submit.php).

Example 3.1 - Simple form - Example 3.1

 <form method="post" action="https://cs12.net/form/submit.php">Email Address:
   <input type="text" name="email"/>

   <br/>

   <button type="submit">Submit   </button>
 </form>
Email Address:


HTTP Method: Get vs. Post

get: form information sent from browser to server as part of query string, visible in the URL
post: form information sent from browser to server as part of HTTP body; not in URL
Example 3.2 - Simple for using 'get' - Example 3.2

 <form method="get" action="https://cs12.net/form/submit.php">Email Address:
   <input type="text" name="email"/>

   <br/>

   <button type="submit">Submit   </button>
 </form>
Email Address:

Example 3.3 - Simple form using 'post' - Example 3.3

 <form method="post" action="https://cs12.net/form/submit.php">Email Address:
   <input type="text" name="email"/>

   <br/>

   <button type="submit">Submit   </button>
 </form>
Email Address:


Text Field

Example 3.4 - Form: text input - Example 3.4

 <form method="get" action="https://cs12.net/form/submit.php">Email Address:
   <input type="text" name="email"/>

   <br/>
Year of Birth:
   <input type="text" name="year_of_birth" maxlength="4"/>

   <br/>

   <button type="submit">Submit Information   </button>
 </form>
Email Address:
Year of Birth:


Radio Buttons

Example 3.5 - Form: radio buttons - Example 3.5

 <form method="get" action="https://cs12.net/form/submit.php">Email Address:
   <input type="text" name="email"/>

   <br/>
Please send me email updates:
   <br/>

   <input type="radio" name="sendupdates" value="yes" checked="checked"/>
yes
   <br/>

   <input type="radio" name="sendupdates" value="no"/>
no
   <br/>

   <button type="submit">Submit Information   </button>
 </form>
Email Address:
Please send me email updates:
yes
no


Checkbox

Example 3.6 - Form: checkboxes - Example 3.6

 <form method="get" action="https://cs12.net/form/submit.php">What ice cream do you like?
   <br/>

   <input type="checkbox" name="icecream" value="chocolate"/>
Chocolate
   <br/>

   <input type="checkbox" name="icecream" value="chocolate peanut butter"/>
Chocolate Peanut Butter
   <br/>

   <input type="checkbox" name="icecream" value="vanilla"/>
Vanilla
   <br/>

   <input type="checkbox" name="icecream" value="strawberry"/>
Strawberry
   <br/>

   <button type="submit">Submit Information   </button>
 </form>
What ice cream do you like?
Chocolate
Chocolate Peanut Butter
Vanilla
Strawberry


Textarea

Example 3.7 - Form: textarea - Example 3.7

 <form method="post" action="https://cs12.net/form/submit.php">
   <strong>Comments   </strong>
   <textarea name="comments" rows="10" cols="50">Please enter comments...   </textarea>
   <button type="submit">Submit Information   </button>
 </form>

In style element (<style>) within head element:

textarea {
        display: block;
        margin: 1rem 0;
}
Comments


Select and Option

Pull-down menu

Example 3.8 - Pull-down List - Example 3.8

 <form method="get" action="https://cs12.net/form/submit.php">Select your favorite New England states:
   <br/>

   <select name="state">
     <option value="CT">Connecticut     </option>
     <option value="ME">Maine     </option>
     <option value="MA">Massachusetts     </option>
     <option value="NH">New Hampshire     </option>
     <option value="RI">Rhode Island     </option>
     <option value="VT">Vermont     </option>   </select>
   <br/>

   <button type="submit">Submit Information   </button>
 </form>
Select your favorite New England states:



Scrollable list ← DON'T DO THIS!

Note: because scrollable lists are difficult for users, they are not typically used.

A scrollable list (size attribute) that can have multiple selections (multiple attribute):

Example 3.9 - Scrollable List - Example 3.9

 <form method="get" action="https://cs12.net/form/submit.php">Select your favorite New England states:
   <br/>

   <select name="state" size="3" multiple="multiple">
     <option value="CT">Connecticut     </option>
     <option value="ME">Maine     </option>
     <option value="MA">Massachusetts     </option>
     <option value="NH">New Hampshire     </option>
     <option value="RI">Rhode Island     </option>
     <option value="VT">Vermont     </option>   </select>
   <br/>

   <button type="submit">Submit Information   </button>
 </form>
Select your favorite New England states:



Accessibility: Label Element

Label elements are critical for form accessibility.

label element lets us use markup to associate text with an input element.

Using label you can make the association between the text label and the form input explicit, and not just rely on the visual proximity.

Labels - Why?

Accessibility: Label Element

Example 3.10 - Form Labels - Example 3.10

 <form method="get" action="https://cs12.net/form/submit.php">
   <p>Do you like to watch NCAA basketball?
   </p>
   <label>
     <input type="radio" name="basketball" value="Y"/>
Yes   </label>
   <label>
     <input type="radio" name="basketball" value="N"/>
No   </label>
   <button type="submit">Submit   </button>
 </form>

In style element (<style>) within head element:

label, button { display: block; }
  button { margin-top: 1rem;}

Do you like to watch NCAA basketball?



Label Element - using id, label, for

Example 3.11 - Form Labels - Example 3.11

 <form method="get" action="https://cs12.net/form/submit.php">
   <p>Do you like to watch NCAA basketball?
   </p>
   <input type="radio" name="basketball" id="basketball_y" value="Y"/>

   <label for="basketball_y">Yes   </label>
   <br/>

   <input type="radio" name="basketball" id="basketball_n" value="N"/>

   <label for="basketball_n">No   </label>
   <br/>

   <input type="submit" value="Submit"/>

 </form>

Do you like to watch NCAA basketball?

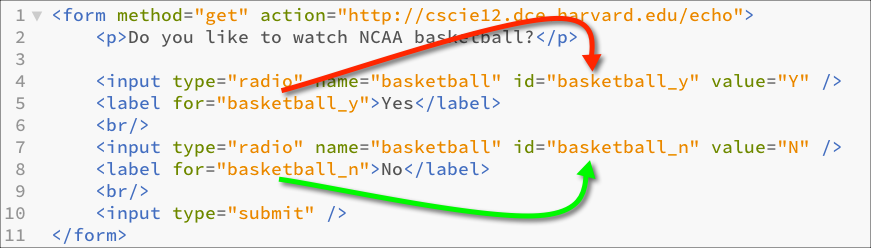

form labels

Labels

Example 3.12 - Form Labels - Example 3.12

 <form method="get" action="https://cs12.net/form/submit.php">
   <div>What ice cream do you like?
     <br/>

     <input type="checkbox" name="icecream" id="icecream_chocolate" value="chocolate"/>

     <label for="icecream_chocolate">Chocolate     </label>
     <br/>

     <input type="checkbox" name="icecream" id="icecream_cpb" value="chocolate peanut butter"/>

     <label for="icecream_cpb">Chocolate Peanut Butter     </label>
     <br/>

     <input type="checkbox" name="icecream" id="icecream_vanilla" value="vanilla"/>

     <label for="icecream_vanilla">Vanilla     </label>
     <br/>

     <input type="checkbox" name="icecream" id="icecream_strawberry" value="strawberry"/>

     <label for="icecream_strawberry">Strawberry     </label>
     <br/>

     <button type="submit">Submit Information     </button>
   </div>
 </form>
What ice cream do you like?






fieldset and legend

Used to group related choices and even sets.

fieldset and legend elements can further help group related input fields.

Example 3.13 - Form fieldset and legend elements - Example 3.13

 <form method="get" action="https://cs12.net/form/submit.php">
   <div>
     <fieldset>
       <legend>Name       </legend>
       <label>First Name
         <input type="text" name="fname" size="30"/>
       </label>
       <label>Last Name
         <input type="text" name="lname" size="30"/>
       </label>     </fieldset>
     <fieldset>
       <legend>Sports       </legend>
       <fieldset>
         <legend>Do you like basketball?         </legend>
         <label>
           <input type="radio" name="basketball" value="Y"/>
Yes         </label>
         <label>
           <input type="radio" name="basketball" value="N"/>
No         </label>       </fieldset>
       <fieldset>
         <legend>Do you like baseball?         </legend>
         <label>
           <input type="radio" name="baseball" value="Y"/>
Yes         </label>
         <label>
           <input type="radio" name="baseball" value="N"/>
No         </label>       </fieldset>     </fieldset>
     <button type="submit">Submit     </button>
   </div>
 </form>

In style element (<style>) within head element:

label { display: block; }
fieldset { margin-top: 1rem;}
button { display: block; margin-top: 1rem; padding: 0.5rem 1rem;}
Name
Sports
Do you like basketball?
Do you like baseball?


optgroup

The optgroup element allows you to group a long select list.

Example 3.14 - Form: optgroup in pull-down menus - Example 3.14

 <p>Select a school:
 </p>
 <form method="get" action="https://cs12.net/form/submit.php">
   <select name="school">
     <optgroup label="ACC">
       <option>Boston College       </option>
       <option>Clemson       </option>
       <option>Duke       </option>
       <option>Florida State       </option>
       <option>Georgia Tech       </option>
       <option>Louiville       </option>
       <option>Miami       </option>
       <option>North Carolina       </option>
       <option>North Carolina State       </option>
       <option>Notre Dame       </option>
       <option>Pitt       </option>
       <option>Syracuse       </option>
       <option>Virginia       </option>
       <option>Virginia Tech       </option>
       <option>Wake Forest       </option>     </optgroup>
     <optgroup label="Big 10">
       <option>Illinois       </option>
       <option>Indiana       </option>
       <option>Iowa       </option>
       <option>Maryland       </option>
       <option>Michigan       </option>
       <option>Michigan State       </option>
       <option>Minnesota       </option>
       <option>Nebraska       </option>
       <option>Northwestern       </option>
       <option>Ohio State       </option>
       <option>Penn State       </option>
       <option>Purdue       </option>
       <option>Rutgers       </option>
       <option>Wisconsin       </option>     </optgroup>
     <optgroup label="Big XII">
       <option>Baylor       </option>
       <option>Iowa State       </option>
       <option>Kansas       </option>
       <option>Kansas State       </option>
       <option>Oklahoma       </option>
       <option>Oklahoma State       </option>
       <option>Texas       </option>
       <option>Texas Christian       </option>
       <option>Texas Tech       </option>
       <option>West Virginia       </option>     </optgroup>
     <optgroup label="Ivy League">
       <option>Brown       </option>
       <option>Columbia       </option>
       <option>Cornell       </option>
       <option>Dartmouth       </option>
       <option>Harvard       </option>
       <option>Penn       </option>
       <option>Princeton       </option>
       <option>Yale       </option>     </optgroup>
     <optgroup label="Pac 12">
       <option>Arizona       </option>
       <option>Arizona State       </option>
       <option>California       </option>
       <option>Colorado       </option>
       <option>Oregon       </option>
       <option>Oregon State       </option>
       <option>Stanford       </option>
       <option>UCLA       </option>
       <option>USC       </option>
       <option>Utah       </option>
       <option>Washington       </option>
       <option>Washington State       </option>     </optgroup>   </select>
   <div>
     <button type="submit">Submit     </button>
   </div>
 </form>

Select a school:



optgroup illustration

optgroup illustration

HTML5 forms

HTML5 forms - placeholder, autofocus, and specific input types

HTML5: email and url

On handheld devices, screen keyboard is optimized for input.

type="email"

Example 3.15 - text input for email - Example 3.15

 <form action="https://cs12.net/form/submit.php" method="post">
   <label>Email:
     <input type="email" name="email_address"/>
   </label>
   <button type="submit">Submit   </button>
 </form>

In style element (<style>) within head element:

label, button { display: block; margin-top: 1rem;}


Screenshot

type="url"

Example 3.16 - text input for URLs - Example 3.16

 <form action="https://cs12.net/form/submit.php" method="post">
   <label>URL:
     <input type="url" name="url"/>
   </label>
   <button type="submit">Submit   </button>
 </form>

In style element (<style>) within head element:

label, button { display: block; margin-top: 1rem;}


Screenshot

Screenshot

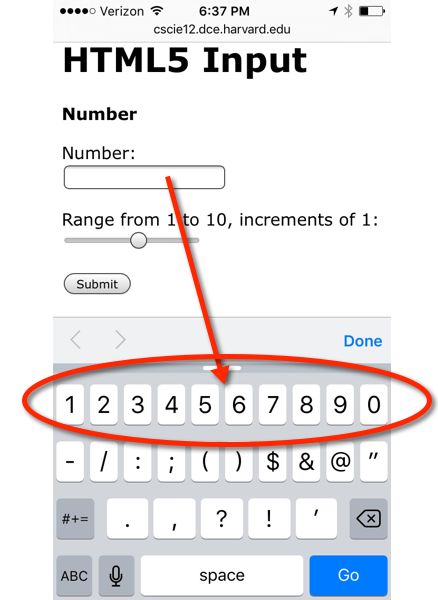

HTML5: number and range

Example 3.17 - HTML5 input type='number' and type='range' - Example 3.17

 <form action="https://cs12.net/form/submit.php" method="post">
   <label>Pick a number:
     <input type="number" name="entered_number"/>
   </label>
   <label>How happy are you?
     <input type="range" min="1" max="5" value="3" step="1" name="happy"/>
   </label>
   <button type="submit">Submit   </button>
 </form>

In style element (<style>) within head element:

label, button { display: block; margin-top: 1rem;}
input { display: block; }


Screenshot

Screenshot

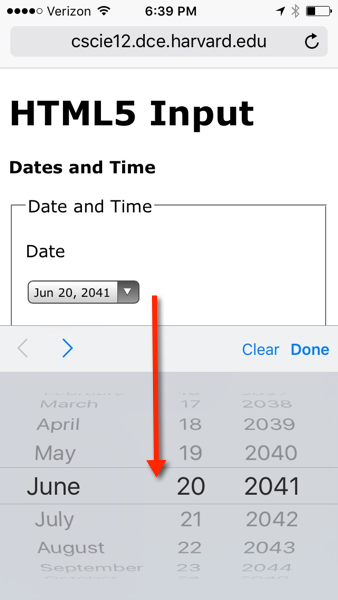

HTML5: date and time

Example 3.18 - HTML5 input types for date and time - Example 3.18 | Example 3.18 JSFiddle

 <form action="https://cs12.net/form/submit.php" method="post">
   <fieldset>
     <legend>Date and Time     </legend>
     <label>Pick a date:
       <input type="date" name="my_date"/>
     </label>
     <label>Pick a datetime
       <input type="datetime-local" name="my_datetime"/>
     </label>
     <label>Pick a time (15 minute increments)
       <input type="time" name="my_time_15" step="900" value="12:00"/>
     </label>
     <label>Pick a time (1 minute increments)
       <input type="time" name="my_time_1" step="60" value="12:00"/>
     </label>
     <label>Pick a time (1 second increments)
       <input type="time" name="my_time_1s" step="1" value="12:00"/>
     </label>   </fieldset>
   <button type="submit">Submit   </button>
 </form>

In style element (<style>) within head element:

label, button { display: block; margin-top: 1rem;}
        input { display: block;  margin-top: 0.25rem;}
Date and Time


Screenshot

Screenshot

Screenshot

Screenshot

submit.php -- it can do more!

Tables

See: Tabular Data from HTML5 Specification

Uses of Tables

Table Elements

table , caption , colgroup , col , tbody , thead , tfoot , tr , td , th

Example 3.19 - Table - Example 3.19 | Example 3.19 JSFiddle

 <table>
   <caption>A table   </caption>
   <tr>
     <th>Column 1     </th>
     <th>Column 2     </th>
     <th>Column 3     </th>   </tr>
   <tr>
     <td>row 1 column 1     </td>
     <td>row 1 column 2     </td>
     <td>row 1 column 3     </td>   </tr>
   <tr>
     <td>row 2 column 1     </td>
     <td>row 2 column 2     </td>
     <td>row 2 column 3     </td>   </tr>
   <tr>
     <td>row 3 column 1     </td>
     <td>row 3 column 2     </td>
     <td>row 3 column 3     </td>   </tr>
 </table>
A table
Column 1 Column 2 Column 3
row 1 column 1row 1 column 2row 1 column 3
row 2 column 1row 2 column 2row 2 column 3
row 3 column 1row 3 column 2row 3 column 3


A Simple Table

Data from the US Census Bureau

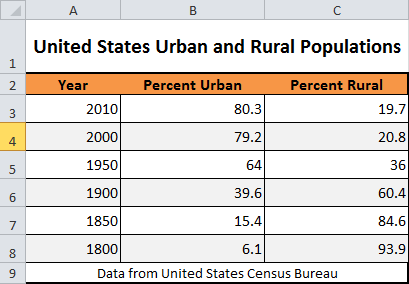

Table Data

Example 3.20 - Simple data table - Example 3.20 | Example 3.20 JSFiddle

 <p>United States Urban and Rural Populations
 </p>
 <table>
   <tr>
     <td>Year     </td>
     <td>Percent Urban     </td>
     <td>Percent Rural     </td>   </tr>
   <tr>
     <th>2010     </th>
     <td>80.3     </td>
     <td>19.7     </td>   </tr>
   <tr>
     <th>2000     </th>
     <td>79.2     </td>
     <td>20.8     </td>   </tr>
   <tr>
     <th>1950     </th>
     <td>64.0     </td>
     <td>36.0     </td>   </tr>
   <tr>
     <th>1900     </th>
     <td>39.6     </td>
     <td>60.4     </td>   </tr>
   <tr>
     <th>1850     </th>
     <td>15.4     </td>
     <td>84.6     </td>   </tr>
   <tr>
     <th>1800     </th>
     <td>6.1     </td>
     <td>93.9     </td>   </tr>
 </table>
 <p>Data from
   <a href="http://www.census.gov/">United States Census Bureau   </a>
 </p>

United States Urban and Rural Populations

YearPercent UrbanPercent Rural
201080.319.7
200079.220.8
195064.036.0
190039.660.4
185015.484.6
18006.193.9

Data from United States Census Bureau



Adding thead, tfoot, tbody, caption, and summary

Example 3.21 - Advanced Table - Example 3.21 | Example 3.21 JSFiddle

 <table summary="This table shows the percentage of the United States population that lived in urban and rural areas from 1800 to 2000.">
   <caption>United States Urban and Rural Populations   </caption>
   <thead>
     <tr>
       <th>Year       </th>
       <th>Percent Urban       </th>
       <th>Percent Rural       </th>     </tr>   </thead>
   <tfoot>
     <tr>
       <td colspan="3">Data from
         <a href="http://www.census.gov/">United States Census Bureau         </a>       </td>     </tr>   </tfoot>
   <tbody>
     <tr>
       <th>2010       </th>
       <td>80.3       </td>
       <td>19.7       </td>     </tr>
     <tr>
       <th>2000       </th>
       <td>79.2       </td>
       <td>20.8       </td>     </tr>
     <tr>
       <th>1950       </th>
       <td>64.0       </td>
       <td>36.0       </td>     </tr>
     <tr>
       <th>1900       </th>
       <td>39.6       </td>
       <td>60.4       </td>     </tr>
     <tr>
       <th>1850       </th>
       <td>15.4       </td>
       <td>84.6       </td>     </tr>
     <tr>
       <th>1800       </th>
       <td>6.1       </td>
       <td>93.9       </td>     </tr>   </tbody>
 </table>
United States Urban and Rural Populations
YearPercent UrbanPercent Rural
Data from United States Census Bureau
201080.319.7
200079.220.8
195064.036.0
190039.660.4
185015.484.6
18006.193.9


Benefits of Semantics

Semantics lets us selectively manipulate parts of the table -- whether for style or function.

plain table

plain table

Using "col" and "colgroup"

col and colgroup elements can be used to as a way to apply styles (style or class attribute) to columns.

Example 3.22 - 'colgroup' element - Example 3.22 | Example 3.22 JSFiddle

 <table>
   <caption>United States Urban and Rural Populations   </caption>
   <colgroup span="1">
     <col span="1" style="background-color: lightsalmon;"/>

     <col span="2" style="background-color: wheat;"/>
   </colgroup>
   <thead>
     <tr>
       <th scope="col">Year       </th>
       <th scope="col">Percent Urban       </th>
       <th scope="col">Percent Rural       </th>     </tr>   </thead>
   <tbody>
     <tr>
       <th scope="row">2010       </th>
       <td>80.3       </td>
       <td>19.7       </td>     </tr>
     <tr>
       <th scope="row">2000       </th>
       <td>79.2       </td>
       <td>20.8       </td>     </tr>
     <tr>
       <th scope="row">1950       </th>
       <td>64.0       </td>
       <td>36.0       </td>     </tr>
     <tr>
       <th scope="row">1900       </th>
       <td>39.6       </td>
       <td>60.4       </td>     </tr>
     <tr>
       <th scope="row">1850       </th>
       <td>15.4       </td>
       <td>84.6       </td>     </tr>
     <tr>
       <th scope="row">1800       </th>
       <td>6.1       </td>
       <td>93.9       </td>     </tr>   </tbody>
 </table>
United States Urban and Rural Populations
YearPercent UrbanPercent Rural
201080.319.7
200079.220.8
195064.036.0
190039.660.4
185015.484.6
18006.193.9


Accessibilty of Tables

Using "scope"

The "scope" attribute can be used to associate header information with columns and rows (and also column groups and row groups).

Example 3.23 - Table with 'scope' attribute - Example 3.23 | Example 3.23 JSFiddle

 <table>
   <caption>United States Urban and Rural Populations   </caption>
   <thead>
     <tr>
       <th scope="col">Year       </th>
       <th scope="col">Percent Urban       </th>
       <th scope="col">Percent Rural       </th>     </tr>   </thead>
   <tfoot>
     <tr>
       <td colspan="3">Data from
         <a href="http://www.census.gov/">United States Census Bureau         </a>       </td>     </tr>   </tfoot>
   <tbody>
     <tr>
       <th scope="row">2010       </th>
       <td>80.3       </td>
       <td>19.7       </td>     </tr>
     <tr>
       <th scope="row">2000       </th>
       <td>79.2       </td>
       <td>20.8       </td>     </tr>
     <tr>
       <th scope="row">1950       </th>
       <td>64.0       </td>
       <td>36.0       </td>     </tr>
     <tr>
       <th scope="row">1900       </th>
       <td>39.6       </td>
       <td>60.4       </td>     </tr>
     <tr>
       <th scope="row">1850       </th>
       <td>15.4       </td>
       <td>84.6       </td>     </tr>
     <tr>
       <th scope="row">1800       </th>
       <td>6.1       </td>
       <td>93.9       </td>     </tr>   </tbody>
 </table>
United States Urban and Rural Populations
YearPercent UrbanPercent Rural
Data from United States Census Bureau
201080.319.7
200079.220.8
195064.036.0
190039.660.4
185015.484.6
18006.193.9

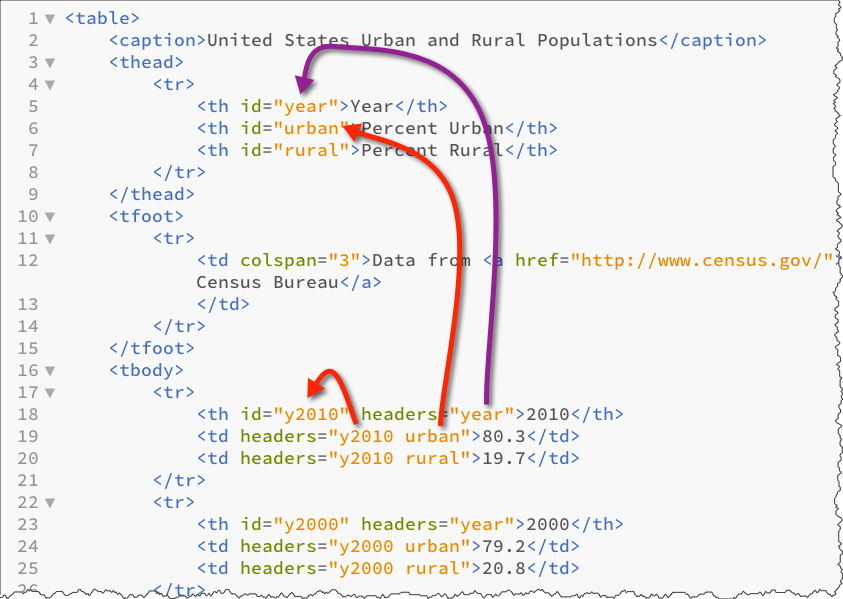

Accessibility using "headers"

The "headers" attribute can also be used to associate header information with columns and rows. This is typically used in more complicated tables.

id attribute. Note the use of the "id" attribute. This is an attribute that can be applied to most any HTML element. Values for "id" must be unique throughout the document.

The value of "headers" is a space-separated list of IDREFS (references to "id" names in the document).

table headerstable headers

Example 3.24 - Table with 'headers' attribute - Example 3.24

 <table>
   <caption>United States Urban and Rural Populations   </caption>
   <thead>
     <tr>
       <th id="year">Year       </th>
       <th id="urban">Percent Urban       </th>
       <th id="rural">Percent Rural       </th>     </tr>   </thead>
   <tfoot>
     <tr>
       <td colspan="3">Data from
         <a href="http://www.census.gov/">United States Census Bureau         </a>       </td>     </tr>   </tfoot>
   <tbody>
     <tr>
       <th id="y2010" headers="year">2010       </th>
       <td headers="y2010 urban">80.3       </td>
       <td headers="y2010 rural">19.7       </td>     </tr>
     <tr>
       <th id="y2000" headers="year">2000       </th>
       <td headers="y2000 urban">79.2       </td>
       <td headers="y2000 rural">20.8       </td>     </tr>
     <tr>
       <th id="y1950" headers="year">1950       </th>
       <td headers="y1950 urban">64.0       </td>
       <td headers="y1950 ruran">36.0       </td>     </tr>
     <tr>
       <th id="y1900" headers="year">1900       </th>
       <td headers="y1900 urban">39.6       </td>
       <td headers="y1900 rural">60.4       </td>     </tr>
     <tr>
       <th id="y1850" headers="year">1850       </th>
       <td headers="y1850 urban">15.4       </td>
       <td headers="y1850 rural">84.6       </td>     </tr>
     <tr>
       <th id="y1800" headers="year">1800       </th>
       <td headers="y1800 urban">6.1       </td>
       <td headers="y1800 rural">93.9       </td>     </tr>   </tbody>
 </table>
United States Urban and Rural Populations
YearPercent UrbanPercent Rural
Data from United States Census Bureau
201080.319.7
200079.220.8
195064.036.0
190039.660.4
185015.484.6
18006.193.9


What can we do now that relationship is clear?

Once semantic markup is in place, adding function with JavaScript becomes much easier. For example, we can write some JavaScript to highlight the column/row headings based on the presence of scope or headers attributes.

table with headers and js highlighting functionality

Live Example of Table Highlighting

Presentation - Cascading Style Sheets (CSS)

web parts

Markup, Presentation, Function

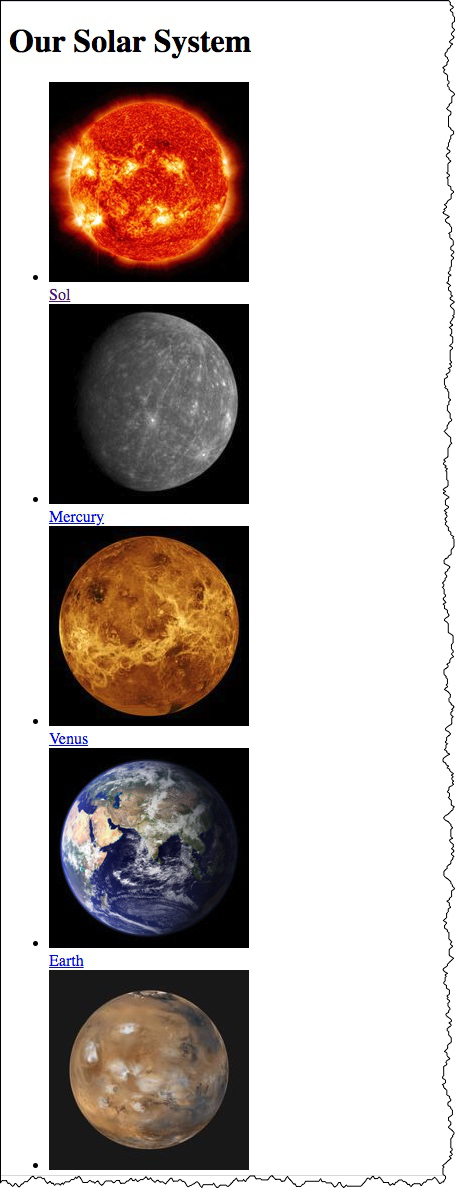

Markup

solarsystem-markup.html
markup

Styles

solarsystem-style.html
markup + style

Scripts

solarsystem.html
markup + style + function

Styles

The markup page references an external stylesheet document.

<!DOCTYPE html>
<html>
  <head>
    <title>Our Solar System</title>
    <!-- the link element is used to reference a stylesheet -->
    <link rel="stylesheet" href="styles/solarsystem.css" />


The CSS file contains style rules for the document (solarsystem.css)

Contents of the CSS file:
body {
  margin-left: 5%;
  margin-top: 2em;
  margin-right: 5%;
  background-image: linear-gradient(white, #ffffdd);
  background-color: #ffffdd;
  font-family: Calibri, Arial, sans-serif;
  height: 100vh;
}

h1 {
  font-family: Calibri, Arial, sans-serif;
  color: #333333;
  border-bottom: 3px solid #333333;
}

ul.gallery {
  list-style: none;
  padding: 0;
  margin: 0;
  display: flex;
  flex-wrap: wrap;
  justify-content: flex-start;
}

ul.gallery li {
  margin-top: 1em;
  font-size: 1.25em;
  height: 250px;
  width: 220px;
  flex-basis: 1 0 auto;
  text-align: center;
  border: thin dotted #333333;
  margin: 10px;
  padding: 10px;
}

ul.gallery li img {
  border: none;
}

footer {
  clear: both;
  margin-top: 2rem;
  padding: 1em;
  font-size: smaller;
}

a:link, a:visited {
  text-decoration: none;
  color: blue;
}

a:hover {
  text-decoration: underline;
}

a:active {
  border: none;
  text-decoration: none;
}

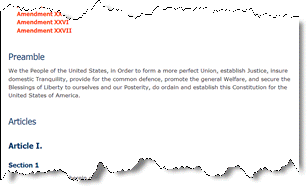

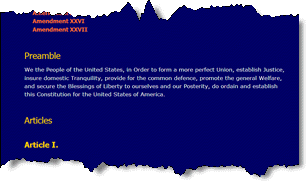

Different Styles for The United States Constitution

W3C Core Styles applied to the US Constitution.
constitutionconstitutionconstitutionconstitutionconstitutionconstitutionconstitutionconstitution

University of Colorado - Boulder

CU Boulder - Home

cu home page

With CSS disabled:

cu home no css

Responsive Web Design

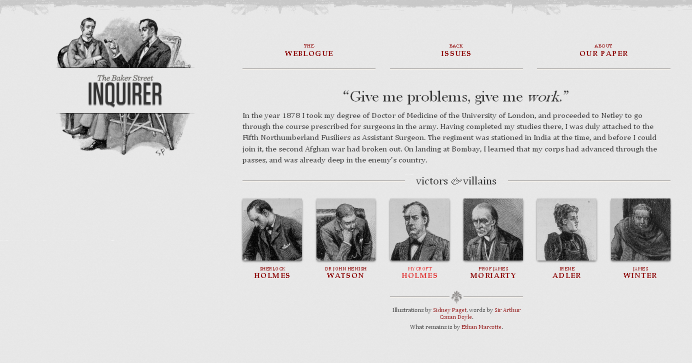

responsive wide screen

responsive medium screen

responsive small screen

CSS Recommendations from the W3C

Current CSS

CSS Validator

W3C CSS Validation Service
http://jigsaw.w3.org/css-validator/

Historical

CSS Mechanics - rules and selectors

Anatomy of a CSS Rule

CSS Rule

css rule

Selector and Declarations

css selector and declarations

Properties and Values

css property and value

Simple CSS Example

Example 3.25 - Simple CSS Example - Example 3.25

 <p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </p>

In style element (<style>) within head element:

p {
    color: red;
    background-color: blue;
  }


Screenshot

CSS Mechanics - Binding Styles to Markup

Three ways to bind CSS rules to HTML markup:

style attribute

Example 3.26 - style attribute - Example 3.26

 <p style="color: black; background-color: teal; padding: 1em; font-family: helvetica, sans-serif; text-align: justify; margin: 2em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </p>

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.



Screenshot

style element

Example 3.27 - style element - Example 3.27

 <p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </p>

In style element (<style>) within head element:

p {
    color: black;
    background-color: teal;
    padding: 1em;
    font-family: helvetica, sans-serif;
    text-align: justify;
    margin: 2em;
  }


Screenshot

So the full page looks like:


 <html>
   <head>
     <title>CSCIE-12 CSS Example</title>
     <style>
      p {
         color: black;
         background-color: teal;
         padding: 1em;
         font-family: helvetica, sans-serif;
         text-align: justify;
         margin: 2em;
      }
     </style>
   </head>
   <body>
     <p>
      Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec
      facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit.
      Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante
      sit amet urna. Maecenas condimentum hendrerit turpis.
     </p>
  </body>
</html>

link element

The link element can reference an external stylesheet.
Example 3.28 - link element for stylesheets - Example 3.28

 <p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </p>

In head element:

<link rel="stylesheet" href="example28.css"/>

In example28.css

p {
    color: black;
    background-color: teal;
    padding: 1em;
    font-family: helvetica, sans-serif;
    text-align: justify;
    margin: 2em;
  }

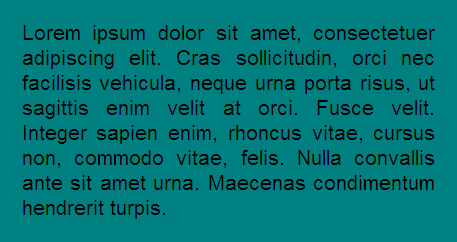

Screenshot

The full source:

<html>
   <head>
     <title>CSCIE-12 CSS Example</title>
     <link href="example37.css" rel="stylesheet"/>
   </head>
   <body>
     <p>
      Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec
      facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit.
      Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante
      sit amet urna. Maecenas condimentum hendrerit turpis.
     </p>
  </body>
</html>

Combining Rules

Rules can be combined. The following two sets of style rules would produce identical results. Rules can be listed separately:

p {color: black;}
p {background-color: teal;}
p {padding: 1em;}
p {margin: 1em;}
p {font-family: helvetica, sans-serif;}
p {text-align: justify;}

Or, rules can be grouped. Property:Value pairs need to be separated by a semicolon.

p {
     color: black;
     background-color: teal;
     padding: 1em;
     margin: 1em;
     font-family: helvetica, sans-serif;
     text-align: justify;
}

Combining Selectors

Selectors can be combined into comma-separated groups.
h1 { color: maroon; }
h2 { color: maroon; }
h3 { color: maroon; }
h4 { color: maroon; }
h5 { color: maroon; }
h6 { color: maroon; }
We combine the selectors so that a single declaration applies to multiple selectors.
h1, h2, h3, h4, h5, h6 { color: maroon; }

Basic Selectors - elements, class, id

element selectors

p {
  background-color: white;
  color: maroon;
}

ul {
  border: medium solid green;
}

li {
  background-color: lightsalmon;
}

h1,
h2,
h3 {
  background-color: black;
  color: white;
}

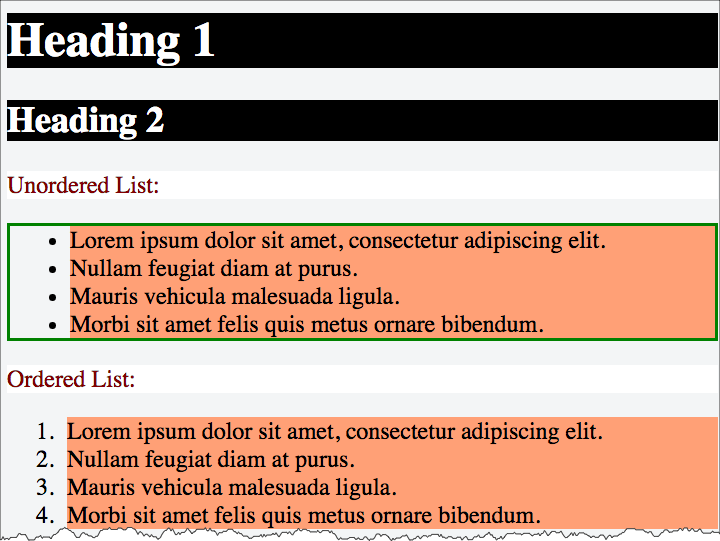

CSS element selector example

rendered page

class selectors

The class and id attributes of HTML elements can be used in conjunction with styles.

Class names are referenced in CSS as .classname, and may or may not have an element name preceding the period (.classname or element.classname.

Likewise, id names are referenced in CSS as #idref, and may or may not have an element name preceding the period (#idref or element#idref.

Example 3.29 - classes - Example 3.29

 <div>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>
 <div class="withstyle">Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </div>
 <div class="warn">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>
 <div>Lorem ipsum dolor sit amet,
   <span class="warn">consectetuer adipiscing elit   </span>. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>
 <div id="legalese">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>

In style element (<style>) within head element:

div
{
  background-color: white;
  color: black;
  font-family: times;
  margin: 0.5em;
  padding: 0.5em;
}
div.withstyle
{
  background-color: olive;
  color: navy;
  font-family: sans-serif;
  margin: 0.5em;
  padding: 0.5em;
}
.warn
{
  background-color: yellow;
  color: red;
  font-weight: bold;
}
#legalese
{
  color: #cccccc;
  font-size: 0.6em;
}


screenshot

id selectors

id names are referenced in CSS as #idref, and may or may not have an element name preceding the period (#idref or element#idref.

Example 3.30 - id selectors - Example 3.30

 <header>
   <h1>Lorem Ipsum   </h1> </header>
 <main><!-- main content -->
   <section id="bigidea">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.   </section>
   <section>Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna.   </section> </main>
 <footer>Maecenas condimentum hendrerit turpis. </footer>

In style element (<style>) within head element:


    h1 { text-align: center; }
    section { margin: 1rem; }
    footer { margin: 1rem;
      padding: 1rem;
      border-top: thin solid black;
      background-color: #f0f0f0;
    }
    #bigidea {
            background-color: blue;
            color: white;
            border-color: green;
            border-width: thick;
            border-style: solid;
            line-height: 1.5;
            padding: 1rem;
    }


Contextual Selectors

selector1 selector2 { ...rules... }

Example 3.31 - contextual selectors - Example 3.31

 <div>
   <em>Emphasized text   </em>outside of
   <strong>li   </strong>appear "normal".
   <ul>
     <li>
       <em>Emphasized text       </em>within
       <strong>li       </strong>have a different style.
     </li>   </ul>
 </div>

In style element (<style>) within head element:


li em { color: red; background-color: navy;}


Screenshot

CSS Properties and Values

CSS Level 1 lists 53 properties that let you style properties of:

CSS Level 2.1 lists 115 properties.

CSS Properties

CSS Level 1 lists 53 properties.

  • Font Properites
    • font-family
    • font-style
    • font-variant
    • font-weight
    • font-size
    • font
  • Color and Background Properties
    • color
    • background-color
    • background-image
    • background-repeat
    • background-attachment
    • background-position
    • background
  • Text Properties
    • word-spacing
    • letter-spacing
    • text-decoration
    • vertical-align
    • text-transform
    • text-align
    • text-indent
    • line-height
  • Box Properties
    • margin-top
    • margin-right
    • margin-bottom
    • margin-left
    • margin
    • padding-top
    • padding-right
    • padding-bottom
    • padding-left
    • padding
    • border-top-width
    • border-right-width
    • border-bottom-width
    • border-left-width
    • border-width
    • border-color
    • border-style
    • border-top
    • border-right
    • border-bottom
    • border-left
    • border
    • width
    • height
    • float
    • clear
    • display
  • Classification Properties
    • white-space
    • list-style-type
    • list-style-image
    • list-style-position
    • list-style

CSS Level 2.1 lists 115 properties.

  • azimuth
  • background
  • background-attachment
  • background-color
  • background-image
  • background-position
  • background-repeat
  • border
  • border-bottom
  • border-bottom-color
  • border-bottom-style
  • border-bottom-width
  • border-collapse
  • border-color
  • border-left
  • border-left-color
  • border-left-style
  • border-left-width
  • border-right
  • border-right-color
  • border-right-style
  • border-right-width
  • border-spacing
  • border-style
  • border-top
  • border-top-color
  • border-top-style
  • border-top-width
  • border-width
  • bottom
  • caption-side
  • clear
  • clip
  • color
  • content
  • counter-increment
  • counter-reset
  • cue
  • cue-after
  • cue-before
  • cursor
  • direction
  • display
  • elevation
  • empty-cells
  • float
  • font
  • font-family
  • font-size
  • font-style
  • font-variant
  • font-weight
  • height
  • left
  • letter-spacing
  • line-height
  • list-style
  • list-style-image
  • list-style-position
  • list-style-type
  • margin
  • margin-bottom
  • margin-left
  • margin-right
  • margin-top
  • max-height
  • max-width
  • min-height
  • min-width
  • orphans
  • outline
  • outline-color
  • outline-style
  • outline-width
  • overflow
  • padding
  • padding-bottom
  • padding-left
  • padding-right
  • padding-top
  • page-break-after
  • page-break-before
  • page-break-inside
  • pause
  • pause-after
  • pause-before
  • pitch
  • pitch-range
  • play-during
  • position
  • quotes
  • richness
  • right
  • speak
  • speak-header
  • speak-numeral
  • speak-punctuation
  • speech-rate
  • stress
  • table-layout
  • text-align
  • text-decoration
  • text-indent
  • text-transform
  • top
  • unicode-bidi
  • vertical-align
  • visibility
  • voice-family
  • volume
  • white-space
  • widows
  • width
  • word-spacing
  • z-index

Inheritance

Properties are typically inherited by children elements.

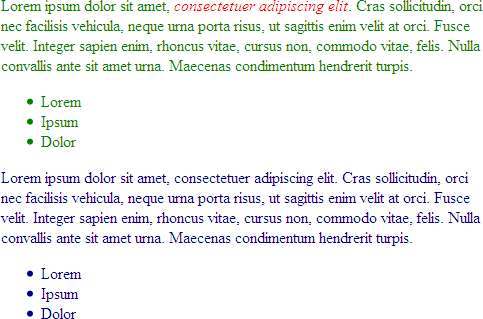

Example 3.32 - Styles and inheritance - Example 3.32

 <div>Lorem ipsum dolor sit amet,
   <em>consectetuer adipiscing elit   </em>. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
   <ul>
     <li>Lorem
     </li>
     <li>Ipsum
     </li>
     <li>Dolor
     </li>   </ul>
 </div>
 <p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </p>
 <ul>
   <li>Lorem
   </li>
   <li>Ipsum
   </li>
   <li>Dolor
   </li> </ul>

In style element (<style>) within head element:

body { color: navy; }
em { color: red; }
div { color: green; }


Screenshot

Sample "UA" default stylesheets for HTML 2.0 and HTML 4.0

UA = User-Agent = HTTP Client = Web Browser

Take a look at the sample default stylesheets for HTML 2.0 and HTML 4.0 listed in the Appendices of the CSS1 and CSS2 Recommendations.

HTML 4 Sample default CSS

html, address,
blockquote,
body, dd, div,
dl, dt, fieldset, form,
frame, frameset,
h1, h2, h3, h4,
h5, h6, noframes,
ol, p, ul, center,
dir, hr, menu, pre   { display: block }
li              { display: list-item }
head            { display: none }
table           { display: table }
tr              { display: table-row }
thead           { display: table-header-group }
tbody           { display: table-row-group }
tfoot           { display: table-footer-group }
col             { display: table-column }
colgroup        { display: table-column-group }
td, th          { display: table-cell; }
caption         { display: table-caption }
th              { font-weight: bolder; text-align: center }
caption         { text-align: center }
body            { margin: 8px; line-height: 1.12 }
h1              { font-size: 2em; margin: .67em 0 }
h2              { font-size: 1.5em; margin: .75em 0 }
h3              { font-size: 1.17em; margin: .83em 0 }
h4, p,
blockquote, ul,
fieldset, form,
ol, dl, dir,
menu            { margin: 1.12em 0 }
h5              { font-size: .83em; margin: 1.5em 0 }
h6              { font-size: .75em; margin: 1.67em 0 }
h1, h2, h3, h4,
h5, h6, b,
strong          { font-weight: bolder }
blockquote      { margin-left: 40px; margin-right: 40px }
i, cite, em,
var, address    { font-style: italic }
pre, tt, code,
kbd, samp       { font-family: monospace }
pre             { white-space: pre }
button, pre,
input, object,
select          { display:inline-block; }
big             { font-size: 1.17em }
small, sub, sup { font-size: .83em }
sub             { vertical-align: sub }
sup             { vertical-align: super }
table           { border-spacing: 2px; }
thead, tbody,
tfoot           { vertical-align: middle }
td, th          { vertical-align: inherit }
s, strike, del  { text-decoration: line-through }
hr              { border: 1px inset }
ol, ul, dir,
menu, dd        { margin-left: 40px }
ol              { list-style-type: decimal }
ol ul, ul ol,
ul ul, ol ol    { margin-top: 0; margin-bottom: 0 }
u, ins          { text-decoration: underline }
br:before       { content: "\A" }
:before, :after { white-space: pre-line }
center          { text-align: center }
abbr, acronym   { font-variant: small-caps; letter-spacing: 0.1em }
:link, :visited { text-decoration: underline }
:focus          { outline: thin dotted invert }

/* Begin bidirectionality settings (do not change) */
BDO[DIR="ltr"]  { direction: ltr; unicode-bidi: bidi-override }
BDO[DIR="rtl"]  { direction: rtl; unicode-bidi: bidi-override }

*[DIR="ltr"]    { direction: ltr; unicode-bidi: embed }
*[DIR="rtl"]    { direction: rtl; unicode-bidi: embed }

@media print {
  h1            { page-break-before: always }
  h1, h2, h3,
  h4, h5, h6    { page-break-after: avoid }
  ul, ol, dl    { page-break-before: avoid }
}

HTML 2 Sample default CSS

BODY {
  margin: 1em;
  font-family: serif;
  line-height: 1.1;
  background: white;
  color: black;
}

H1, H2, H3, H4, H5, H6, P, UL, OL, DIR, MENU, DIV,
DT, DD, ADDRESS, BLOCKQUOTE, PRE, BR, HR, FORM, DL {
  display: block }

B, STRONG, I, EM, CITE, VAR, TT, CODE, KBD, SAMP,
IMG, SPAN { display: inline }

LI { display: list-item }

H1, H2, H3, H4 { margin-top: 1em; margin-bottom: 1em }
H5, H6 { margin-top: 1em }
H1 { text-align: center }
H1, H2, H4, H6 { font-weight: bold }
H3, H5 { font-style: italic }

H1 { font-size: xx-large }
H2 { font-size: x-large }
H3 { font-size: large }

B, STRONG { font-weight: bolder }  /* relative to the parent */
I, CITE, EM, VAR, ADDRESS, BLOCKQUOTE { font-style: italic }
PRE, TT, CODE, KBD, SAMP { font-family: monospace }

PRE { white-space: pre }

ADDRESS { margin-left: 3em }
BLOCKQUOTE { margin-left: 3em; margin-right: 3em }

UL, DIR { list-style: disc }
OL { list-style: decimal }
MENU { margin: 0 }              /* tight formatting */
LI { margin-left: 3em }

DT { margin-bottom: 0 }
DD { margin-top: 0; margin-left: 3em }

HR { border-top: solid }        /* 'border-bottom' could also have been used */

A:link { color: blue }          /* unvisited link */
A:visited { color: red }        /* visited links */
A:active { color: lime }        /* active links */

/* setting the anchor border around IMG elements
   requires contextual selectors */

A:link IMG { border: 2px solid blue }
A:visited IMG { border: 2px solid red }
A:active IMG { border: 2px solid lime }


font properties

font-family

body {
  font-family: garamond, times, serif;
}
Example 3.33 - font properties - Example 3.33

 <div style="font-family: garamond, times, serif;">Garamond, Times, or serif (generic family)
 </div>
 <div style="font-family: calibri, arial, helvetica, sans-serif;">Calibri, Arial, Helvetica or sans-serif (generic family)
 </div>
 <div style="font-family: lucida console, courier, monospace;">Lucida Console, Courier or monospace (generic family)
 </div>
 <div style="font-family: fantasy;">Fantasy (generic family)
 </div>
 <div style="font-family: cursive;">Cursive (generic family)
 </div>
Garamond, Times, or serif (generic family)
Calibri, Arial, Helvetica or sans-serif (generic family)
Lucida Console, Courier or monospace (generic family)
Fantasy (generic family)
Cursive (generic family)


Screenshot

font-style

em {
  font-style: italic;
}
Example 3.34 - font-style - Example 3.34

 <div style="font-style: normal;">Normal font-style
 </div>
 <div style="font-style: italic;">Italic font-style
 </div>
 <div style="font-style: oblique;">Oblique font-style
 </div>
Normal font-style
Italic font-style
Oblique font-style


font-variant and font-weight

font-variant

Example 3.35 - font-weight and font-variant - Example 3.35

 <div style="font-variant: small-caps;">This should be rendered in small-caps.
   <div style="font-variant: normal;">Here we revert to "normal".
   </div>
 </div>
This should be rendered in small-caps.
Here we revert to "normal".


font-weight

strong {
  font-weight: bold;
}
values: normal | bold | bolder | lighter | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900
Example 3.36 - font-weight - Example 3.36

 <div>font-weight can be used to make
   <span style="font-weight: bold">text appear bold   </span>.
 </div>
font-weight can be used to make text appear bold.


font-size

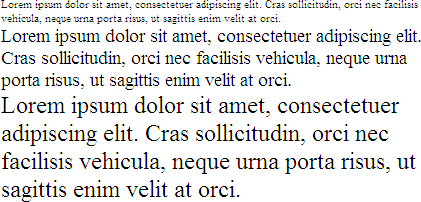

Example 3.37 - font-size - Example 3.37

 <div style="font-size: 8pt;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>
 <div style="font-size: 120%;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>
 <div style="font-size: 1.5em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
 </div>
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci.


Screenshot

Font Sizes: Relative vs. Absolute

As a general guideline with CSS, relative measurements are better than absolute measurements.

font

In CSS, there are various shorthand properties; these allow you to define several properties in a single place.

The font shorthand property allows you to set:
[font-style | font-variant | font-weight ]? font-size[/line-height]? font-family

Example 3.38 - font shorthand - Example 3.38

 <div>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </div>

In style element (<style>) within head element:

body {
      font: normal normal normal x-large/200% arial, helvetica, sans-serif;
}


Screenshot

text properties

Align blocks of text left, right, center, and justified.

Example 3.39 - text properties - Example 3.39

 <div style="margin-left: 30%; margin-right: 30%;">
   <p style="text-align: left">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
   </p>
   <p style="text-align: center">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
   </p>
   <p style="text-align: right">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
   </p>
   <p style="text-align: justify">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
   </p>
 </div>

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.



Screenshot

CSS Values and Units

Color Units

prism light refraction

Wikipedia Web Colors

Name

As defined in HTML: aqua, black, blue, fuchsia, gray, green, lime, maroon, navy, olive, purple, red, silver, teal, white, yellow

RGB Color Space

256 colors in each channel (Red, Green, Blue). Values can be
color picker

The following are all equivalent ways of defining a shade of orange:

  • rgb(100%,66%,33%)
  • rgb(255,168,84)
  • #ffa854

Example 3.40 - Example 3.40

 <div style="background-color: rgb(100%,66%,33%); padding: 1em; ; margin: 1em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
rgb(100%,66%,33%)
 </div>
 <div style="background-color: #ffa854; padding: 1em; margin: 1em; ">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
#ffa854
 </div>
 <div style="background-color: rgb(255,168,84); padding: 1em; ; margin: 1em;">Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
   <br/>
rgb(255,168,84)
 </div>
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
rgb(100%,66%,33%)
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
#ffa854
Lorem ipsum dolor sit amet, consectetuer adipiscing elit.
rgb(255,168,84)


Colorpicker

Select Color:

Hex value:

Box Model or Block Model

Box Model Illustration from CSS:  The Definitive Guide by Eric Meyer

A more detailed look:

Box Model Illustration from CSS:  The Definitive Guide by Eric Meyer

Image from Cascading Style Sheets: The Definitive Guide, 3rd ed by Eric Meyer, published by O'Reilly

In your browser

box model in chrome

box model in firefox

margin, padding, border

border-style

Example 3.41 - Border Styles - Example 3.41

 <h4>Dotted </h4>
 <p class="border1">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras feugiat mauris facilisis libero. Etiam nisl. Cras est dolor, viverra ac, ultrices volutpat, vestibulum et, odio. Nulla eget libero. Praesent eget tellus vel nibh nonummy egestas.
 </p>
 <h4>Dashed </h4>
 <p class="border2">Etiam eu arcu quis lectus semper sodales. Donec vitae risus. Integer sollicitudin imperdiet dolor. Donec vehicula. Aliquam ut sapien sed eros imperdiet pharetra. Donec accumsan scelerisque leo. Sed eros nunc, pellentesque et, mollis non, faucibus venenatis, tortor.
 </p>
 <h4>Outset </h4>
 <p class="border3">Pellentesque a velit. Sed pharetra vestibulum mauris. Ut vel arcu. Cras dolor ligula, eleifend et, ultrices nec, viverra in, ipsum. In convallis pharetra lacus. Etiam tellus. Aliquam quam. Vivamus mattis purus nec quam. Suspendisse hendrerit dui ac massa.
 </p>
 <h4>Solid </h4>
 <p class="border4">Etiam rhoncus. Praesent id neque et odio dictum varius. Integer imperdiet blandit orci. Donec nec nunc posuere augue egestas accumsan. Nunc nonummy metus ut nunc. In id turpis vitae nisl eleifend bibendum. Curabitur cursus aliquam dolor.
 </p>
 <h4>Double </h4>
 <p class="border5">Duis id erat a tortor laoreet aliquet. Quisque consectetuer lobortis mauris. Donec pede. Cras non turpis vel tortor iaculis nonummy. Ut facilisis viverra sem. Morbi pretium iaculis ligula. Praesent lectus. Aenean vel ante. Nunc interdum semper nisl. Pellentesque tincidunt.
 </p>
 <h4>Groove </h4>
 <p class="border6">Aliquam leo nunc, congue a, imperdiet eget, aliquet ac, tortor. Sed ac est. Vivamus nisi. Mauris in nisl. Sed ultricies nunc vel nunc. In dignissim consequat arcu. Sed in risus. Nulla facilisi. Integer purus urna, laoreet vitae, congue a, posuere ut, ipsum. Nunc ac lacus sit amet nisi porttitor aliquam.
 </p>
 <h4>Ridge </h4>
 <p class="border7">Vivamus dictum, sem in vulputate vestibulum, est tellus tempus dolor, ut laoreet arcu metus eu orci. Sed enim augue, dignissim sed, porta sed, dapibus ac, nibh. Nunc mattis ipsum eu lectus. Nam pharetra mattis massa.
 </p>
 <h4>Inset </h4>
 <p class="border8">Maecenas consectetuer, lectus ac tempus iaculis, leo ipsum tincidunt erat, et aliquam libero nulla ac ipsum. Nam turpis leo, feugiat vel, nonummy id, ornare a, arcu. Vestibulum porta, justo et ornare porta, neque eros vestibulum libero, semper iaculis augue turpis eu neque.
 </p>

In style element (<style>) within head element:

body {
font-family: tahoma,arial,sans-serif;
font-size: small;
}
p {
margin: 1em;
padding: 1em;
width: 50%;
}
.border1 {
border: thin dotted #900;
}
.border2 {
border: medium dashed #090;
}
.border3 {
border: thick outset #009;
}
.border4 {
border: 3px solid #999;
}
.border5 {
border: 5px double #000;
}
.border6 {
border: 10px groove black;
}
.border7 {
border: 15px ridge black;
}
.border8 {
border: 20px inset #900;
}


Screenshot

TRBL for padding and margin shorthand

Stay out of "TRBL" (top right bottom left) for padding and margin shorthand.

Values that are present are used to fill in for values that are not:

Margin, Padding, Border Example

Example 3.42 - Margin, Padding, Border - Example 3.42

 <aside>Drafted by Thomas Jefferson between June 11 and June 28, 1776, the Declaration of Independence is at once the nation's most cherished symbol of liberty and Jefferson's most enduring monument. </aside>
 <p>We hold these truths to be self-evident, that all men are created equal, that they are endowed by their Creator with certain unalienable Rights, that among these are Life, Liberty, and the pursuit of Happiness. That to secure these rights, Governments are instituted among Men, deriving their just powers from the consent of the governed. That whenever any Form of Government becomes destructive of these ends, it is the Right of the People to alter or to abolish it, and to institute new Government, laying its foundation on such principles and organizing its powers in such form, as to them shall seem most likely to effect their Safety and Happiness.
 </p>

In style element (<style>) within head element:

aside {
      text-align: left;
      font-size: 1.1rem;
      color: #003300;
      background-color: rgb(250,250,200);
      padding: 1rem;
      margin: 0.5rem;
      border-width: 2px;
      border-style: dashed;
      border-color: #990000;
     }
p {
     font-size: large;
     line-height: 1.5;
   }


display property

You can make "inline" elements into "block" by setting the display property!

label {
  display: block;
}
Example 3.43 - Form - Example 3.43

 <form method="post" action="https://cs12.net/form/submit.php">
   <label>Name:
     <input type="text" name="name"/>
   </label>
   <label>Email Address:
     <input type="email" name="email"/>
   </label>
   <button type="submit">Submit   </button>
 </form>

In style element (<style>) within head element:


  label { display: block; margin-top: 1rem;}
  input { display: block;}
  button { display: block; margin-top: 1rem;}


Tools: Your Browser

browse happy

And a few that aren't listed at BrowseHappy.com:

Web Browsers and Layout Engines

Web BrowserLayout Engine
Google ChromeBlink (fork of Webkit)
Apple SafariWebkit
Mozilla FirefoxGecko
Microsoft EdgeChromium
OperaBlink (fork of Webkit)

Testdrive Your Browser

Example 3.44 - Test Drive Your Browser - Example 3.44

 <h1>Lorem Ipsum Dolor </h1>
 <p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Cras sollicitudin, orci nec facilisis vehicula, neque urna porta risus, ut sagittis enim velit at orci. Fusce velit. Integer sapien enim, rhoncus vitae, cursus non, commodo vitae, felis. Nulla convallis ante sit amet urna. Maecenas condimentum hendrerit turpis.
 </p>
 <ul>
   <li>Lorem
   </li>
   <li>Ipsum
   </li>
   <li>Dolor
   </li> </ul>

In style element (<style>) within head element:

body {
  background-color: silver;
  font-family: calibri, arial, helvetica, sans-serif;
}
p {
  line-height: 200%;
  border: thin solid black;
  padding: 1em;
  margin: 2em;
  background-color: teal;
  }
ul {
  border: medium dotted red;
  background-color: yellow;
  font-family: Times New Roman, Times, serif;
}
h1 {
  color: purple;
  background-color: white;
  font-variant: small-caps;
}
