Wrapping Up

• Office Hours - scheduled and "open"!
• May 11, Final Project due at 6pm US/Eastern
• May 11, Class Meeting Time, Optional Presentations (3 to 5 min) of Final Projects
  • I'll be posting an announcement this weekend for signup instructions.

Some Observations

• File structure organization:
  • All of your html files at the top level
  • directory/folder for images, styles, and scripts

    .
    |-- index.html
    |-- hello-harvard.html
    |-- images
    |   |-- harvard.jpg
    |   `-- world.jpg
    |-- scripts
    |   `-- map.js
    `-- styles
        `-- site.css

• lowercase file names and without spaces
  • Better: my_favorite_teas.html
  • No: My Favorite Teas.html
• Within your site, use relative URL links.
  • NOT relative:
    1. <link rel="stylesheet" href="/styles/site.css"/>
    2. <link rel="stylesheet" href="/Users/david/Desktop/final_project/styles/site.css"/>
  • IF it begins with a "/", it isn't relative!
• Site-wide CSS Stylesheet!
  One CSS stylesheet to style all of your HTML pages!

My Project Update

• Report
• Nature of America

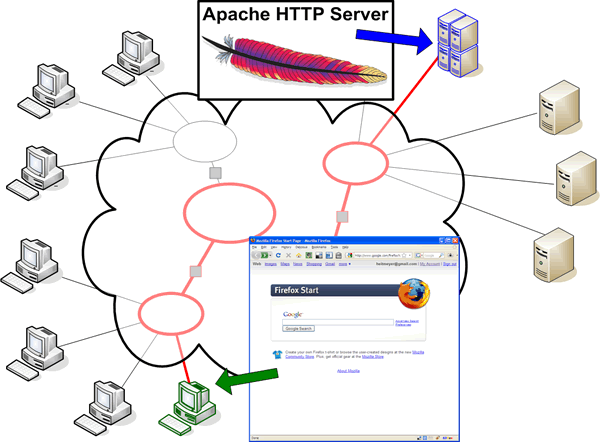

The Internet and the Web

Domain Names: Top Level Domains (TLD)

Getting Your Own Domain and Hosting

1. Domain Name
   • Buy the domain through a "registrar"
   • Provide name servers
   • About $10/yr
2. Hosting
   • Shared ($7-15/mo)
   • Private / Cloud

Web Server Software

• Apache HTTP Server
• nginx
• Microsoft IIS

Web Server Market Share

Netcraft Web Server Survey

HyperText Transfer Protocol

GET

United States National Archives
www.archives.gov

GET / HTTP/1.1
Host: www.archives.gov
User-Agent: curl/7.49.0
Accept: */*

HTTP/1.1 200 OK
Content-Type: text/html; charset=utf-8
Connection: keep-alive
Date: Thu, 30 Jul 2020 23:25:09 GMT
Content-Language: en
Set-Cookie: UUID=7efbfc41-6054-bf24-f977-24eb8d075e4e; expires=Fri, 30-Jul-2021 23:06:47 GMT; Max-Age=31536000; path=/; domain=.archives.gov; httponly
Last-Modified: Thu, 30 Jul 2020 23:06:47 GMT
Strict-Transport-Security: max-age=31536000; includeSubDomains; preload
X-Content-Type-Options: nosniff
ETag: W/"1596150407-0-gzip"
v-ttl: 2497
Cache-Control: public, max-age=60, s-maxage=180
v-cache-ttl: 2497
X-Frame-Options: SAMEORIGIN
Accept-Ranges: bytes
Vary: Cookie,Accept-Encoding
X-Cache: Miss from cloudfront
Via: 1.1 6c46ad9c24627fa8c065620a1a7a52a9.cloudfront.net (CloudFront)
X-Amz-Cf-Pop: EWR52-C1
X-Amz-Cf-Id: LqRBsWPmMMWNU4m66BY-LRfHuL1LI8Xrcd6unFAZ0VJJWWdO_I--uA==

<!DOCTYPE html>
  <!-- truncated for example -->

HTTP Overview

HTTP is Stateless

HTTP Versions

An HTTP Conversation

• Client Request
  • METHOD Resource HTTP Version
  • Client Generated Headers
  • Request Body
• Server Response
  • Status Line
  • Server Generated Headers
  • Data

HTTP 1.1 Methods

• GET
• POST
• HEAD
• PUT
• DELETE
• TRACE
• OPTIONS

HTTP Response Codes

HTTP 1.1 status codes commonly seen

• 200 OK
• 301 Moved permanently
• 302 Moved temporarily
• 304 Not modified
• 401 Unauthorized
• 403 Forbidden
• 404 Not found
• 500 Internal server error

The complete list:

Common Headers

Request (Browser)

• Host
• User-Agent
• Referer
• Accept
• Accept-Language
• Accept-Encoding
• Accept-Charset
• Cookie
• If-Modified-Since

Response (Server)

• Last-Modified
• Content-Length
• Content-Type
• Connection

Looking at HTTP Under the Hood

Use your browser developer tools!

HTTP Header: Host

Host Header

This is required for HTTP 1.1 requests.

HEAD /http/raspberry.gif HTTP/1.1
Host: cscie12.dce.harvard.edu

HTTP/1.1 200 OK
Date: Tue, 8 Apr 2020 20:23:14 GMT
Server: Apache/2.2 (Fedora)
Last-Modified: Wed, 06 Apr 2015 19:30:42 GMT
ETag: "461fb8-348c-a0f67c80"
Accept-Ranges: bytes
Content-Length: 13452
Connection: close
Content-Type: image/gif

Connection closed by foreign host.

HTTP/2

• HTTP/2
• HPACK

What are the key differences to HTTP/1.x?

From the HTTP/2 FAQ:

Apache HTTP Server

• Apache Software Foundation
  • Apache HTTP Server Project
    • Apache 2.x
  • Apache Modules
    • PHP
    • Python
    • many, many others

Apache Configuration Overview

Scope of .htaccess files

Problems You Will Have with .htaccess files

• Internal Server Error
• Can't "see" the file
• Incorrect Permissions

500 Internal Server Error

500 Internal Server Error

:(

Problems You will encounter when using .htaccess files (Internal Server Error 500)

cscie12students% pwd
/home/courses/j/h/jharvard/public_html
cscie12students% ls -l .htaccess
-rw-------   1 jharvard  founder         349 Nov 27 00:03 .htaccess
cscie12students% chmod o+r .htaccess
cscie12students% ls -l ~/public_html/.htaccess
-rw----r--   1 jharvard  founder         349 Nov 27 00:03 .htaccess

Problems You will encounter when using .htaccess files (Can't see the .htaccess file)

• HTTP
  The web server is typically configured to deny requests for .htaccess files. For example, the file corresponding to the URL, http://cscie12.dce.harvard.edu/.htaccess exists and is readable by the Web server, but if we try to follow the link, we get a 403 Forbidden response.
• UNIX
  The ls command will not list files or directories that begin with a '.' (dot). In order to see the .htaccess file when you do a directory listing, use the -a (all) option:
• SFTP
  Sometimes your SFTP program will hide the "dot" files unless explicitly told to show them.

Apache Configuration Sections

<Files .htaccess>
    Order allow,deny
    Deny from all
</Files>

# deny access to any tilde backup files
<Files *~>
    Order allow,deny
    Deny from all
</Files>

Caching - Don't deliver content unnecessarily

• Faster Load Times == Happier Users :)
• Less Bandwidth == Lower Costs

Types of Caching

• Local (user's computer)
• Proxy-server

Caching Related Headers

Local cache and proxy-server cache.

• If-Modified-Since
• Age
• Expires
• Last-Modified
• Cache-Control
• ETag

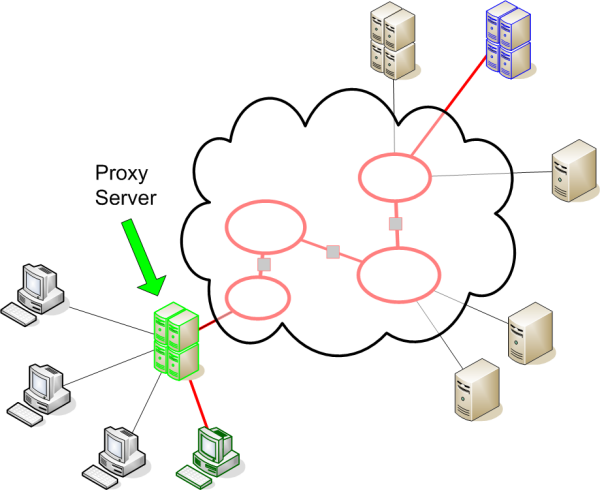

Proxy Servers

If-Modified-Since

A request for the Apache Software Foundation logo (http://apache.org/img/asf_logo.png) that is part of loading http://apache.org/foundation/

Initial request:

GET /img/asf_logo.png HTTP/1.1
Host: apache.org
Connection: keep-alive
Pragma: no-cache
Cache-Control: no-cache
Accept: image/webp,*/*;q=0.8
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2272.118 Safari/537.36
Referer: http://apache.org/foundation/
Accept-Encoding: gzip, deflate, sdch
Accept-Language: en-US,en;q=0.8,ro;q=0.6

HTTP/1.1 200 OK
Date: Tue, 14 Apr 2015 22:40:52 GMT
Server: Apache/2.4.7 (Ubuntu)
Last-Modified: Tue, 14 Apr 2015 16:08:47 GMT
ETag: "751e-513b1721525d0"
Accept-Ranges: bytes
Content-Length: 29982
Cache-Control: max-age=3600
Expires: Tue, 14 Apr 2015 23:40:52 GMT
Keep-Alive: timeout=30, max=98
Connection: Keep-Alive
Content-Type: image/png

After expiration, if still located in local cache, browser will make a conditional request:

GET /img/asf_logo.png HTTP/1.1
Host: apache.org
Connection: keep-alive
Accept: image/webp,*/*;q=0.8
If-None-Match: "751e-513b1721525d0"
If-Modified-Since: Tue, 14 Apr 2015 16:08:47 GMT
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2272.118 Safari/537.36
Referer: http://apache.org/foundation/
Accept-Encoding: gzip, deflate, sdch
Accept-Language: en-US,en;q=0.8,ro;q=0.6

HTTP/1.1 304 Not Modified
Date: Tue, 14 Apr 2015 22:42:51 GMT
Server: Apache/2.4.7 (Ubuntu)
Connection: Keep-Alive
Keep-Alive: timeout=30, max=100
ETag: "751e-513b1721525d0"
Expires: Tue, 14 Apr 2015 23:42:51 GMT
Cache-Control: max-age=3600

Expires HTTP Header

• Module mod_expires

ExpiresActive On

ExpiresByType text/html   A3600
# HTML expires in 1 hour

ExpiresByType image/gif   A2592000
# GIF  expires in 30 days

ExpiresByType image/jpeg  A2592000
# JPEG expires in 30 days

ExpiresByType image/png   A2592000
# PNG  expires in 30 days

# types not specified
ExpiresDefault "now plus 1 day"
#  expires in 1 day

ExpiresActive On
ExpiresByType text/html   M86400
# HTML expires 1 day after it was last modified
ExpiresDefault M86400

Do not cache

If you do not want your page cached, set these HTTP response headers:

Cache-control: no-cache
Pragma: no-cache
Expires: <set to now>

In .htaccess in Apache, this would translate to:

ExpiresDefault "now"
Header set Pragma "no-cache"

Minify and Compress Content

• Fewer bytes == faster load time
• Happier Users :)
• Less Bandwidth

Compress Content

mod_deflate compresses content before sending to web browser.

Simple use:

AddOutputFilterByType DEFLATE text/html
AddOutputFilterByType DEFLATE text/css
AddOutputFilterByType DEFLATE text/plain
AddOutputFilterByType DEFLATE text/xml
AddOutputFilterByType DEFLATE text/css
AddOutputFilterByType DEFLATE application/javascript

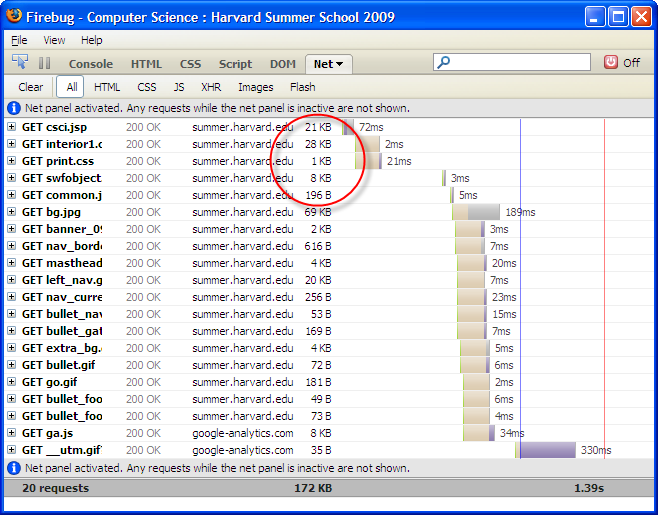

Does Compressing Help?

• 70 to 75% reduction for text files (markup, CSS, non-minified JS)
• 50% reduction for 'minified' JS

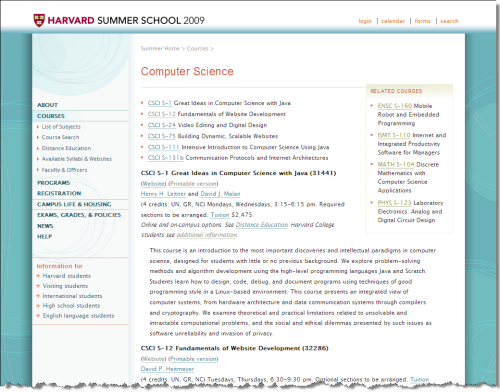

Harvard Summer School CSCI Course Listing

• 70% smaller for compressed files
• 27% smaller for total page weight

Friendly Errors

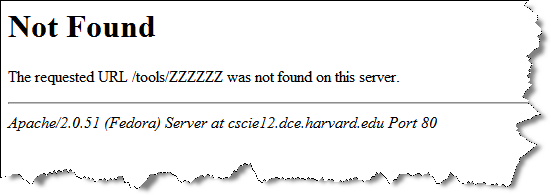

Apache Default "Not Found" 404 document:

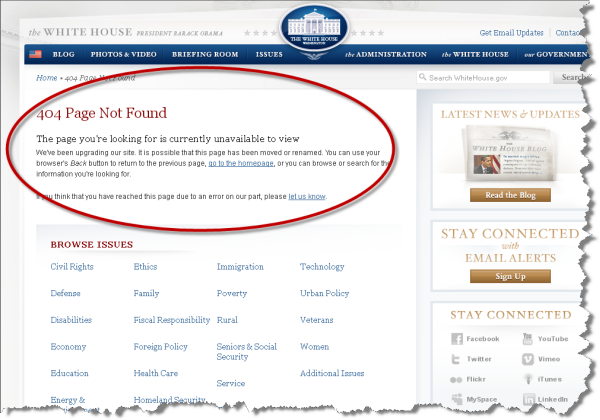

"Not Found" 404 for Whitehouse

"Not Found" 404 for Whitehouse

Custom Error Documents

ErrorDocument 401 /~jharvard/error/status401.html
ErrorDocument 403 /~jharvard/error/status403.html
ErrorDocument 404 /~jharvard/error/status404.html

• ErrorDocument directive
• Custom Error Responses

Friendly Ways to Get There

• Short URLs
• Memorable URLs
• Don't break old URLs

HTTP Redirect

• Publish "clean" URLs, and redirect
• Site reorganization changes URL -- redirect old to new

• Redirect
• Rewrite
• Meta http-equiv refresh
• URL shortener services

Redirecting Requests

Redirect

• Redirect directive

For cscie12.dce.harvard.edu the .htaccess file contains:

Redirect 302 /syllabus    https://harvard.instructure.com/courses/1812/assignments/syllabus

Rewrite

mod_rewrite uses regular expressions to match on a pattern and rewrite incoming URLs to a new URL location.

• Apache mod_rewrite
• mod_rewrite reference

Example - Make Simple Links Instead of Complex Ones

Context: Parks and Recreation class offered and how to easily link directly to the class

Park and Rec system:
https://webtrac.littletonrec.com/wbwsc/webtrac.wsc/wbsearch.html

Link I can use with Rewrite rule
http://littletontrack.org/lpr-303107

RewriteEngine On
RewriteBase /
RewriteRule ^lpr-(.*)$ https://webtrac.littletonrec.com/wbwsc/webtrac.wsc/wbsearch.html?per=10&xxsearch=yes&xxdispmap=no+&xxmulti-list=&xxmulti-lbls=&xxrowid=&xxmod=ar&xxactivitynumber=$1&xxage=&xxgrade=&xxkeyword=&xxkeywordoption=N&xxtype=&xxcategory=&xxsortoption=ActivityNumber&xxdisplayoption=D&xxsubmit=Search

Example: Create Links that can always point to the correct place

Road Race Registration is done through a 3rd party service, SignMeUp

Redirect  /registration https://www.signmeup.com/site/reg/register.aspx?fid=B42VRH7

Redirect /map http://maps.google.com/maps/ms?ie=UTF8&hl=en&msa=0&msid=101999702593116464805.00046f1a27a9feb5aacaf&ll=42.52946,-71.485934&spn=0.018975,0.018239&z=15

URL Shortener Services

• bitly.com
• and others...

Search Engines and Optimization

• Google Search Central
  • Gooel Search Central: SEO documentation
• Microsoft Bing Webmaster Tools

• Prepare
  • Content: Valid markup (or at least well-formed!), semantic markup, <title>, meta tags, visual elements have text
  • Site: robots.txt, sitemap.xml
• Submit your site

Content: meta tags

meta tags and Metadata Guidelines (W3 EOWG)

meta elements from Harvard University:

<meta property="twitter:account_id" content="1491443782" />
<meta name="twitter:site" content="@harvard">
<meta name="twitter:creator" content="@harvard">
<meta name="twitter:card" content="summary_large_image">

<meta property="og:site_name" content="Harvard University"/>
<meta property="og:type" content="university"/>
<meta property="og:title" content="Harvard University"/>
<meta property="og:url"
content="https://www.harvard.edu"/>
<meta property="og:description" content="Harvard University is devoted to excellence in
teaching, learning, and research, and to developing leaders
in many disciplines who make a difference globally.
Harvard University is made up of 11 principal academic units."/>
<meta property="og:image"
content="https://www.harvard.edu/sites/default/files/default_images/harvard-social1200.jpg"/>

Search Robots, Crawlers, Spiders

Three mechanisms to instruct robots that visit your site:

1. robots.txt file
2. robots meta tag
3. rel="nofollow" for a elements

robots.txt and Examples

Check out some real robots.txt files!

Robots meta element in markup

<meta name="robots" content="noindex,nofollow" />

• name="robots"
• content
  • index or noindex
  • follow or nofollow
  • noarchive
  • none
  • all

The Robots meta element can be used on a per document basis.

HTTP Header: X-Robots-Tag

• Google: Robots meta tag and X-Robots-Tag

• index — index the page
• noindex — don't index the page
• follow — follow links from the page
• nosnippet — don't display descriptions or cached links
• nofollow — don't follow links from the page
• noarchive — don't cache/archive the page
• none — do nothing, ignore the page
• all — do whatever you want, default behavior

Accessibility

• W3C: Accessibility
• WebAIM - Web Accessibility In Mind

Things to know about:

• W3C WAI and WCAG
  • W3C - Web Accessibility Initiative (WAI)
  • Web Content Accessibility Guidelines (WCAG) Overview
  • WCAG 2 at a Glance

Accessibility: Getting Started

• Easy Checks – A First Review of Web Accessibility
• WAVE - Web Accessibility Tool
• Unplug your mouse

• Harvard Digital Accessibility: Devleopers

Oh, The Places You'll Go!

So, in general, I’d encourage you to think about three potential areas, and decide based on your interests which one you pursue next:

• Back-end programming (Python, JS)
  • Back-end technologies like Python, Node, or even PHP. Something like CSCI E-7, “Introduction to Programming with Python”
• Front-end programming and design (JS, CSS, design, user experience, CMS)
  • Something like DGMD E-20, “Modern and Mobile Front-End Design”.
• More JavaScript
  • I think JS deserves its own listing. With it you can do front-end things and work with more complex JS frameworks like Vue or React. You can also work on the back-end with Node. Knowing more JS will always come in handy. Something like CSCI E-3 “Introduction to Web Programming with JavaScript”
