1. Image and Video Essentials
2. JPEG
3. GIF
4. PNG
5. SVG
6. WebP - Web Picture
7. Comparison of Image Formats
8. Working with Images
9. Elements of User Experience
10. Strategy
11. Scope
12. Structure
13. Skeleton
14. Surface

Session 07 - Image and Video Essentials / User Experience and Design, slide1
Image and Video Essentials, slide2
Images and the Web, slide3
Graphics Formats for the Web, slide4
image or image or image — Does it matter? , slide5
Graphics: Vector and Bitmap, slide6
Colors, slide7
Color Depth, slide8
Indexed Color Systems, slide9
Bitmap images: Size and Quality, slide10
Graphics Formats for the Web, slide11
JPEG, slide12
JPEG Compression, slide13
JPEG Compression Artifacts, slide14
GIF, slide15
Palettes, slide16
Palettes: Exact, Adaptive, Web 216, slide17
Adaptive Palette: Shift and Dither, slide18
GIF Images and Bit Depth: Color Shift, slide19
GIF Images and Bit Depth: Dither, slide20
Compression for Indexed GIF, slide21
Compression and Dithering, slide22
Transparency, slide23
GIF Animation, slide24
PNG, slide25
Compression for Indexed PNG, slide26
Compression and Dithering, slide27
Transparency, slide28
SVG, slide29
Basic SVG Shapes, slide30
SVG - Increasing Importance in the Future, slide31
Colorado State Flag, slide32
Harvard Division of Continuing Education Shield, slide33
Massachusetts Map, slide34

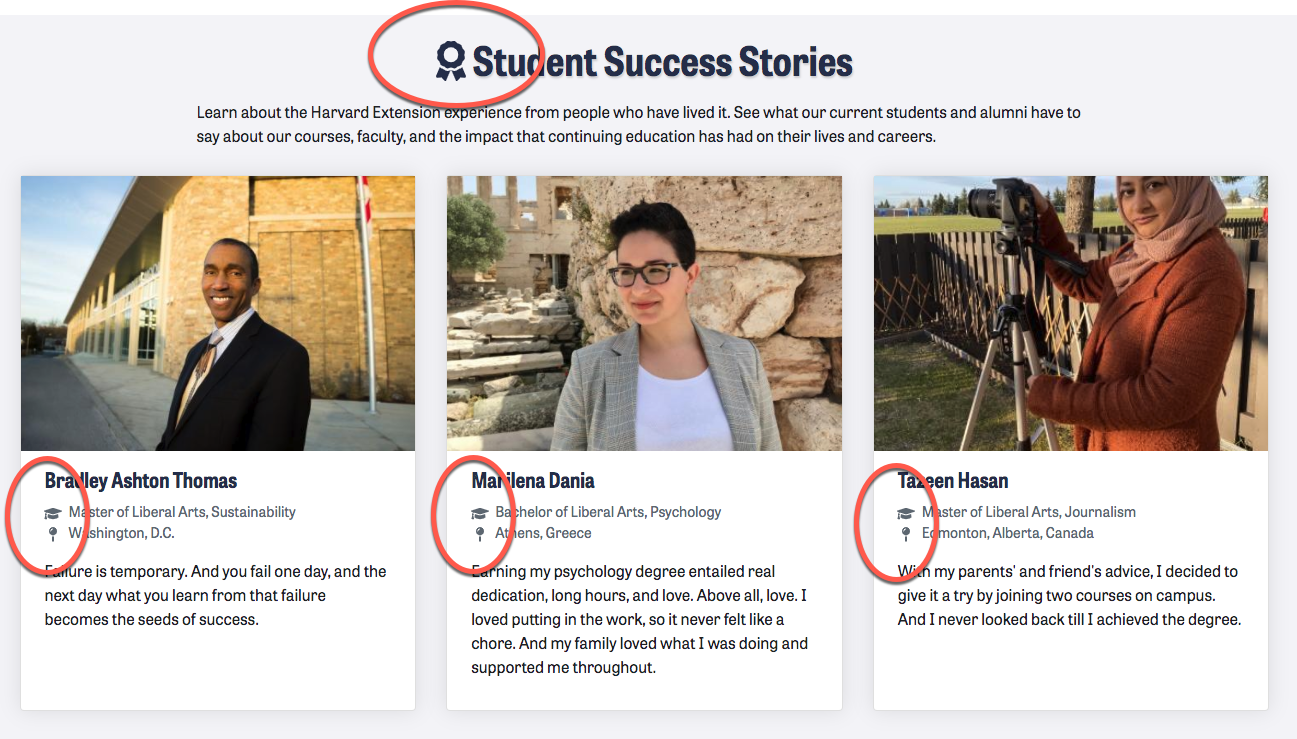

Icons, slide35

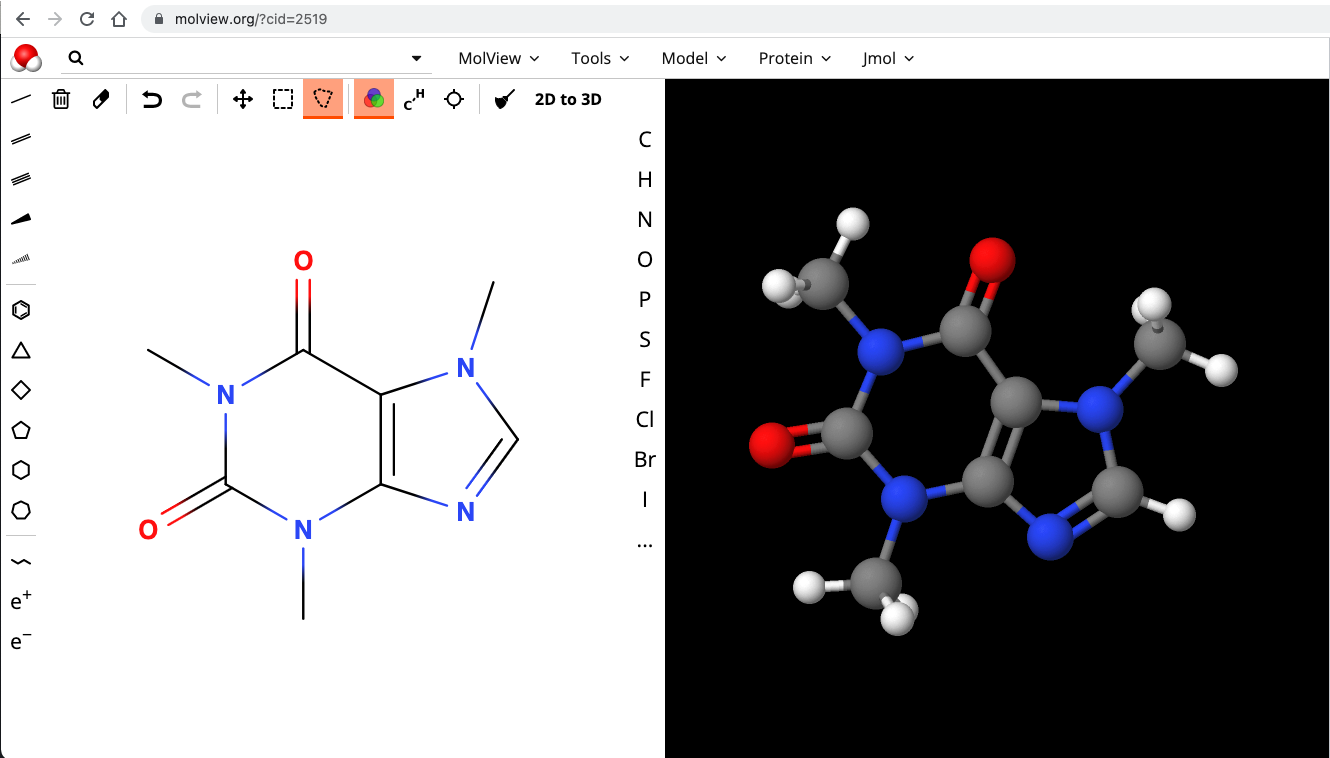

SVG Example - Molecule Viewer, slide36
SVG and D3 JS Library, slide37
WebP - Web Picture, slide38
Comparison of Image Formats, slide39
Cartoon Art, slide40
Working with Images, slide41
Imgix, slide42
Finding Images to Use, slide43
Placeholder Images, slide44
Start with Original PSD/AI/etc. or High Resolution PNG or JPEG, slide45
Responsive Images, slide46
Video: Then and Now, slide47
What's Changed since 2001, slide48

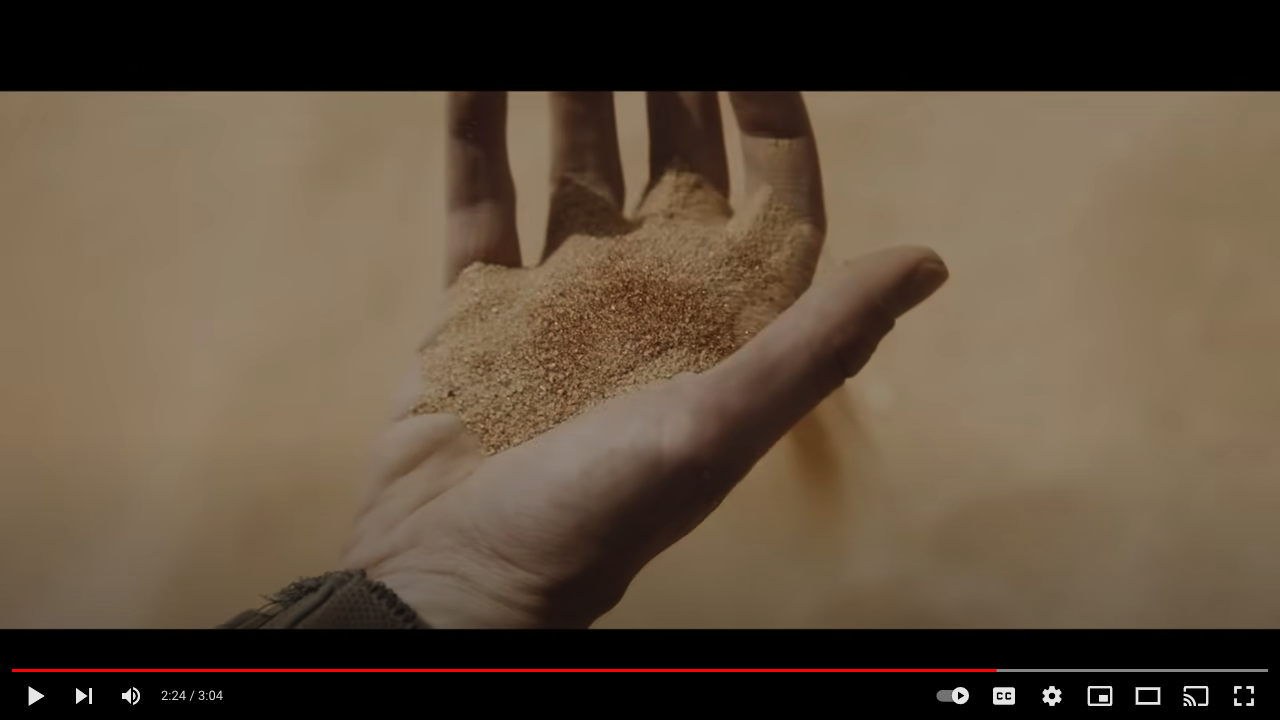

Video vs Images, slide49
Download vs Stream, slide50
HTTP Live/Dynamic Streaming, slide51
Video Quality, slide52
Video Hosting, slide53

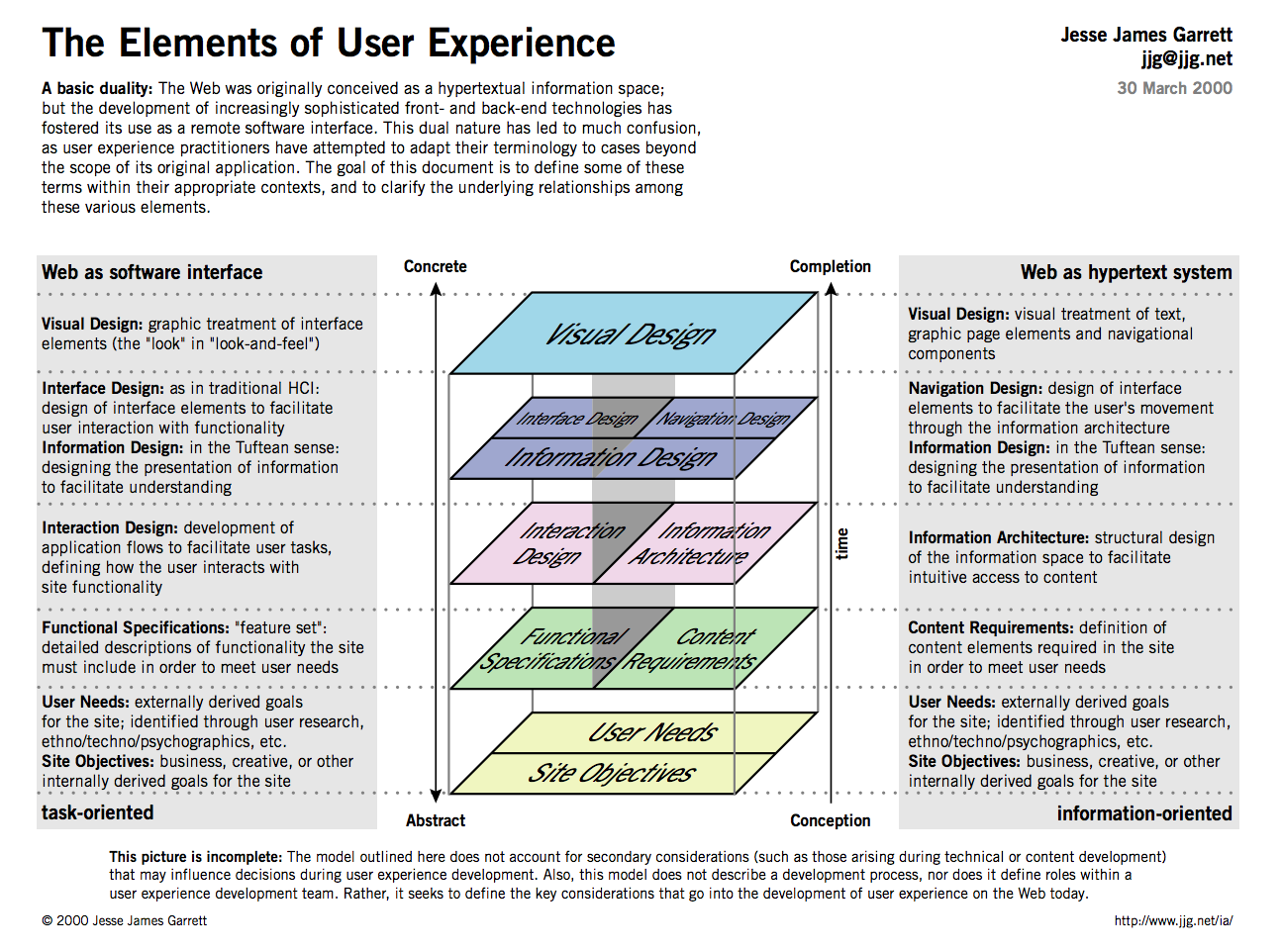

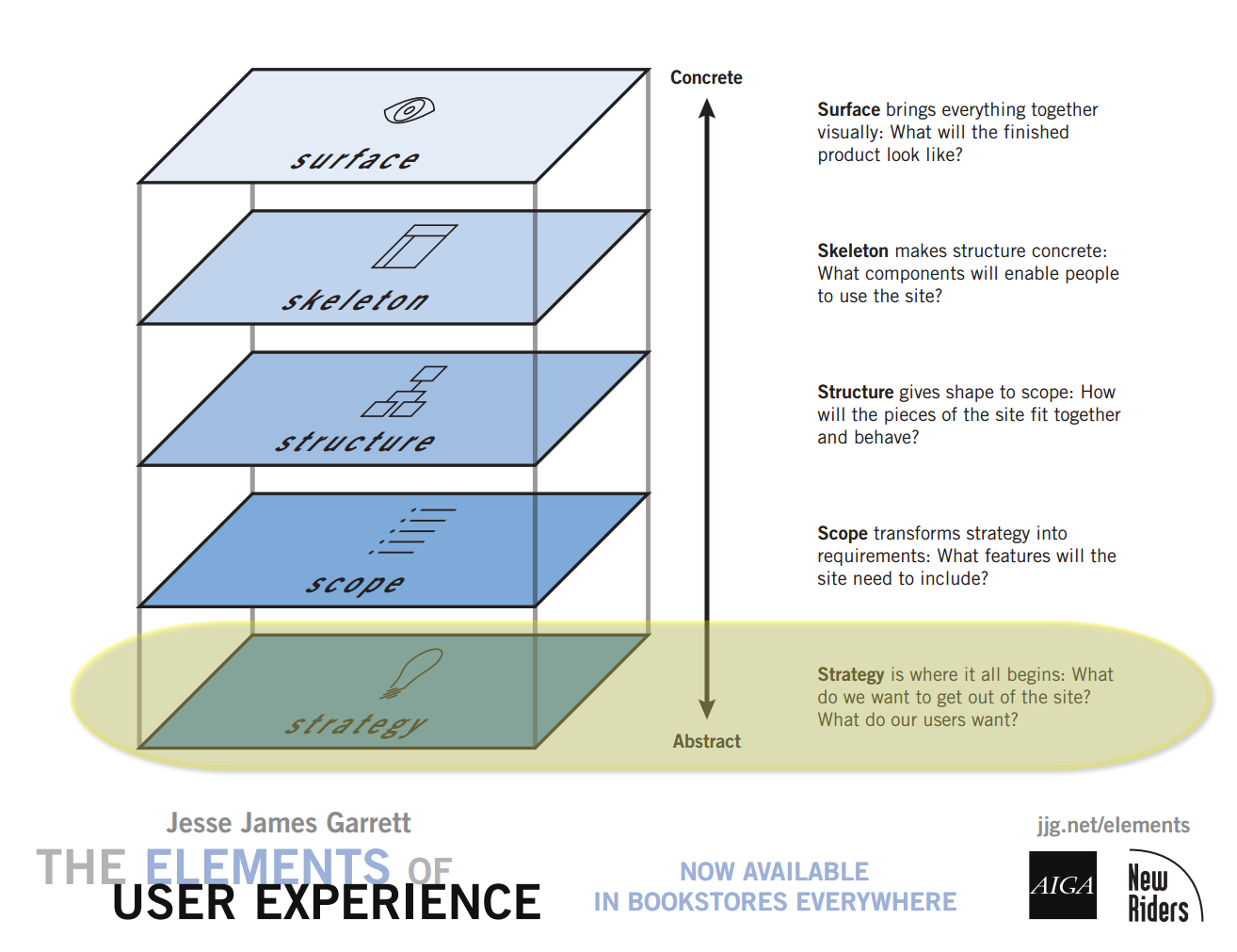

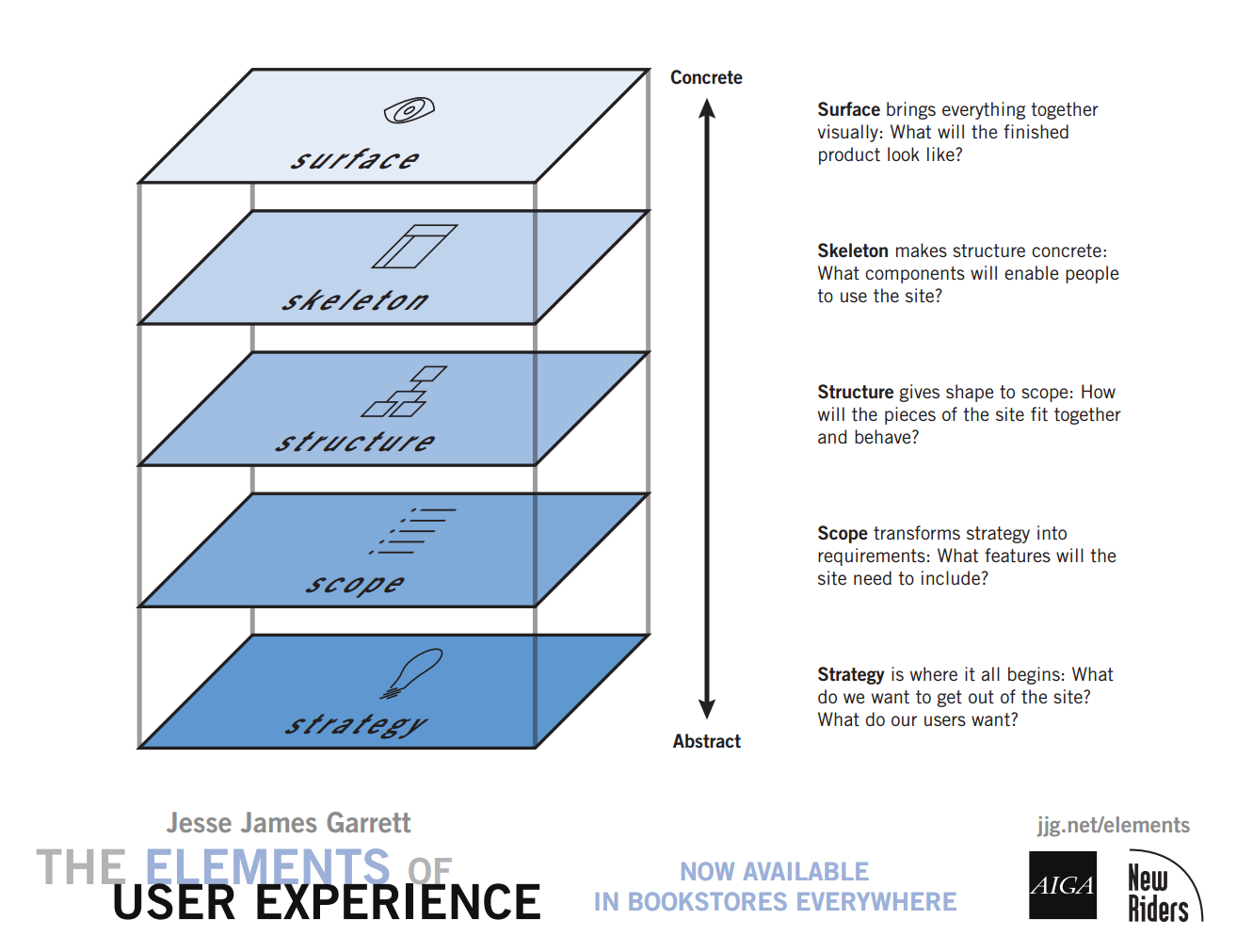

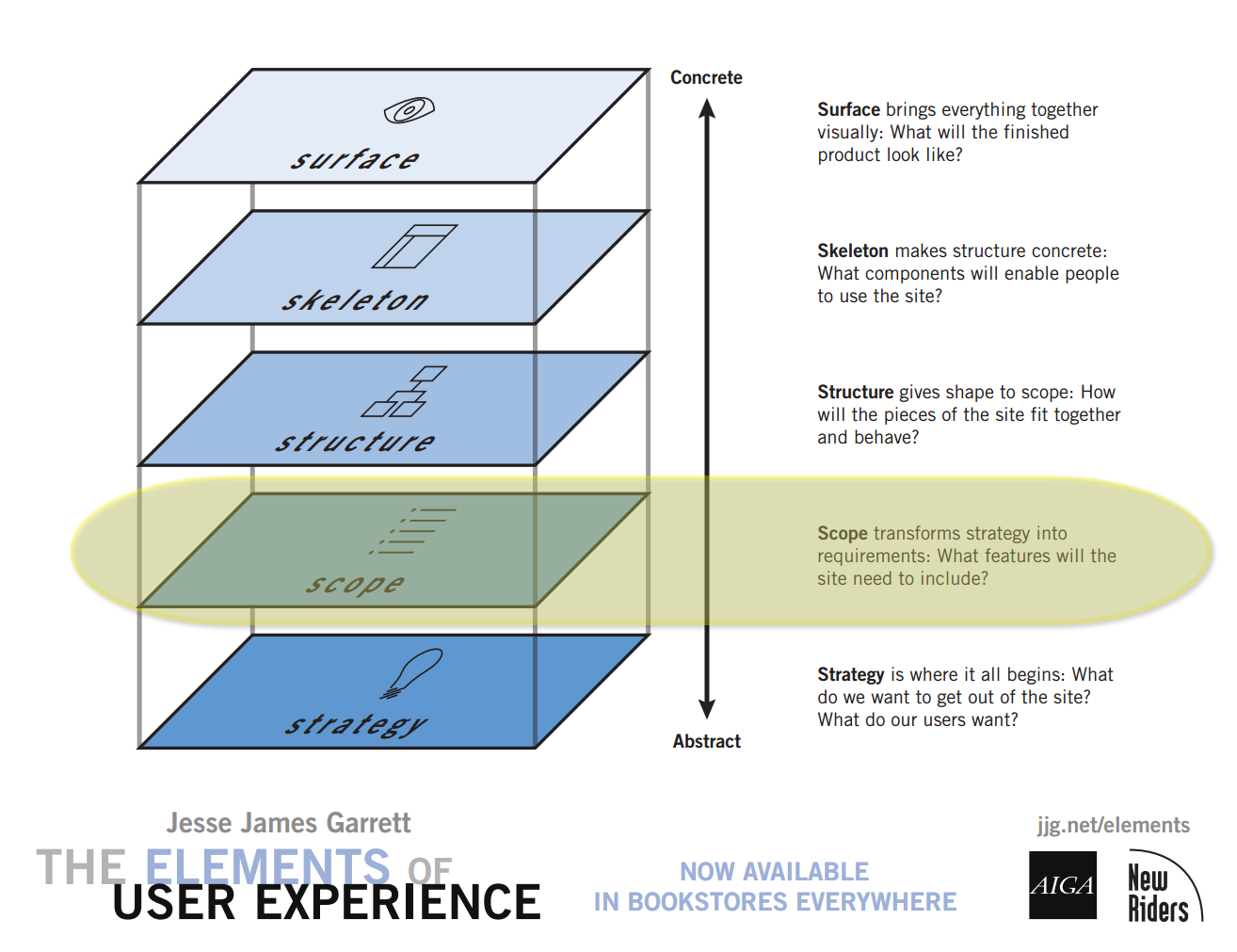

Elements of User Experience, slide54
5 Planes in More Detail, slide55
Planning and Designing a Site: Resources, slide56
Strategy, slide57
Who are our Users?, slide58

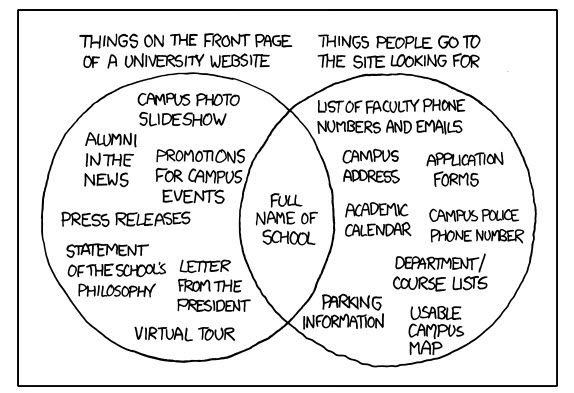

What Audiences can be identified?, slide59
Audience(s), slide60
Audiences for an Academic Department, slide61
Scope, slide62
Content, slide63
Think About the User, slide64

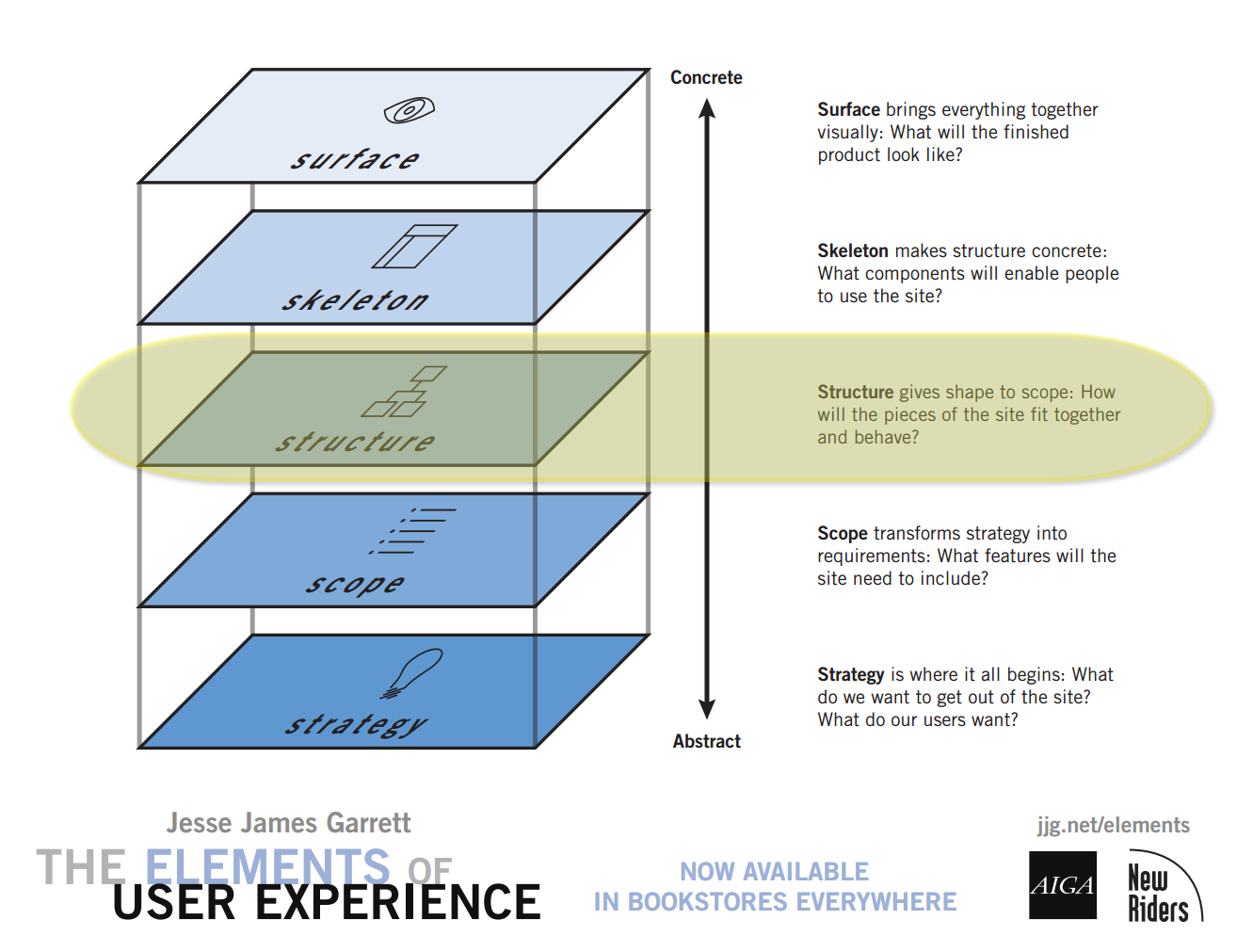

Structure, slide65
Structuring Content, slide66
Organize, slide67
Structural Models, slide68
Hierarchical, slide69

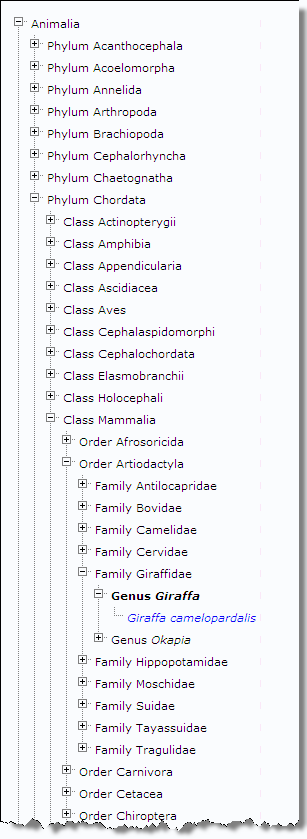

Biological, slide70

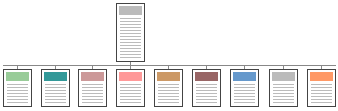

Too deep or too shallow?, slide71

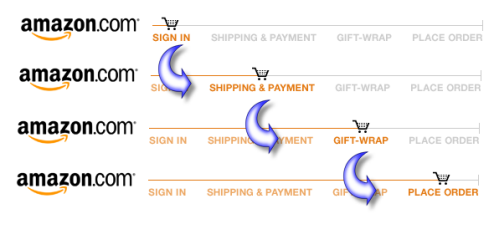

Sequential, slide72
Organic, slide73
Site Architecture, slide74
Label, slide75
Labels - Are there conventions?, slide76

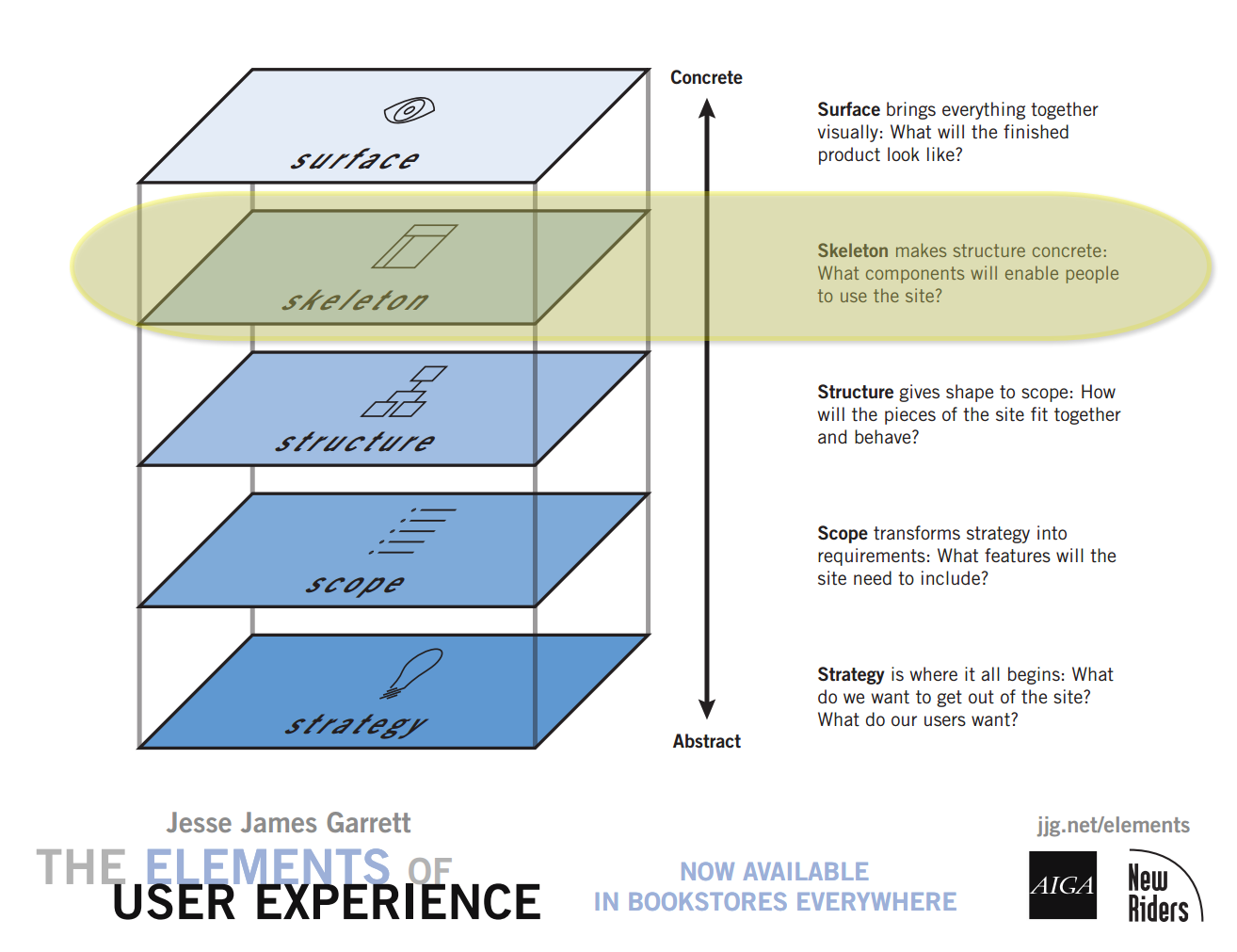

Skeleton, slide77
Page Components, slide78

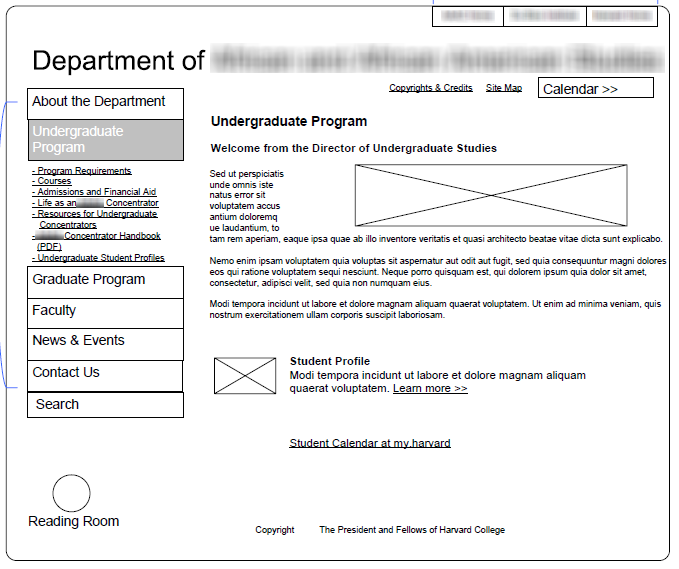

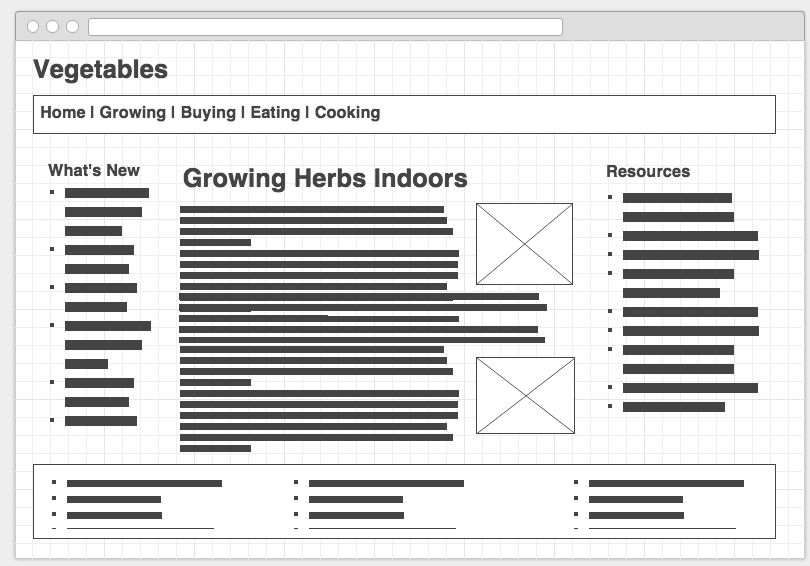

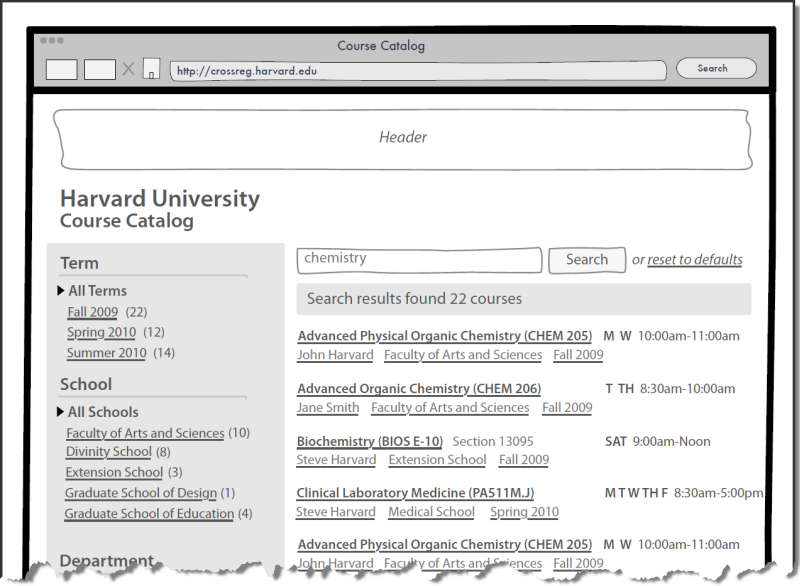

Wireframes and Sketches - "Low" to "High" Fidelity, slide79

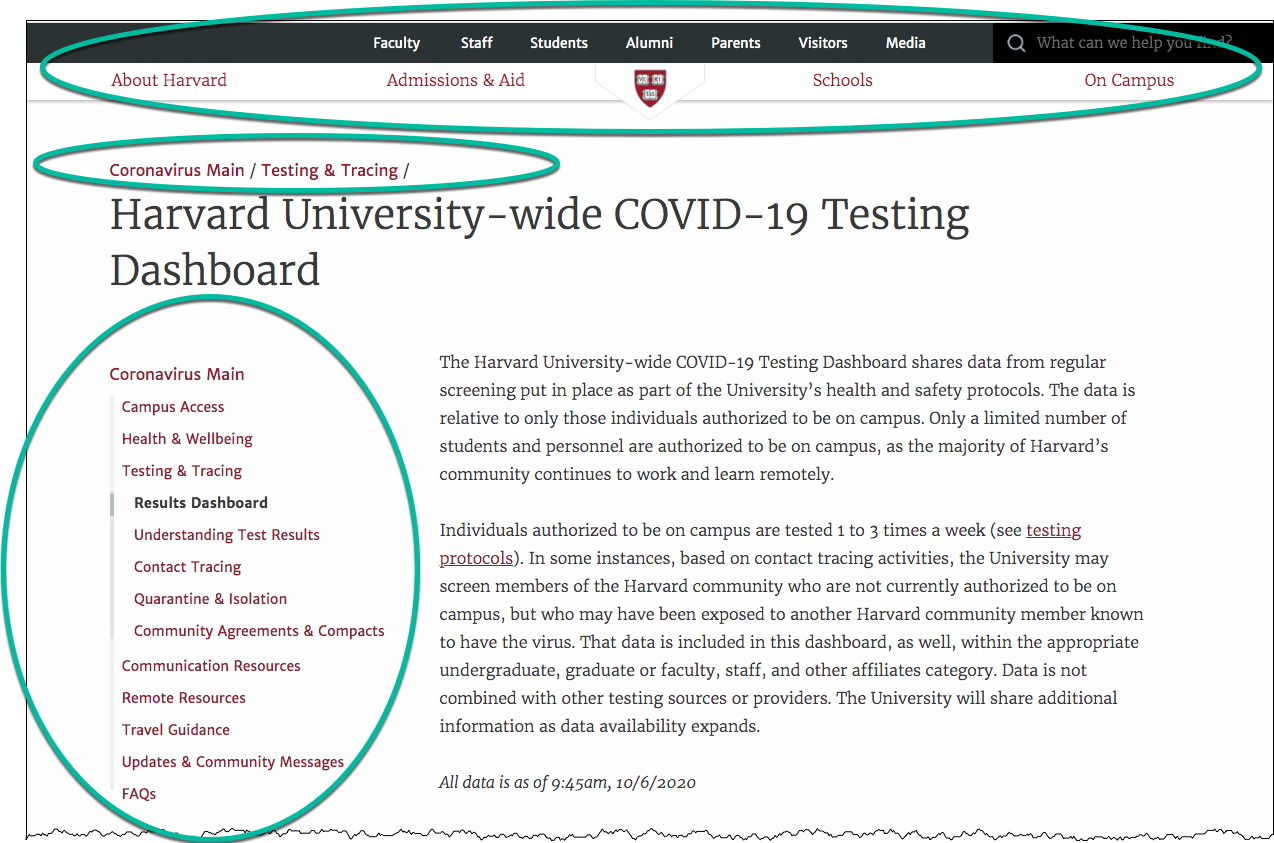

Navigation Systems, slide80
Some navigation systems illustrated, slide81

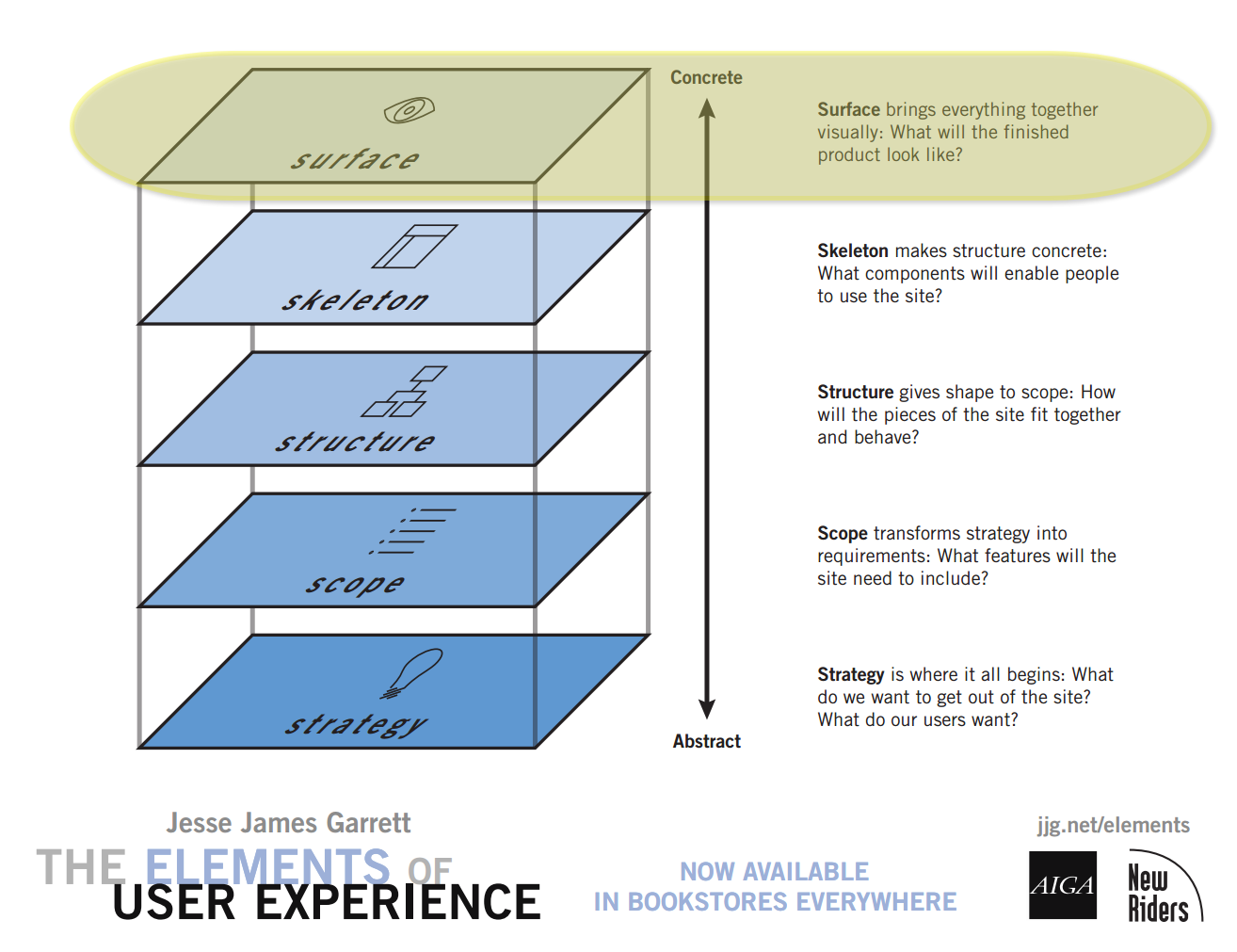

Surface, slide82
F-Pattern, slide83

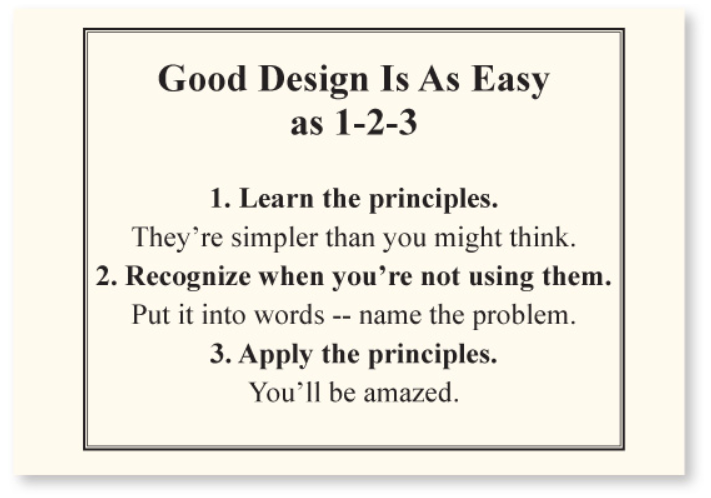

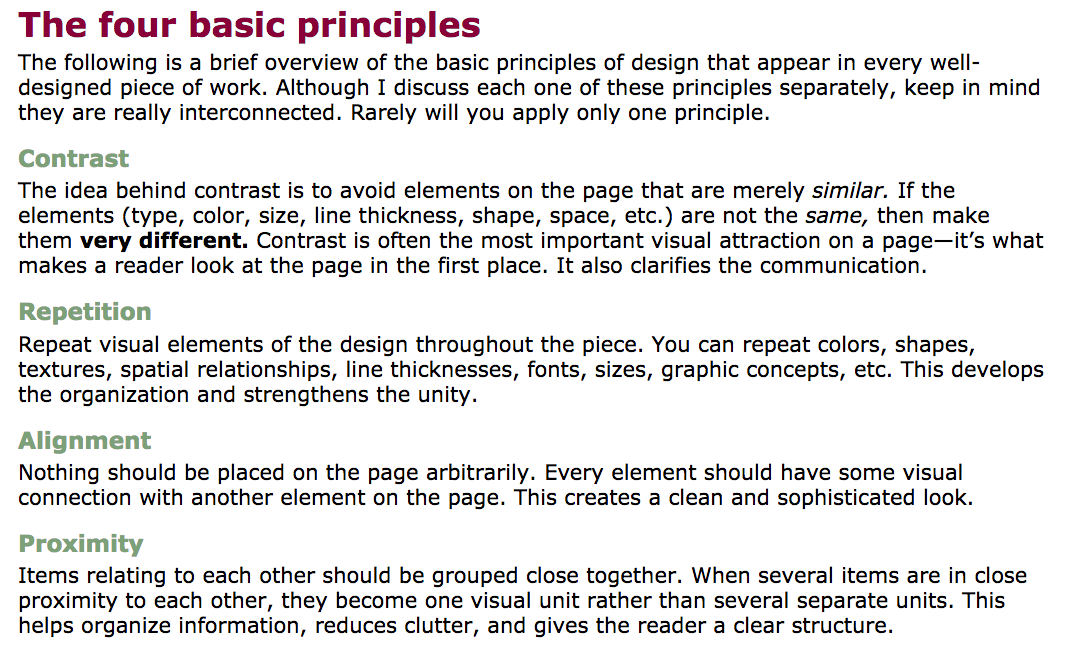

Non-Designer's Design Book, slide84
Non-Designer's Design Book, slide85
Colors, slide86

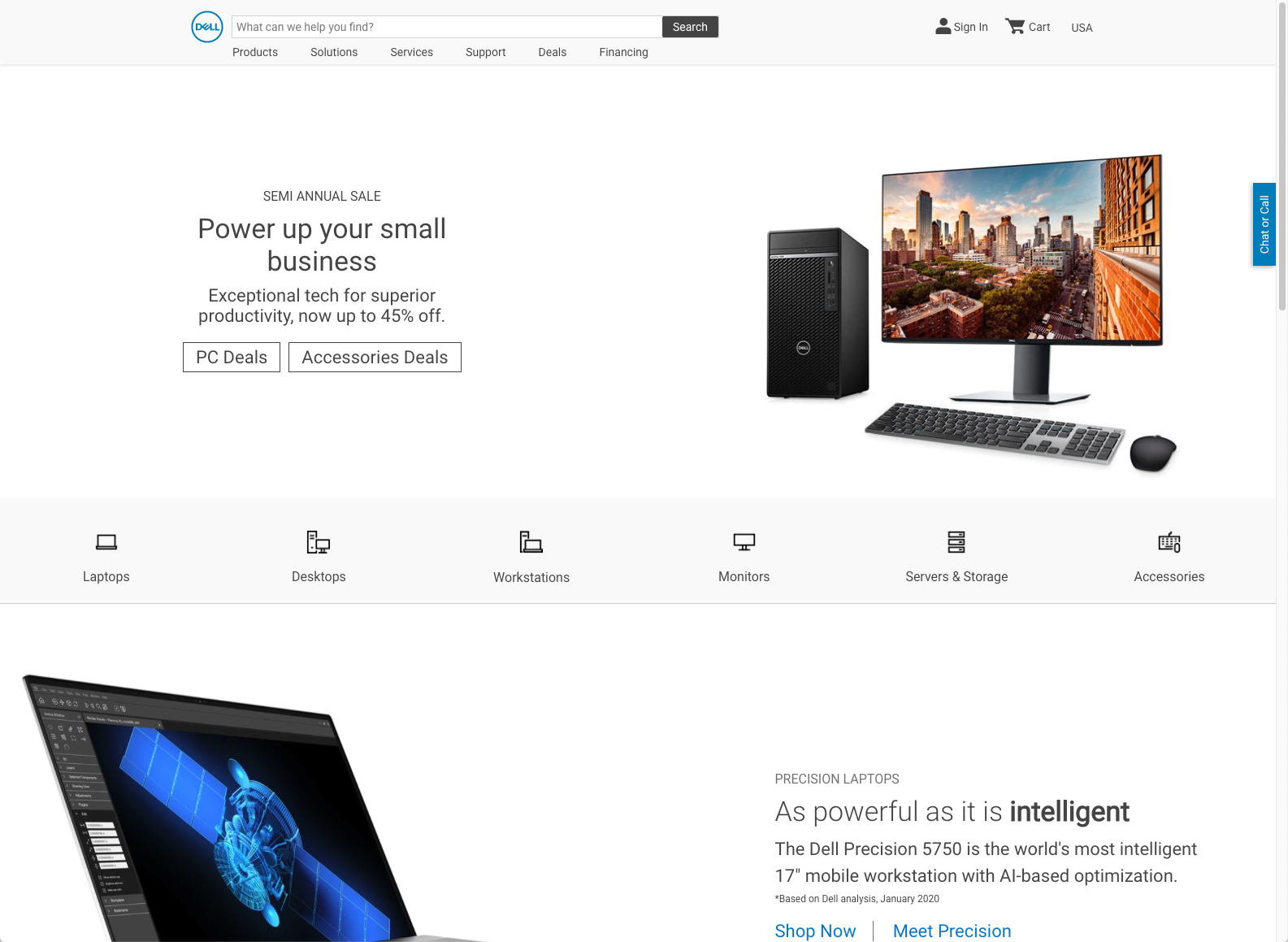

Home Page -- Don't Make Me Think (Steven Krug), slide87
Don't make me think, slide88

Presentation contains 88 slides

Image and Video Essentials

Images

• Use an appropriate format (JPEG for photographs; PNG for wordmarks, illustrations; SVG sometimes)
• If adjusting an image, start with the highest resolution, lowest compression available!
  • Set an appropriate image resolution
  • Set an appropriate compression

Images and the Web

• Content
• Design

Images and Markup

Two ways of including images:

1. Markup: img element
   • alt attribute
   • height and width attributes

   <img src="images/shield.png"
    alt="Harvard Veritas" height="328" width="281"/>

2. CSS: background-image property

   #header {
     background-image: url(images/shield.png);
     background-repeat: no-repeat;
   }

Graphics Formats for the Web

PNG

Portable Network Graphic

.png

JPEG

Joint Photographic Experts Group

.jpeg or .jpg

SVG

Scalable Vector Graphic

A vector based format that is becoming more important for the web and uses an XML-based format.

.svg and .svgz

WebP

Web Picture

WebP is a modern image format that provides superior lossless and lossy compression for images on the web. Using WebP, webmasters and web developers can create smaller, richer images that make the web faster.

.webp

GIF

Graphics Interchange Format

GIF goes back to the days of CompuServe in 1987 (remember that?!)

.gif

Other formats

Image formats you might encounter, but aren't super-relevant for the web:

• TIFF
• JPEG 2000 (JP2)
• HEIC (Apple Live Photos)
• RAW
• BMP
• ICO

image.jpg or image.JPG or image.jpeg — Does it matter?

JPG or jpg

• Yes. If your filename is "beach.JPG" then you need to reference it as "beach.JPG" -- having "beach.jpg" in the URL won't work!
• No. As long as the case of your filenames match the case in your URL references you'll be fine.

jpeg or jpg

• No. Media types can be mapped to multiple file extensions, so generally either picture.jpg or picture.jpeg filenames are fine.
  And for JPEG images, the media type (also known as MIME type) is "image/jpeg"

Graphics: Vector and Bitmap

Bitmap	Vector
Original image (PNG):	Original image (SVG):
Magnified (16x)	Magnified (16x)
Bitmap formats: PNG, JPEG, GIF	Vector formats: SVG

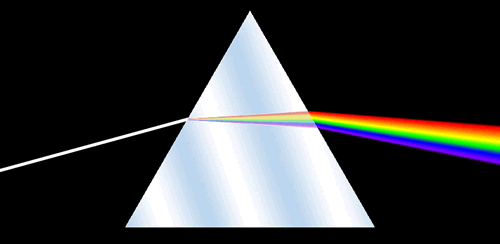

Colors

RGB Color Space

Color Depth

• RGB color is a 24-bit system (16 million colors)
• 8 bits (256 colors) for each channel (red, green, blue).

  2⁸x2⁸x2⁸ = 2^{(8 + 8 + 8)} = 2²⁴x = 16,777,216

RGB

• Three channels specified with decimal values (each channel 0 to 255):
  rgb(50, 150, 0)
• Three channels specified with hexadecimal values (each channel 00 to ff):
  #a51c30
• Three channels specified with percentage values (each channel 0% to 100%):
  rgb(50%, 10%, 75%)

Indexed Color Systems

An 8-bit indexed image has a palette of up to 256 colors that the image can contain. Color information is not stored for each pixel, but rather just a reference to which color in the palette.

Palettes

• Exact (if 256 or fewer colors)
• Adaptive (weighted based upon colors in document)
• Web Palette (216 Web Safe Colors)
• System
  • Windows
  • Macintosh

But what happens to the other colors?

If you take a photo that is saved in an RGB system (millions of colors) and then convert it to an indexed system with 256 colors, what happens?

• dither
• color-shift

Bitmap images: Size and Quality

Factors that can contribute to image size:

• Dimension
• Compression
• Number of Colors

Graphics Formats for the Web

Property	GIF Graphics Interchange Format	JPEG Joint Photographic Experts Group	PNG Portable Network Graphic		SVG Scalable Vector Graphics	WebP
Color System	8 bit indexed (256 colors)	RGB (24 bit; millions of colors)	8 bit indexed (256 colors) RGB (24 bit; millions of colors)		RGB	RGB
Compression	Lossless Compression (LZW; horizontal repeating units)	"Lossy" Compression (compression optimized for gradual color changes)	Lossless Compression		Lossless Compression	Lossless and Lossy
Other Features	.gif file extension Transparency Animation	.jpg and .jpeg file extensions No Transparency No Animation	.png file extension Transparency		.svg file extension Vector-based Transparency XML format	25% smaller than equivalent PNGs and JPEGs. Supports transparency
Typical Uses	Illustrations (logos, icons) Animated banners and icons Images with small dimension	Photographs	Any		Illustrations Graphs, Charts, Maps - 'plain' and 'interactive'	Any
Property	GIF Graphics Interchange Format	JPEG Joint Photographic Experts Group	PNG Portable Network Graphic		SVG Scalable Vector Graphics	WebP
Photograph 250 × 188 px	29.3 kb	16.8 kb	25.8 kb (indexed, 8-bit)	81.9 kb (RGB, 24-bit)	N/A	9.6 kb
Illustration 148 × 179 px	1.47 kb	6.12 kb	1.02 kb (indexed, 8-bit)	1.89 kb (RGB, 24-bit)	0.575 kb (compressed, 1.7 kb uncompressed; RGB, 24-bit)	0.724 kb

JPEG

Joint Photographic Experts Group

Property	JPEG Joint Photographic Experts Group
Color System	RGB (24 bit; millions of colors)
Compression	"Lossy" Compression (compression optimized for gradual color changes)
Other Features	.jpg and .jpeg file extensions No Transparency No Animation
Typical Uses	Photographs
Property	JPEG Joint Photographic Experts Group
Photograph 250 × 188 px	16.8 kb
Illustration 148 × 179 px	6.12 kb

JPEG Compression

The amount of compression (quality of image) for a JPEG image can be chosen (from a scale of 0 to 100). The image quality is inversely related to the amount of compression since the compression algorithm is "lossy".

Properties	Image
Quality: 80 34.1 kb
Quality: 70 26.0 kb
Quality: 60 22.4 kb
Quality: 50 17.0 kb
Quality: 40 14.3 kb
Quality: 30 6.97 kb
Quality: 20 4.80 kb
Quality: 10 3.75 kb
Quality: 1 3.21 kb

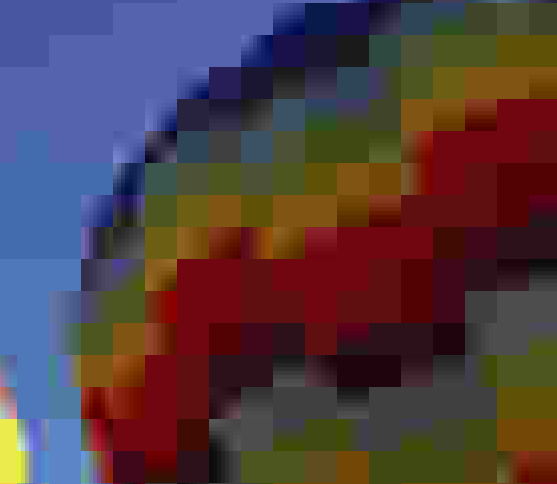

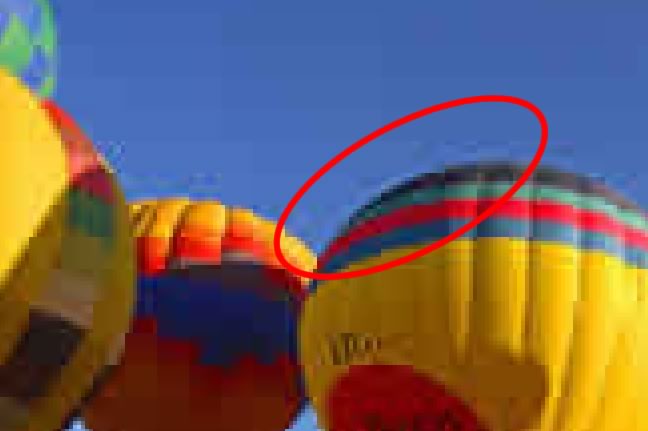

JPEG Compression Artifacts

Typically first appears at boundaries in images. Portions of image can also become "blocky".

Schlieren at boundaries:

Blockyness

GIF

Property	GIF Graphics Interchange Format
Color System	8 bit indexed (256 colors)
Compression	Lossless Compression (LZW; horizontal repeating units)
Other Features	.gif file extension Transparency Animation
Typical Uses	Illustrations (logos, icons) Animated banners and icons Images with small dimension
Property	GIF Graphics Interchange Format
Photograph 250 × 188 px	29.3 kb
Illustration 148 × 179 px	1.47 kb

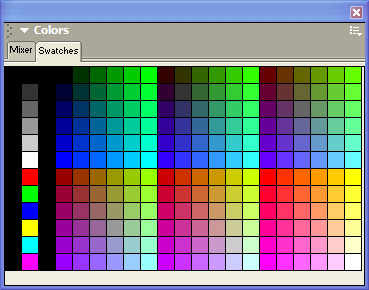

Palettes

An 8-bit indexed image has a palette of up to 256 colors that the image can contain. Color information is not stored for each pixel, but rather just a reference to which color in the palette.

Palettes

• Exact (if 256 or fewer colors)
• Adaptive (weighted based upon colors in document)

Not relevant today, but in the web's history:

• Web Palette (216 Web Safe Colors)
• System
  • Windows
  • Macintosh

Palettes: Exact, Adaptive, Web 216

Exact Palette
Image	Palette
Adaptive Palette
Image	Palette
Web 216 Palette
Image	Palette

Adaptive Palette: Shift and Dither

Color Shift

Image (16 colors; Color Shift)	Zoom

Dither

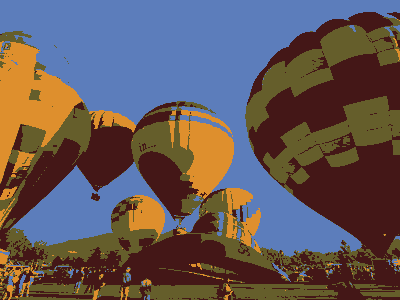

Image (16 colors; Dither)	Zoom

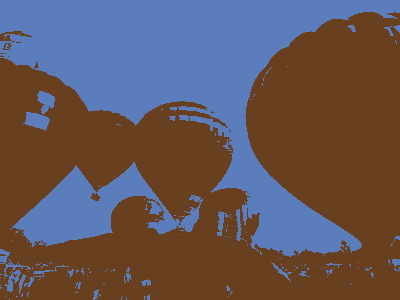

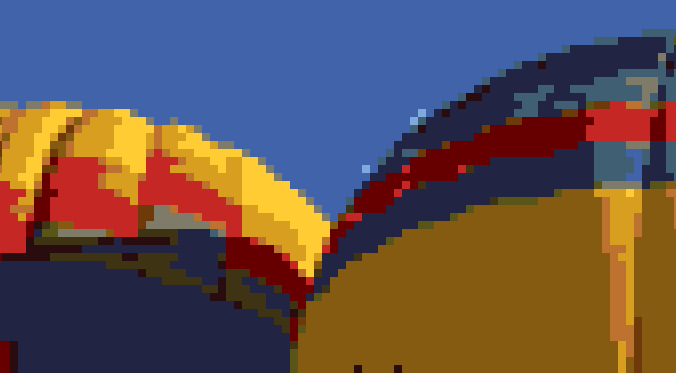

GIF Images and Bit Depth: Color Shift

Properties	Image	Palette (adaptive)
8 bit 256 colors 46.3 kb
7 bit 128 colors 36.2 kb
6 bit 64 colors 28.9 kb
5 bit 32 colors 21.9 kb
4 bit 16 colors 16.5 kb
3 bit 8 colors 10.9 kb
2 bit 4 colors 7.31 kb
1 bit 2 colors 2.84 kb

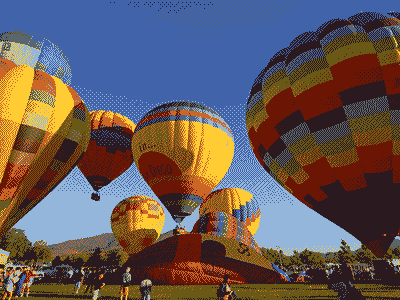

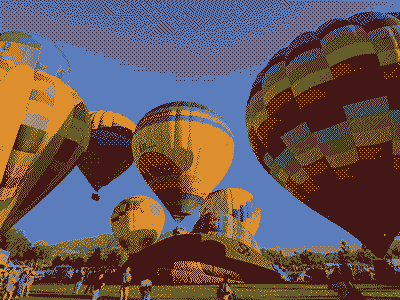

GIF Images and Bit Depth: Dither

Properties	Image	Palette (adaptive)
8 bit 256 colors 64.9 kb
7 bit 128 colors 52.3 kb
6 bit 64 colors 43.4 kb
5 bit 32 colors 34.7 kb
4 bit 16 colors 26.7 kb
3 bit 8 colors 18.6 kb
2 bit 4 colors 14.2 kb
1 bit 2 colors 5.86 kb

Compression for Indexed GIF

GIF LZW compression operates on horizontal blocks of the same color. Here are two images that are identical except for a 90 degree rotation. The vertical stripe GIF image is nearly twice as large as the horizontal stripe GIF image. The PNG images are the same size.

Format	Horizontal Stripes	Vertical Stripes
GIF	471 bytes	911 bytes
PNG	232 bytes	221 bytes

Compression and Dithering

A purple shade was created by alternating red and blue pixels.
32× magnification:

200×200px Image, Dithered and Solid

Image Format	Dithered Grid	Solid
PNG	225 bytes	209 bytes
GIF	601 bytes	303 bytes

Transparency

With PNG images, a color in the palette can be designated as "transparent". This lets any background colors or background images show through the transparent portions.

Star Image

Background Image
(satin.png)

Format	Background Color (gray)	Background Image satin.png
GIF No transparency
GIF White is transparent
GIF Blue is transparent
PNG No transparency
PNG White is transparent
PNG Blue is transparent

GIF Animation

• GIF supports animation
• giphy.com

PNG

Property	PNG Portable Network Graphic
Color System	8 bit indexed (256 colors) RGB (24 bit; millions of colors)
Compression	Lossless Compression
Other Features	.png file extension Transparency Animation through non-standard extension
Typical Uses	Any
Property	PNG - 8 bit	PNG - 24 bit
Photograph 250 × 188 px	25.8 kb (indexed, 8-bit)	81.9 kb (RGB, 24-bit)
Illustration 148 × 179 px	1.02 kb (indexed, 8-bit)	1.89 kb (RGB, 24-bit)

Compression for Indexed PNG

PNG images use a different compression algorithm than GIF. Note that for PNG, the vertical and horizontal striped images are the same size.

Format	Horizontal Stripes	Vertical Stripes
PNG	232 bytes	221 bytes
GIF	471 bytes	911 bytes

Compression and Dithering

A purple shade was created by alternating red and blue pixels.
32× magnification:

200×200px Image, Dithered and Solid

Image Format	Dithered Grid	Solid
PNG	225 bytes	209 bytes
GIF	601 bytes	303 bytes

Transparency

With PNG images, a color in the palette can be designated as "transparent". This lets any background colors or background images show through the transparent portions.

Star Image

Background Image
(satin.png)

Format	Background Color (gray)	Background Image satin.png
GIF No transparency
GIF White is transparent
GIF Blue is transparent
PNG No transparency
PNG White is transparent
PNG Blue is transparent

SVG

Property	SVG Scalable Vector Graphics
Type	Vector
Color System	RGB
Compression	Lossless Compression
Other Features	.svg file extension Transparency XML format Uses CSS properties!
Typical Uses	Illustrations (logos, icons) Vector Art
Illustration 300x300px	575 bytes compressed; 1.7 kb uncompressed

Basic SVG Shapes

Basic Shapes in SVG 1.1

SVG:

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN"
  "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
<svg width="300" height="200" xmlns="http://www.w3.org/2000/svg" version="1.1">
  <rect x="100" y="100" height="30" width="70" rx="10" ry="10"
    style="fill:green; stroke: black;"/>
  <circle cx="50" cy="20" r="15" style="fill:red; stroke: black;"/>
  <ellipse cx="60" cy="75" rx="15" ry="40" fill="yellow" stroke="black"/>
  <line x1="10" y1="3" x2="30" y2="70" stroke-width="5" stroke="magenta"/>
  <polyline fill="none" points="160,15,170,25,180,15,190,25,200,15,210,25,220,15"
    stroke="blue" stroke-width="3"/>
  <polygon points="100,80,150,40,200,60" fill="orange" stroke="black"/>
  <path d="M0 0 C 10 20, 30 20, 40 0" style="stroke: black; stroke-width: 3px; fill: transparent"  transform="translate(-20,-30)"/>
</svg>

SVG - Increasing Importance in the Future

• Vector (size and resolution advantages)
• HTML5 canvas element
• CSS control
  • CSS stylesheets
  • SVG style attributes same/similar to CSS properties

Colorado State Flag

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
  <svg xmlns="http://www.w3.org/2000/svg" width="1800" height="1200">
  <!-- Created per specification at http://www.50states.com/flag/coflag.htm by Robert Fleming -->
  <!-- from https://en.wikipedia.org/wiki/File:Flag_of_Colorado.svg -->
   <rect width="1800" height="1200" fill="#002868"/>
   <rect width="1800" height="400" y="400" fill="white"/>
   <!-- 76 + 180*sqrt(55)/36 ~= 113.1 -->
   <path d="M1130.81,750A400,400 0 1,1 1130.81,450L760,600Z" fill="#bf0a30"/>
   <circle cx="760" cy="600" r="200" fill="#FFD700"/>
  </svg>

Harvard Division of Continuing Education Shield

Massachusetts Map

Election results by town.

Icons

SVG Example - Molecule Viewer

Molecule Viewer

SVG and D3 JS Library

D3.js

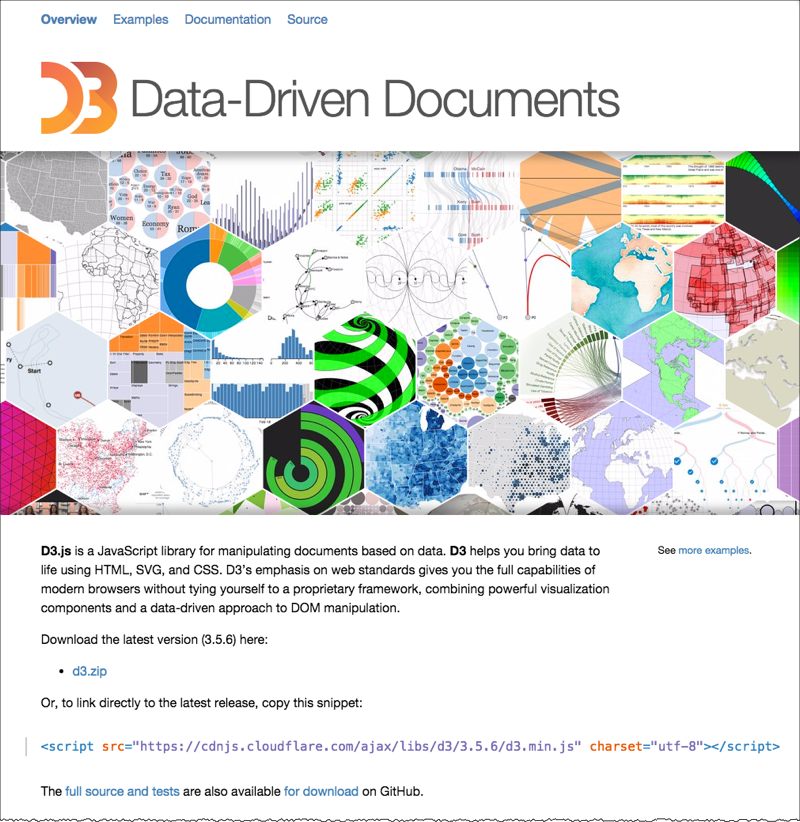

D3.js is a JavaScript library for manipulating documents based on data. D3 helps you bring data to life using HTML, SVG, and CSS. D3’s emphasis on web standards gives you the full capabilities of modern browsers without tying yourself to a proprietary framework, combining powerful visualization components and a data-driven approach to DOM manipulation.

WebP - Web Picture

• WebP

358 kb WebP vs 538 kb JPEG

1920 x 1280 px

Comparison of Image Formats

Graphics Formats for the Web

Property	GIF Graphics Interchange Format	JPEG Joint Photographic Experts Group	PNG Portable Network Graphic		SVG Scalable Vector Graphics	WebP
Color System	8 bit indexed (256 colors)	RGB (24 bit; millions of colors)	8 bit indexed (256 colors) RGB (24 bit; millions of colors)		RGB	RGB
Compression	Lossless Compression (LZW; horizontal repeating units)	"Lossy" Compression (compression optimized for gradual color changes)	Lossless Compression		Lossless Compression	Lossless and Lossy
Other Features	.gif file extension Transparency Animation	.jpg and .jpeg file extensions No Transparency No Animation	.png file extension Transparency		.svg file extension Vector-based Transparency XML format	25% smaller than equivalent PNGs and JPEGs. Supports transparency
Typical Uses	Illustrations (logos, icons) Animated banners and icons Images with small dimension	Photographs	Any		Illustrations Graphs, Charts, Maps - 'plain' and 'interactive'	Any
Property	GIF Graphics Interchange Format	JPEG Joint Photographic Experts Group	PNG Portable Network Graphic		SVG Scalable Vector Graphics	WebP
Photograph 250 × 188 px	29.3 kb	16.8 kb	25.8 kb (indexed, 8-bit)	81.9 kb (RGB, 24-bit)	N/A	9.6 kb
Illustration 148 × 179 px	1.47 kb	6.12 kb	1.02 kb (indexed, 8-bit)	1.89 kb (RGB, 24-bit)	0.575 kb (compressed, 1.7 kb uncompressed; RGB, 24-bit)	0.724 kb

Cartoon Art

GIF	PNG	JPEG	SVG	WebP
GIF 1,511 bytes	PNG; 8 bit 1,031 bytes	JPEG (Quality 100) 14,660 bytes	SVG 575 bytes (compresssed)	WebP 725 bytes
	PNG; 24 bit 1,944 bytes	JPEG (Quality 6) 1,530 bytes

Original image from the works of David P. Heitmeyer

Working with Images

Graphics Tools

• Pixlr (Web, Desktop, Mobile)
• Adobe

  • Installing Adobe Creative Cloud software, including Acrobat, Photoshop, etc.
  • Adobe Photoshop
  • Adobe Illustrator
• Gimp (Open Source)
• Corel
  • PaintShop
  • CorelDRAW
• Gravit
• Acorn
• Affinity Photo (Mac Only)
• Sketch

Command Line Tool

• ImageMagick
  Creating thumbnails, converting formats.

Services - imgix

• imgix

Imgix

• imgix.com
• Make your images available; get different versions or maniuplations via URL parameters

Manipulations

• Original Image - Glacier National Park
  https://cs12.imgix.net/gnp06.jpg
• Different widths:
  • ?w=240 - 240 px wide (aspect ratio maintained)
  • ?w=480 - 480 px wide
  • ?w=960 - 960 px wide
  • ?w=1920 - 1920 px wide
• Different formats:
  • ?w=1024&fm=jpg - JPG
  • ?w=1024&fm=png - PNG
  • ?w=1024&fm=webp - WebP
• Different compression quality:
  • ?w=1024&q=70
  • ?w=1024&q=30
  • ?w=1024&q=10
• Auto: ?auto=format,compress,enhance&w=1024

imgix and thumbnails and cropping

Large image:

Thumbnail images and cropping

• Thumbnail - 300 px wide:
  ?w=300

• Thumbnail - 300x300 cropped:
  ?w=300&h=300&fit=crop

• Thumbnail - 300x300 entropy cropped:
  ?w=300&h=300&fit=crop&crop=entropy


Finding Images to Use

• Unsplash. “Photos for everyone. Unsplash is internet’s source of freely usable images.”
• Pixabay. “Pixabay is a vibrant community of creatives, sharing copyright free images, videos and music. All contents are released under the Pixabay License, which makes them safe to use without asking for permission or giving credit to the artist - even for commercial purposes.”
• Pexels. Free stock photos and videos you can use everywhere. ✓ High-quality ✓ 100% free ✓ No attribution needed
• unDraw. Open source illustrations for any idea.
• Creative Commons Search. “Browse over 500 million images, available for reuse. All our content is under Creative Commons licenses or in the public domain.”

Placeholder Images

placeholder.com is a free image placeholder service for web designers, serving billions and billions of images each year.

You can specify image size & format (.GIF, .JPG, .PNG, .WEBP), background color & text color, as well as the text.

https://via.placeholder.com/300x150/a51c30/ffffff.png?text=CSCI%20E-12

• 300x150 – dimensions
• a51c30 – hexadecimal color of image
• ffffff – hexadecimal color of text
• .png – image format
• ?text=CSCI+E-12 – specifies text

Other examples:

• https://via.placeholder.com/400x200/007A33/ffffff.jpg?text=Boston+Celtics



• https://via.placeholder.com/600x225/BD3039/0C2340.webp?text=Red+Sox



• https://via.placeholder.com/300x150/FFB81C/000000.gif?text=Boston+Bruins



Start with Original PSD/AI/etc. or High Resolution PNG or JPEG

• If you contract out: get the original/source files!
  Keep track of them!
  Make sure others know!
• Always start with the original file format (e.g. PSD, AI, etc.) or high-resolution PNG or JPEG.
• Size images accordingly!
  • Don't shrink full-resolution images by using "height" and "width" CSS
  • Don't enlarge images from smaller ones -- you can only go one way (larger to smaller)

Responsive Images

• MDN - Responsive Images - multiple sizes and/or multiple resolutions

Think about three things:

• different sized images
• different resolution images, but same size
• different images based on size (e.g. different crop)

srcset and different sizes

• Example 1
• Example 2

  <img src="https://cs12.imgix.net/gnp06.jpg" alt="Glacier National Park"
  srcset="https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=200 200w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=232 232w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=269 269w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=312 312w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=362 362w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=420 420w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=487 487w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=565 565w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=656 656w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=761 761w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=882 882w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=1023 1023w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=1187 1187w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=1377 1377w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=1598 1598w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=1853 1853w,
           https://cs12.imgix.net/gnp06.jpg?auto=compress,enhance,format&amp;w=2048 2048w"/>

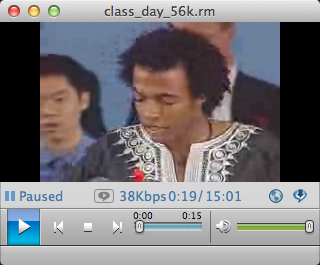

Video: Then and Now

• 2001. RealVideo, RealPlayer, 56 kbps

• 2021. AV1, HTML5 Browser, Broadband
  Dune


What's Changed since 2001

• Better codecs
• Faster CPUs
• Greater Bandwidth
• Standards

Video vs Images

<img src="images/flower.png" alt="flower"/>

Video is Different

• Large volume of data
• Time-sensitive, real-time delivery
• Native (HTML5) players

Formats & Codecs

• File format (containers)
  • mp4, webm
• Codecs
  • H.264, AV1, VP9

Video and the Browser

• HTML5 <video > tag and native player, often configured via JavaScript libraries
• Plugins: Video players in Flash, Silverlight. No longer!

Download vs Stream

• Download
  • HTTP Download
  • Progressive Download
  • Standard Web Server
• Streaming
  • Files in small chunks, delivered by HTTP
  • HLS (HTTP Live Streaming; Apple)
  • DASH (Dynamic Adaptive Streaming)

HTTP Live/Dynamic Streaming

• Video split into many smaller files
• Manifest provides listing of the files and options

m3u8 manifest file from Mux Video

  #EXTM3U
  #EXT-X-VERSION:5
  #EXT-X-INDEPENDENT-SEGMENTS

  #EXT-X-STREAM-INF:BANDWIDTH=2516370,AVERAGE-BANDWIDTH=2516370,CODECS="mp4a.40.2,avc1.640020",RESOLUTION=1280x720,CLOSED-CAPTIONS=NONE
  https://manifest-gce-us-east1-production.fastly.mux.com/.../rendition.m3u8
  #EXT-X-STREAM-INF:BANDWIDTH=1640580,AVERAGE-BANDWIDTH=1640580,CODECS="mp4a.40.2,avc1.640020",RESOLUTION=960x540,CLOSED-CAPTIONS=NONE
  https://manifest-gce-us-east1-production.fastly.mux.com/.../rendition.m3u8
  #EXT-X-STREAM-INF:BANDWIDTH=994068,AVERAGE-BANDWIDTH=994068,CODECS="mp4a.40.2,avc1.64001f",RESOLUTION=640x360,CLOSED-CAPTIONS=NONE
  https://manifest-gce-us-east1-production.fastly.mux.com/9.../rendition.m3u8
  #EXT-X-STREAM-INF:BANDWIDTH=697078,AVERAGE-BANDWIDTH=697078,CODECS="mp4a.40.2,avc1.64001e",RESOLUTION=480x270,CLOSED-CAPTIONS=NONE
  https://manifest-gce-us-east1-production.fastly.mux.com/.../rendition.m3u8

rendition.m3u8

#EXTM3U
#EXT-X-TARGETDURATION:6
#EXT-X-VERSION:3
#EXT-X-PLAYLIST-TYPE:VOD
#EXTINF:5,
https://chunk-gce-us-east1-production.fastly.mux.com/v1/chunk/0.ts
#EXTINF:5,
https://chunk-gce-us-east1-production.fastly.mux.com/v1/chunk/1.ts
#EXTINF:5,
https://chunk-gce-us-east1-production.fastly.mux.com/v1/chunk/2.ts
#EXTINF:5,
https://chunk-gce-us-east1-production.fastly.mux.com/v1/chunk/3.ts
#EXTINF:5,
https://chunk-gce-us-east1-production.fastly.mux.com/v1/chunk/4.ts
#EXTINF:5,
https://chunk-gce-us-east1-production.fastly.mux.com/v1/chunk/5.ts
....continues......

Video Quality

• Frame size
  480p, 720p, 1080p, 1920p
• Frame rate
  24, 30 fps
• Image quality (adjusting lossy compression to work within a bitrate)

Video Hosting

• Youtube, Vimeo
• Wowza
• Panopto
• Kaltura
• Limelight
• Brightcove
• Mux Video

Embedding Video

• "embed" click, copy :)
• More control with JavaScript video libraries. Some are proprietary to the service, others are open.

Examples

• Example 1 - video element and mp4 file


                <video controls width="600" poster="images/bigbuckbunny.png">
        <source src="video/BigBuckBunny.mp4" type="video/mp4">
        Sorry, your browser doesn't support embedded videos.
    </video>

• Example 2 - Video JS library and video from Mux Video platform

  <video
      id="my-video" class="video-js" controls preload="auto"
      data-setup='{"poster": "images/bigbuckbunny.png"}'>

      <source src="https://stream.mux.com/K7mw8M3qOl5t35gUaYy9FxmYkGcZHMYq7xkwab01Q9MM.m3u8"
              type="application/x-mpegURL" />

      <p class="vjs-no-js">
        To view this video please enable JavaScript, and consider upgrading to a
        web browser that
        <a href="https://videojs.com/html5-video-support/" target="_blank">supports HTML5 video</a>
      </p>
  </video>
  <script src="https://vjs.zencdn.net/7.15.4/video.min.js"></script>

Elements of User Experience

• The Elements of User Experience: User-Centered Design for the Web
• Planes Poster - Detailed
• The Elements of User Experience -- Harvard Library Online Resource

5 Planes in More Detail

• The Elements of User Experience: User-Centered Design for the Web
• Simple Planes Poster

Planning and Designing a Site: Resources

•
  Williams, Robin. The Non-designer's Design Book : Design and Typographic Principles for the Visual Novice. Fourth ed. 2015.

  Harvard Library: The non-designer's design book by Robin Williams

•
  Krug, Steve. Don't Make Me Think, Revisited : A Common Sense Approach to Web Usability. Third ed. 2014.

  Harvard Library - Online Resource

Strategy

Clear and explicit understanding of

• What does the company/organization want from the site? What is "success"?
• What do the users want from the site?

Who are our Users?

• Most sites get a variety of users
• Some audiences will be "primary", others "secondary"
• What are the target audience(s) and what are their information needs?

Most sites will have multiple audiences.

What Audiences can be identified?

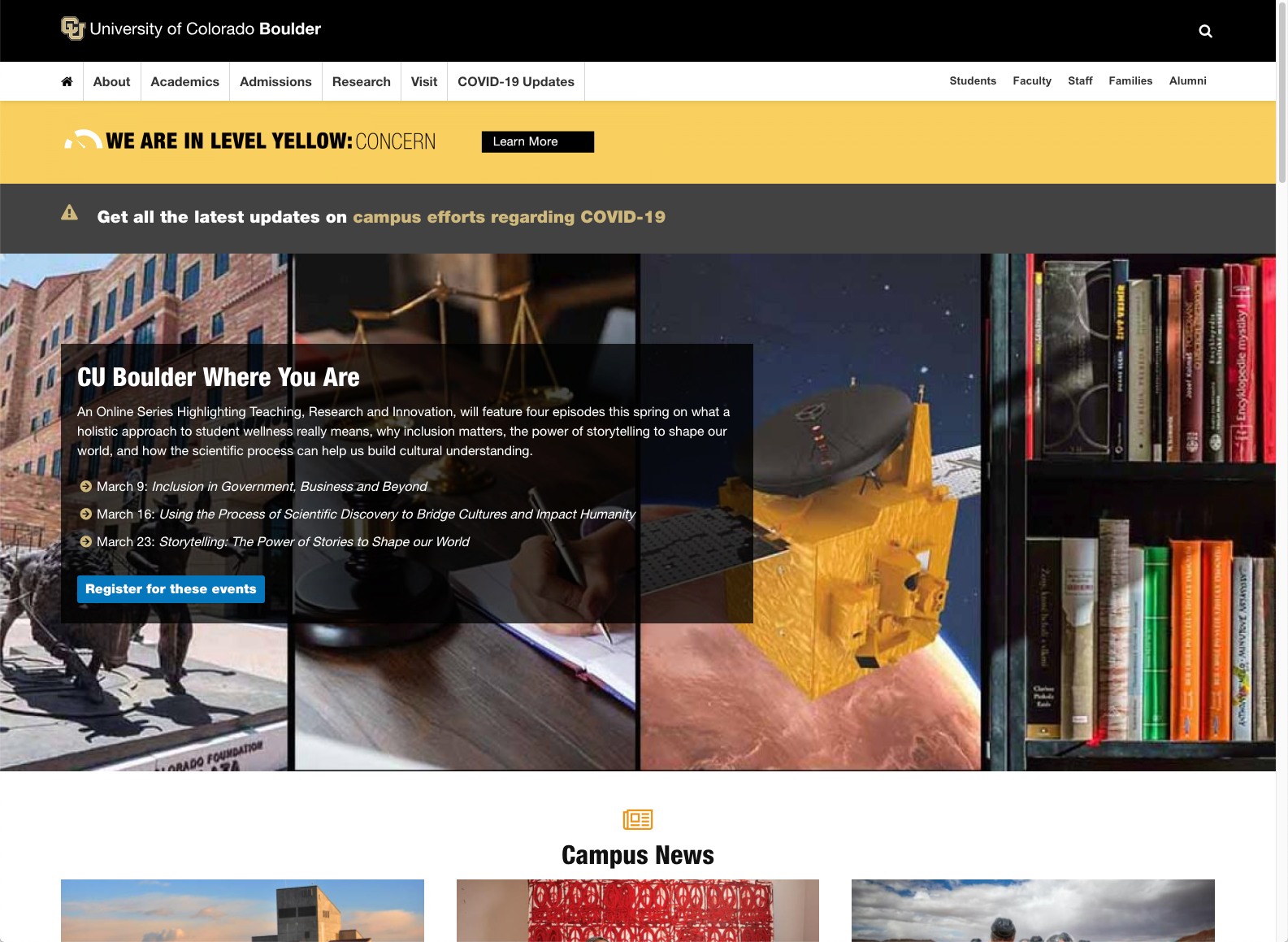

University of Colorado

Dell

Audience(s)

• Who are they?
• What are their goals?
  • their information needs
  • tasks/actions they are performing

Know Your Audience

• Be clear on who you are building for. Understand their needs.
• User testing, market research, focus groups.
• Feedback from users. Pay attention to what your users do, not just what they say.
• Keep in mind that as number of target audiences increase, difficulty of web design increases.

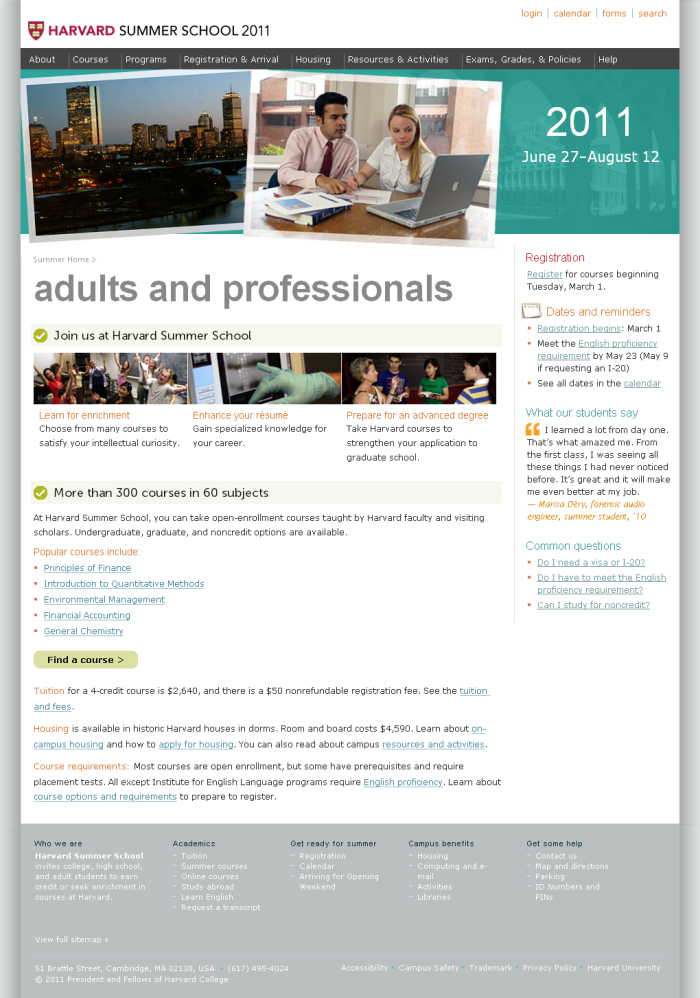

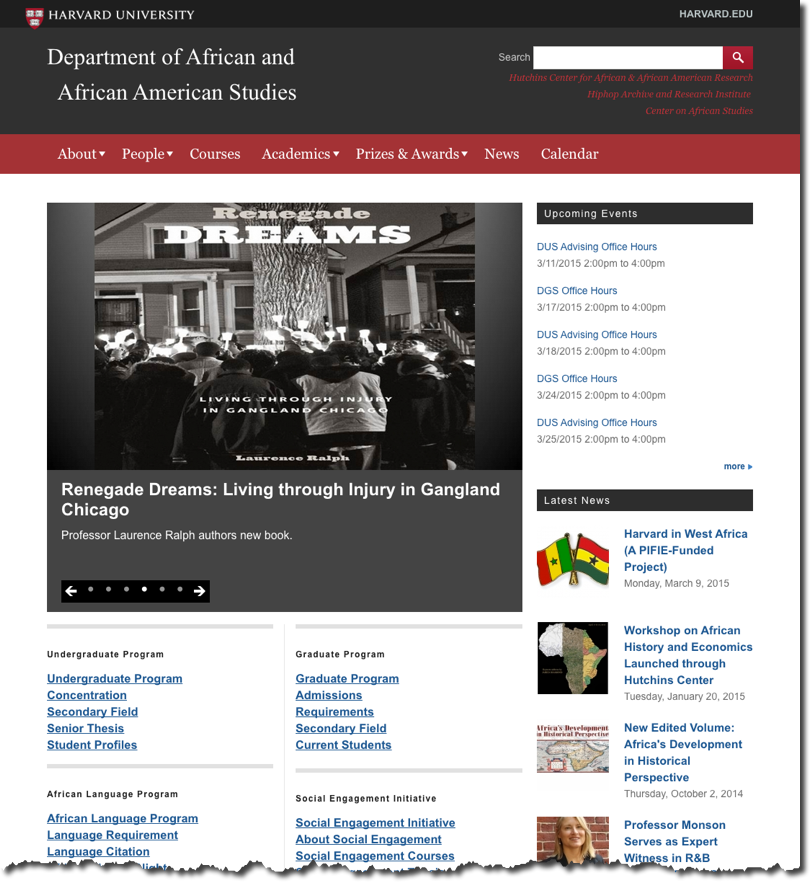

Audiences for an Academic Department

• Undergraduate Students
  • Concentrators (Majors)
  • Potential concentrators
  • Non-concentrators
• Graduate Students
• Potential Graduate Students
• Faculty
  • Current
  • Potential
• Researchers
• Public

Scope

Define content or functionality requirements.

What's "in" and what's "out" -- or at least what's "later".

Start broad, then narrow and refine.

Content

Questions to ask about content:

• Does it fit purpose of site?
• Does it suit the audience?
• Would your users find this useful?

Approaching a Project

• What content already exists in web or other media types (brochures, pamphlets, statements, etc.).
  • Adapt (or re-adapt) it for the web
• What content would be good to develop for the site?
  • Create it for the web
• Define incremental goals to avoid "scope creep"
  • Initial Phase
  • Additional Phases

Think About the User

Structure

Structuring Content

Organize, Label, (Navigate)

• Organize and Categorize
• Label
• Navigate

Organize

• Strategy-driven: Top-down
• Content-driven: Bottom-up

Plan for Growth

How to?

• Sticky-notes or index cards
• whiteboard or wall

Structural Models

• Hierarchical

• Sequential

• Organic


Hierarchical

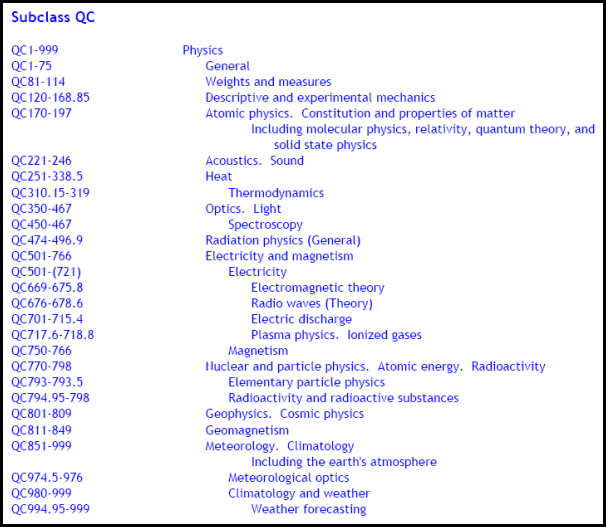

Library of Congress Classification

"Q" - Science
"QC" - Physics

Biological

• Kingdom
  • Phylum
    • Class
      • Order
        • Family
          • Genus
            • Species

Catalog of Life

Too deep or too shallow?

Deep

Shallow

Sequential

Organic

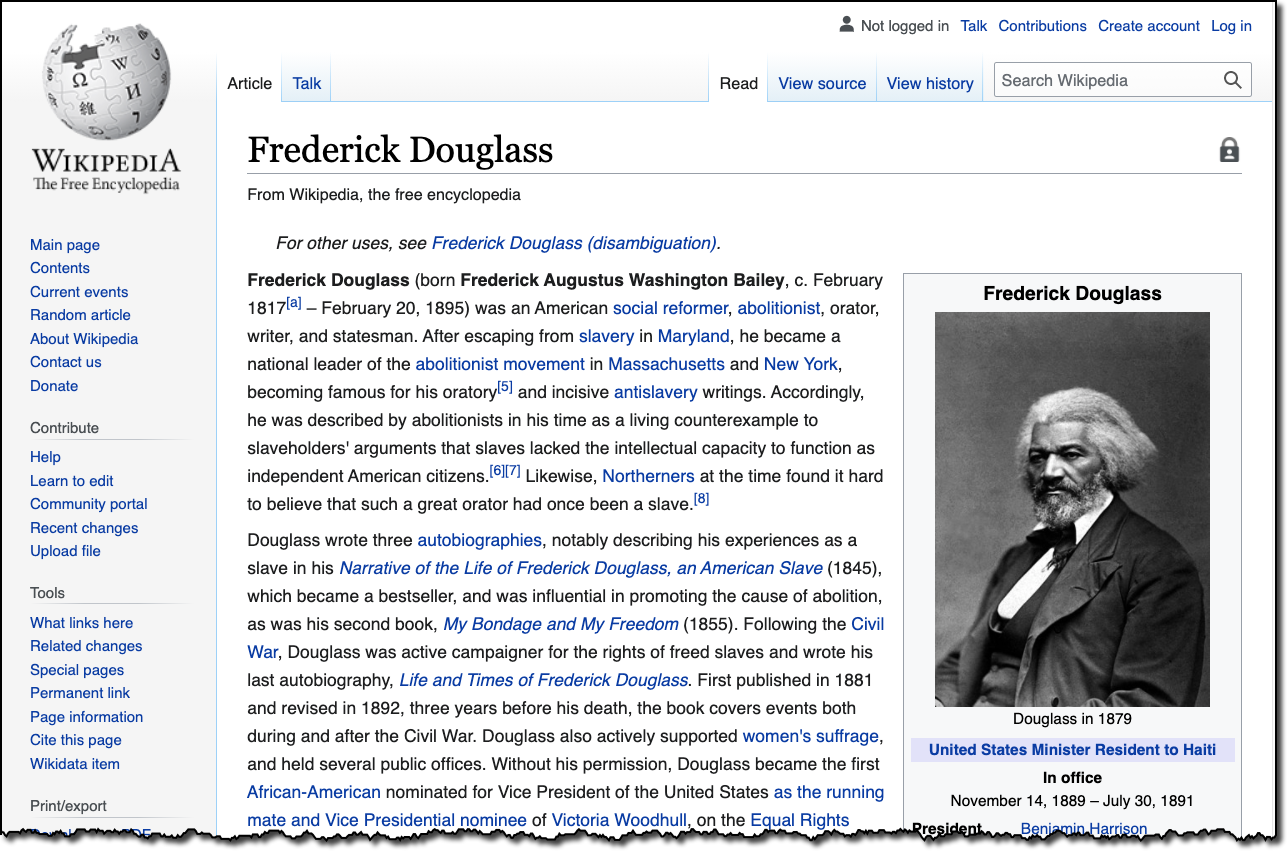

Wikipedia.com

Site Architecture

• Topics
• Audience
• Task-Oriented
• Search
• Internal Organization

Label

• Know your audience
• Test your labels (ask your audience)
  • Card Sort - physical or online, e.g. Optimal Sort
  • Ask questions
    • Where can I get a driver for my HP ENVY 5540?
    • What would expect to find in the category of Synergetic Integrated Scalable Enterprise Solutions?
    • What IT degree programs are available?

Labels - Are there conventions?

Categories and Labels from News Sites

CNN

Fox News

ABC News

CBS

New York Times

NPR

BBC

NBC

Skeleton

Page Components

• Header
• Navigation
• Content
• Footer

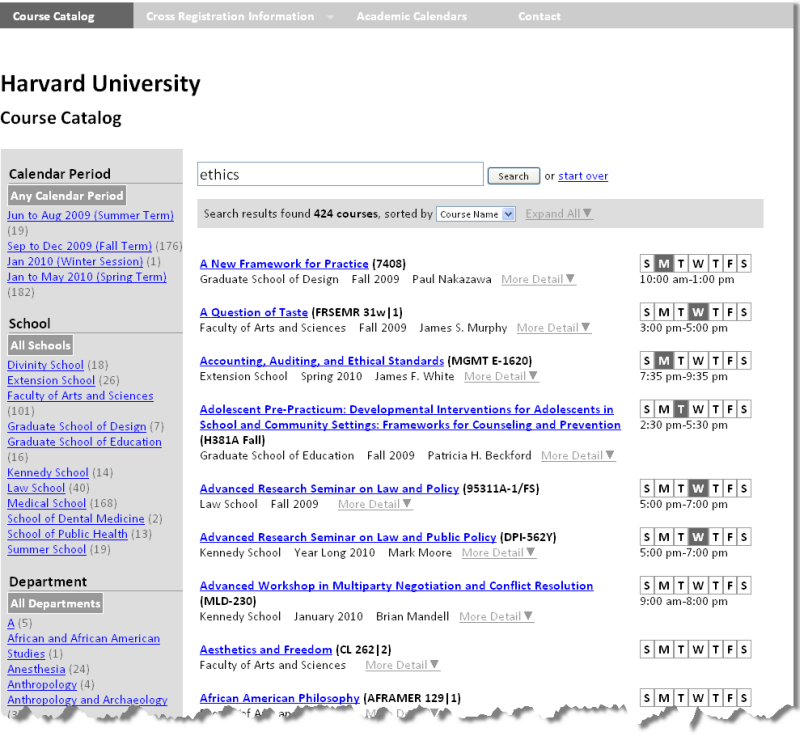

Wireframes and Sketches - "Low" to "High" Fidelity

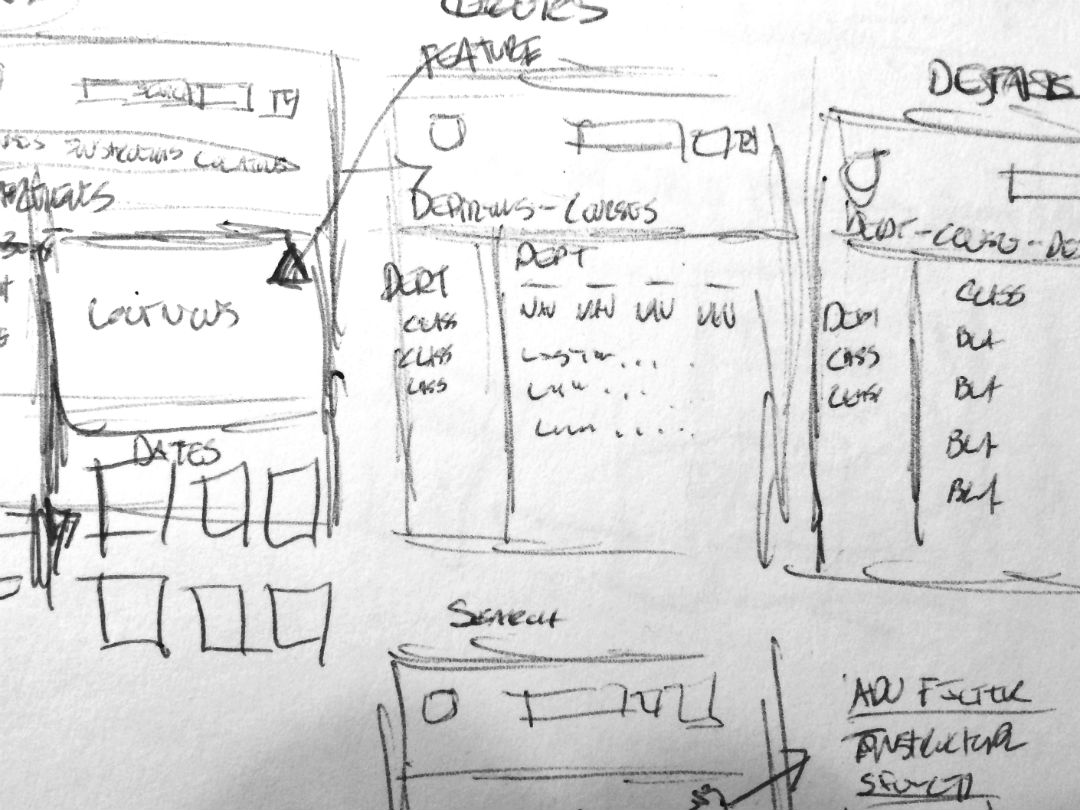

Sketches

Wireframes

Prototypes

Navigation Systems

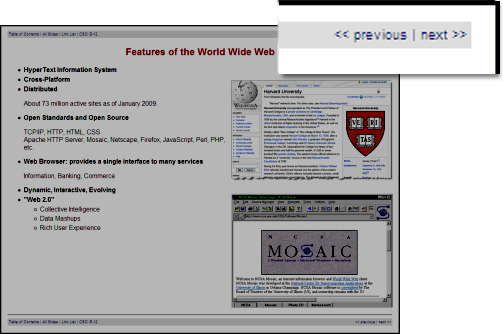

Some navigation systems illustrated

Breadcrumb, Clamshell, Tab / Horizontal List, Dropdown

Surface

F-Pattern

F-Shaped Pattern for Reading Web Content

Non-Designer's Design Book

The non-designer's design book by Robin Williams

Non-Designer's Design Book

The non-designer's design book by Robin Williams

Colors

• Non-Designer's Design Book: Chapter 7, Design with Color

Creating Color Palettes:

• paletton.com
• Adobe Color CC

Home Page -- Don't Make Me Think (Steven Krug)

• What is this?
• What do they have here?
• What can I do here?
• Why should I be here and not somewhere else?

Don't make me think

Don't make me think, revisited : a common sense approach to Web usability by Steve Krug

Three Princples of Usability

• Don't make me think.
• It doesn't matter how many times I have to click, as long as each click is a mindless, unambiguous choice.
• Get rid of half the words on each page, then get rid of half of what is left.
