Session 14 - Server-Side: HTTP and Apache Web Server Configuration

Harvard Extension School
Fall 2020

Course Web Site: https://cscie12.dce.harvard.edu/

Topics

Presentation contains 37 slides

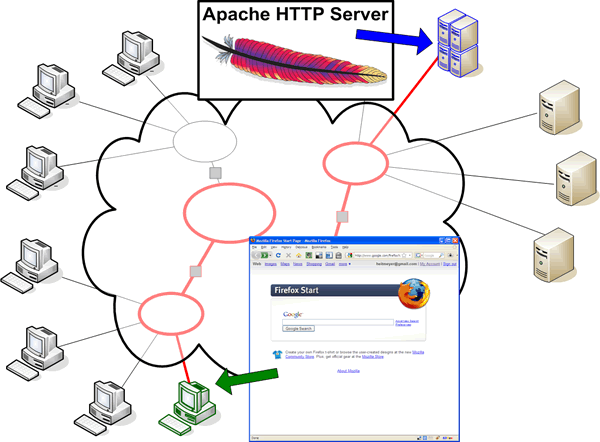

The Internet and the Web

Internet Routing

Domain Names: Top Level Domains (TLD)

TLDs are managed by the Internet Assigned Numbers Authority (IANA)

Generic: .com, .org, .edu, .gov, etc.

Country codes: .ch, .cn, .de, .uk, .us, etc.

Full listing of TLDs

Getting Your Own Domain and Hosting

Domain Name
- Buy the domain through a "registrar"
- Provide name servers
- About $10/yr
Hosting
- Shared ($7-15/mo)
- Private / Cloud

A very short list of hosting companies as a place to start.

Web Server Software

Apache HTTP Server
Microsoft IIS
nginx

Web Server Market Share

Netcraft Web Server Survey

HyperText Transfer Protocol

GET

United States National Archives
www.archives.gov

GET / HTTP/1.1
Host: www.archives.gov
User-Agent: curl/7.49.0
Accept: */*

HTTP/1.1 200 OK
Content-Type: text/html; charset=utf-8
Connection: keep-alive
Date: Thu, 30 Jul 2020 23:25:09 GMT
Content-Language: en
Set-Cookie: UUID=7efbfc41-6054-bf24-f977-24eb8d075e4e; expires=Fri, 30-Jul-2021 23:06:47 GMT; Max-Age=31536000; path=/; domain=.archives.gov; httponly
Last-Modified: Thu, 30 Jul 2020 23:06:47 GMT
Strict-Transport-Security: max-age=31536000; includeSubDomains; preload
X-Content-Type-Options: nosniff
ETag: W/"1596150407-0-gzip"
v-ttl: 2497
Cache-Control: public, max-age=60, s-maxage=180
v-cache-ttl: 2497
X-Frame-Options: SAMEORIGIN
Accept-Ranges: bytes
Vary: Cookie,Accept-Encoding
X-Cache: Miss from cloudfront
Via: 1.1 6c46ad9c24627fa8c065620a1a7a52a9.cloudfront.net (CloudFront)
X-Amz-Cf-Pop: EWR52-C1
X-Amz-Cf-Id: LqRBsWPmMMWNU4m66BY-LRfHuL1LI8Xrcd6unFAZ0VJJWWdO_I--uA==

<!DOCTYPE html>
  <!-- truncated for example -->

HTTP Overview

HTTP is Stateless

Each requested resource is a separate, independent, request to the server -- it is a stateless protocol.

HTTP Versions

W3C and Internet Engineering Task Force (IETF) oversees the Hypertext Transfer Protocol.

HTTP 1.0 (1996)
HTTP 1.1 (1999)
HTTP 2 (2014)

An HTTP Conversation

Client Request
- METHOD Resource HTTP Version
- Client Generated Headers
- Request Body
Server Response
- Status Line
- Server Generated Headers
- Data

HTTP 1.1 Methods

GET
POST
HEAD
PUT
DELETE
TRACE
OPTIONS

HTTP Response Codes

HTTP 1.1 status codes commonly seen

200 OK
301 Moved permanently
302 Moved temporarily
304 Not modified
401 Unauthorized
403 Forbidden
404 Not found
500 Internal server error

The complete list:

Common Headers

Request (Browser)

Host
User-Agent
Referer
Accept
Accept-Language
Accept-Encoding
Accept-Charset
Cookie
If-Modified-Since

Response (Server)

Last-Modified
Content-Length
Content-Type
Connection

Looking at HTTP Under the Hood

Use your browser developer tools!

HTTP Header: Host

Problem: "Infinite" domain names; finite IP addresses.

Solution: "Virtual Hosts"

Example: all of the following names map to 140.247.197.241

cscie12.dce.harvard.edu
cscis12.dce.harvard.edu
csci12.dce.harvard.edu
aopophis.dce.harvard.edu
cs12students.dce.harvard.edu

Host Header

This is required for HTTP 1.1 requests.

HEAD /http/raspberry.gif HTTP/1.1
Host: cscie12.dce.harvard.edu

HTTP/1.1 200 OK
Date: Tue, 8 Apr 2020 20:23:14 GMT
Server: Apache/2.2 (Fedora)
Last-Modified: Wed, 06 Apr 2015 19:30:42 GMT
ETag: "461fb8-348c-a0f67c80"
Accept-Ranges: bytes
Content-Length: 13452
Connection: close
Content-Type: image/gif

Connection closed by foreign host.

HTTP/2

HTTP/2
HPACK

What are the key differences to HTTP/1.x?

From the HTTP/2 FAQ:

At a high level, HTTP/2:

is binary, instead of textual
is fully multiplexed, instead of ordered and blocking
can therefore use one connection for parallelism
uses header compression to reduce overhead
allows servers to “push” responses proactively into client caches

Apache HTTP Server

Apache Software Foundation
- Apache HTTP Server Project
  - Apache 2.x
- Apache Modules
  - PHP
  - Python
  - many, many others

Apache Configuration Overview

Server Configuration (httpd.conf)
Unless you are the server administrator, you generally will not have access to this account. On the DCE systems, you do not have read or write access to this file. Server configuration is read at server start or restart.
Per Directory (.htaccess)
Certain configuration directives for Apache can be placed within per-directory.htaccess files. .htaccess file is read on a per request basis.

Scope of .htaccess files

Directives within .htaccess files apply to the directory that contains the .htaccess file and all its descendants.

Directives within the file,
/home/courses/j/h/jharvard/public_html/.htaccess
would apply to all files within and "under" the public_html directory for the user jharvard.

Directives within the file,
/home/courses/j/h/jharvard/public_html/books/.htaccess
would apply to all files within and "under" the public_html/books directory for the user jharvard.

Problems You Will Have with .htaccess files

Internal Server Error
Can't "see" the file
Incorrect Permissions

500 Internal Server Error

Problems You will encounter when using .htaccess files (Internal Server Error 500)

500 Internal Server Error
If you see begin seeing 500 Internal Server Error responses from the server after you have created or edited an .htaccess file, the most likely cause of the problem is incorrect permissions and/or an error in the directive syntax.

Permissions on the .htaccess file are not set correctly. Just like HTML and image files, the server must be able to read the .htaccess file. The simplest way to allow that is to make your .htaccess file readable by "other".

cscie12students% pwd
/home/courses/j/h/jharvard/public_html
cscie12students% ls -l .htaccess
-rw-------   1 jharvard  founder         349 Nov 27 00:03 .htaccess
cscie12students% chmod o+r .htaccess
cscie12students% ls -l ~/public_html/.htaccess
-rw----r--   1 jharvard  founder         349 Nov 27 00:03 .htaccess

Syntax Error. An error in the syntax of a directive the .htaccess file will result in a 500 Internal Server Error. In addition, correct usage of a directive that is not allowed in the .htaccess file will result in a 500 status code. Whether or not a directive is allowed depends upon the server configuration file (httpd.conf; AllowOverride) and the directive itself.

Problems You will encounter when using .htaccess files (Can't see the .htaccess file)

You can't "see" your .htaccess file.

HTTP
The web server is typically configured to deny requests for .htaccess files. For example, the file corresponding to the URL, http://cscie12.dce.harvard.edu/.htaccess exists and is readable by the Web server, but if we try to follow the link, we get a 403 Forbidden response.
UNIX
The ls command will not list files or directories that begin with a '.' (dot). In order to see the .htaccess file when you do a directory listing, use the -a (all) option:
SFTP
Sometimes your SFTP program will hide the "dot" files unless explicitly told to show them.

Apache Configuration Sections

Configuration directives can be limited by using "sections", such as

Within .htaccess

Note that only Files and FilesMatch can be used within .htaccess files.

Examples:

<Files .htaccess>
    Order allow,deny
    Deny from all
</Files>

Examples:

# deny access to any tilde backup files
<Files *~>
    Order allow,deny
    Deny from all
</Files>

Caching - Don't deliver content unnecessarily

Faster Load Times == Happier Users :)
Less Bandwidth == Lower Costs

Types of Caching

Local (user's computer)
Proxy-server

Caching Related Headers

Local cache and proxy-server cache.

If-Modified-Since
Age
Expires
Last-Modified
Cache-Control
ETag

Proxy Servers

Proxy Server

If-Modified-Since

A request for the Apache Software Foundation logo (http://apache.org/img/asf_logo.png) that is part of loading http://apache.org/foundation/
asf logo

Initial request:


GET /img/asf_logo.png HTTP/1.1
Host: apache.org
Connection: keep-alive
Pragma: no-cache
Cache-Control: no-cache
Accept: image/webp,*/*;q=0.8
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2272.118 Safari/537.36
Referer: http://apache.org/foundation/
Accept-Encoding: gzip, deflate, sdch
Accept-Language: en-US,en;q=0.8,ro;q=0.6

HTTP/1.1 200 OK
Date: Tue, 14 Apr 2015 22:40:52 GMT
Server: Apache/2.4.7 (Ubuntu)
Last-Modified: Tue, 14 Apr 2015 16:08:47 GMT
ETag: "751e-513b1721525d0"
Accept-Ranges: bytes
Content-Length: 29982
Cache-Control: max-age=3600
Expires: Tue, 14 Apr 2015 23:40:52 GMT
Keep-Alive: timeout=30, max=98
Connection: Keep-Alive
Content-Type: image/png

After expiration, if still located in local cache, browser will make a conditional request:

GET /img/asf_logo.png HTTP/1.1
Host: apache.org
Connection: keep-alive
Accept: image/webp,*/*;q=0.8
If-None-Match: "751e-513b1721525d0"
If-Modified-Since: Tue, 14 Apr 2015 16:08:47 GMT
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2272.118 Safari/537.36
Referer: http://apache.org/foundation/
Accept-Encoding: gzip, deflate, sdch
Accept-Language: en-US,en;q=0.8,ro;q=0.6

HTTP/1.1 304 Not Modified
Date: Tue, 14 Apr 2015 22:42:51 GMT
Server: Apache/2.4.7 (Ubuntu)
Connection: Keep-Alive
Keep-Alive: timeout=30, max=100
ETag: "751e-513b1721525d0"
Expires: Tue, 14 Apr 2015 23:42:51 GMT
Cache-Control: max-age=3600

Expires HTTP Header

Module mod_expires

.htaccess

ExpiresActive On

ExpiresByType text/html   A3600
# HTML expires in 1 hour

ExpiresByType image/gif   A2592000
# GIF  expires in 30 days

ExpiresByType image/jpeg  A2592000
# JPEG expires in 30 days

ExpiresByType image/png   A2592000
# PNG  expires in 30 days

# types not specified
ExpiresDefault "now plus 1 day"
#  expires in 1 day

Or, expire based upon modification time of document:

ExpiresActive On
ExpiresByType text/html   M86400
# HTML expires 1 day after it was last modified
ExpiresDefault M86400

Do not cache

If you do not want your page cached, set these HTTP response headers:

Cache-control: no-cache
Pragma: no-cache
Expires: <set to now>

In .htaccess in Apache, this would translate to:

ExpiresDefault "now"
Header set Pragma "no-cache"

Minify and Compress Content

Fewer bytes == faster load time
Happier Users :)
Less Bandwidth

Compress Content

mod_deflate compresses content before sending to web browser.

Simple use:

AddOutputFilterByType DEFLATE text/html
AddOutputFilterByType DEFLATE text/css
AddOutputFilterByType DEFLATE text/plain
AddOutputFilterByType DEFLATE text/xml
AddOutputFilterByType DEFLATE text/css
AddOutputFilterByType DEFLATE application/javascript

Does Compressing Help?

70 to 75% reduction for text files (markup, CSS, non-minified JS)
50% reduction for 'minified' JS

Harvard Summer School CSCI Course Listing

70% smaller for compressed files
27% smaller for total page weight

csci hss

firebug - page weight is 172 KB

Savings with Apache DEFLATE output filter

Friendly Errors

Apache Default "Not Found" 404 document:
404

"Not Found" 404 for Whitehouse
404 Not Found for Whitehouse

"Not Found" 404 for Whitehouse
404 Not Found for Harvard University

Custom Error Documents

.htaccess

ErrorDocument 401 /~jharvard/error/status401.html
ErrorDocument 403 /~jharvard/error/status403.html
ErrorDocument 404 /~jharvard/error/status404.html

Friendly Ways to Get There

Short URLs
Memorable URLs
Don't break old URLs

HTTP Redirect

Publish "clean" URLs, and redirect
Site reorganization changes URL -- redirect old to new

Redirect
Rewrite
Meta http-equiv refresh
URL shortener services

Redirecting Requests

HTTP Status Codes:
301 Moved permanently
302 Moved temporarily

Redirecting client requests can be very useful:

URL moves to a new location
- resource removed
- site structure is reorganized
Provide "friendly" URLs to advertise, publish, or refer to foot-long URLs.

Redirect

Redirect directive

For cscie12.dce.harvard.edu the .htaccess file contains:

Redirect 302 /syllabus    https://harvard.instructure.com/courses/1812/assignments/syllabus

Try it:

http://cscie12.dce.harvard.edu/syllabus

Rewrite

mod_rewrite uses regular expressions to match on a pattern and rewrite incoming URLs to a new URL location.

Using mod_rewrite from within `.htaccess`

If you use RewriteRule from within an .htaccess files, you must use the RewriteBase directive.
See: http://httpd.apache.org/docs/current/mod/mod_rewrite.html#rewritebase

Example - Make Simple Links Instead of Complex Ones

Context: Parks and Recreation class offered and how to easily link directly to the class

Park and Rec system:
https://webtrac.littletonrec.com/wbwsc/webtrac.wsc/wbsearch.html

Link I can use with Rewrite rule
http://littletontrack.org/lpr-303107

RewriteEngine On
RewriteBase /
RewriteRule ^lpr-(.*)$ https://webtrac.littletonrec.com/wbwsc/webtrac.wsc/wbsearch.html?per=10&xxsearch=yes&xxdispmap=no+&xxmulti-list=&xxmulti-lbls=&xxrowid=&xxmod=ar&xxactivitynumber=$1&xxage=&xxgrade=&xxkeyword=&xxkeywordoption=N&xxtype=&xxcategory=&xxsortoption=ActivityNumber&xxdisplayoption=D&xxsubmit=Search

Example: Create Links that can always point to the correct place

Road Race Registration is done through a 3rd party service, SignMeUp

Redirect  /registration https://www.signmeup.com/site/reg/register.aspx?fid=B42VRH7

Redirect /map http://maps.google.com/maps/ms?ie=UTF8&hl=en&msa=0&msid=101999702593116464805.00046f1a27a9feb5aacaf&ll=42.52946,-71.485934&spn=0.018975,0.018239&z=15

URL Shortener Services

bitly.com
and others...

Session 14 - Server-Side: HTTP and Apache Web Server Configuration

Topics

The Internet and the Web

Domain Names: Top Level Domains (TLD)

Getting Your Own Domain and Hosting

Web Server Software

Web Server Market Share

HyperText Transfer Protocol

GET

HTTP Overview

HTTP is Stateless

HTTP Versions

An HTTP Conversation

HTTP 1.1 Methods

HTTP Response Codes

HTTP 1.1 status codes commonly seen

Common Headers

Request (Browser)

Response (Server)

Looking at HTTP Under the Hood

HTTP Header: Host

Host Header

HTTP/2

What are the key differences to HTTP/1.x?

Apache HTTP Server

Apache Configuration Overview

Scope of .htaccess files

Problems You Will Have with .htaccess files

500 Internal Server Error

Problems You will encounter when using .htaccess files (Internal Server Error 500)

Problems You will encounter when using .htaccess files (Can't see the .htaccess file)

Apache Configuration Sections

Within .htaccess

Caching - Don't deliver content unnecessarily

Types of Caching

Caching Related Headers

Proxy Servers

If-Modified-Since

Expires HTTP Header

Do not cache

Minify and Compress Content

Compress Content

Does Compressing Help?

Friendly Errors

Custom Error Documents

Friendly Ways to Get There

HTTP Redirect

Redirecting Requests

Redirect

Rewrite

Using mod_rewrite from within .htaccess

Example - Make Simple Links Instead of Complex Ones

Example: Create Links that can always point to the correct place

URL Shortener Services

Using mod_rewrite from within `.htaccess`
